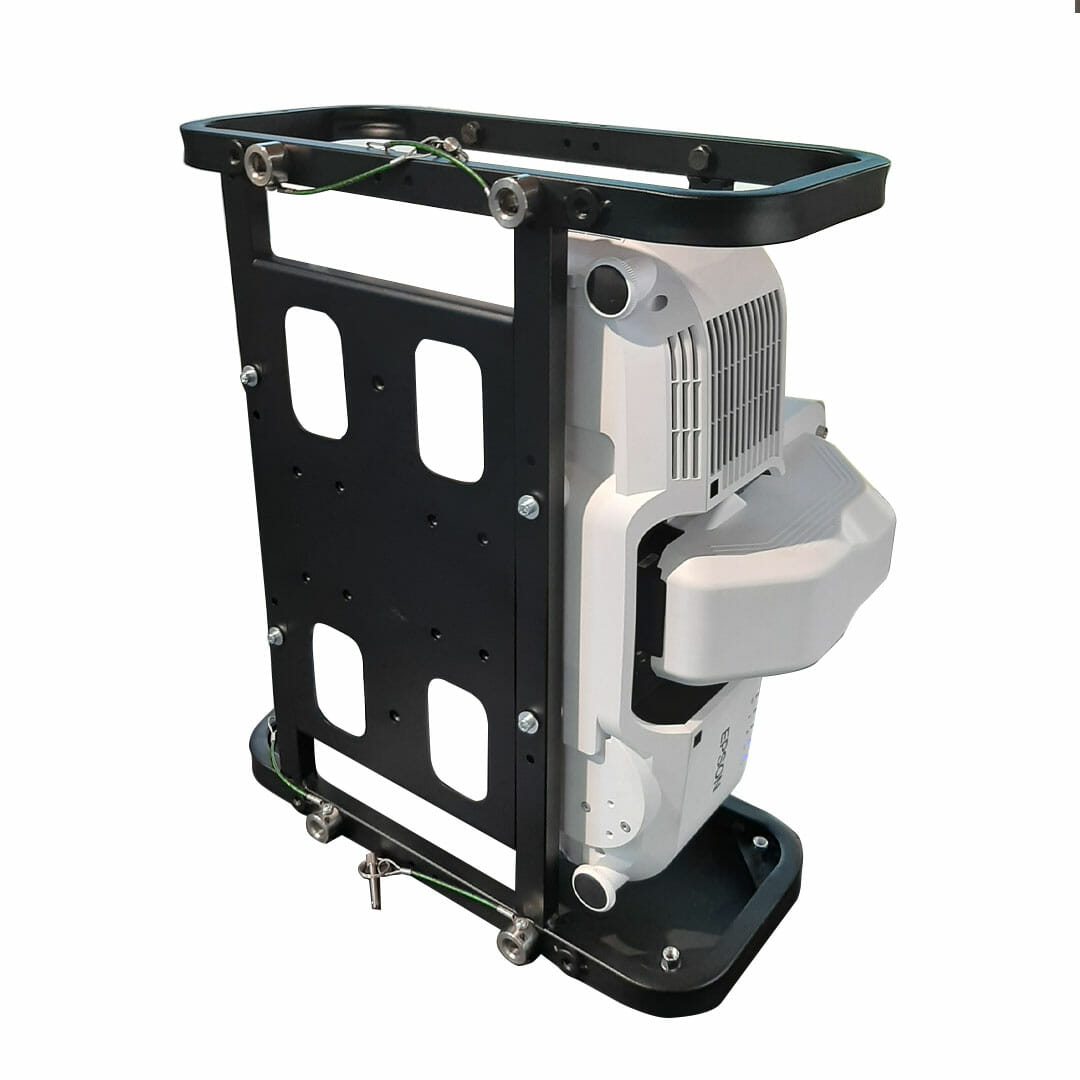

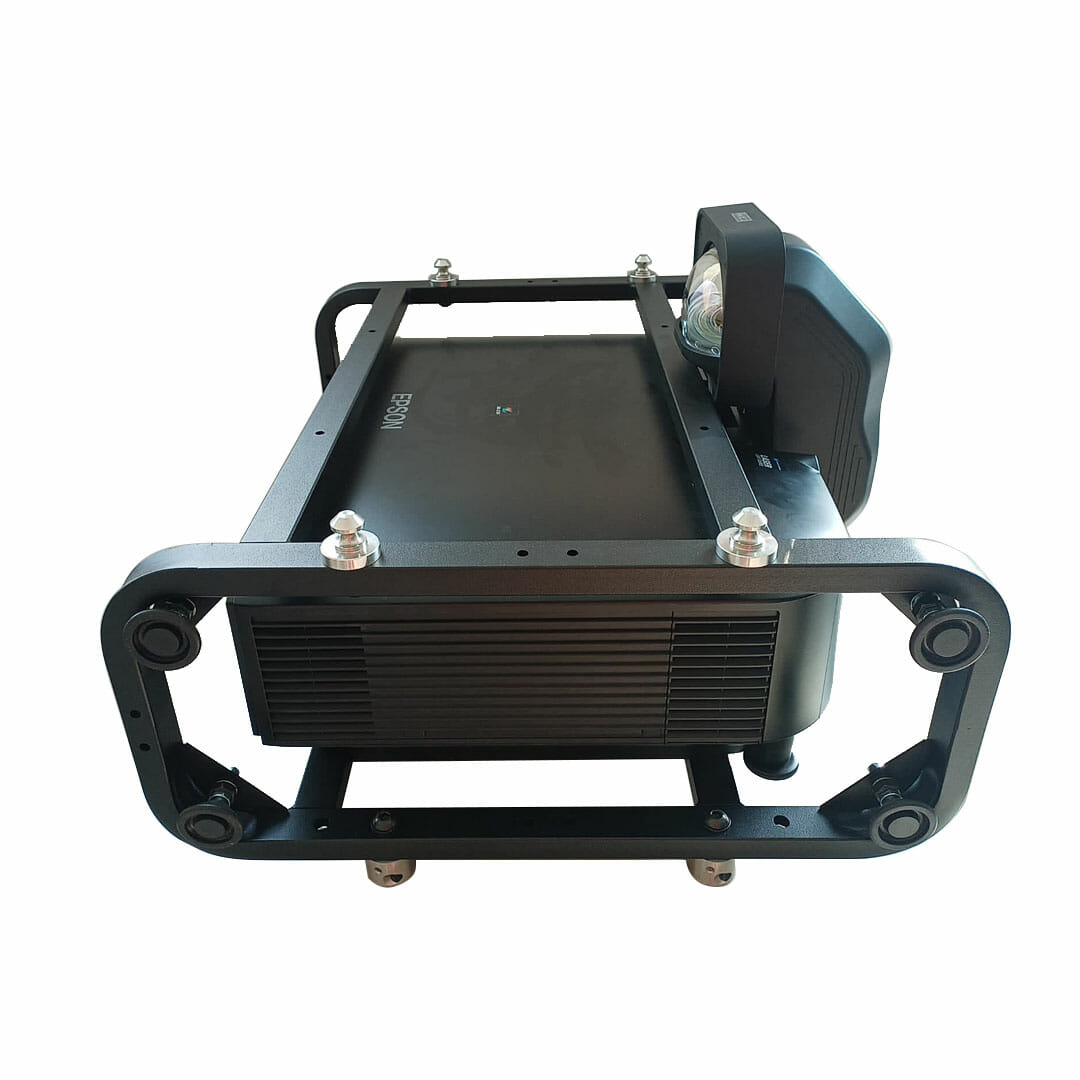

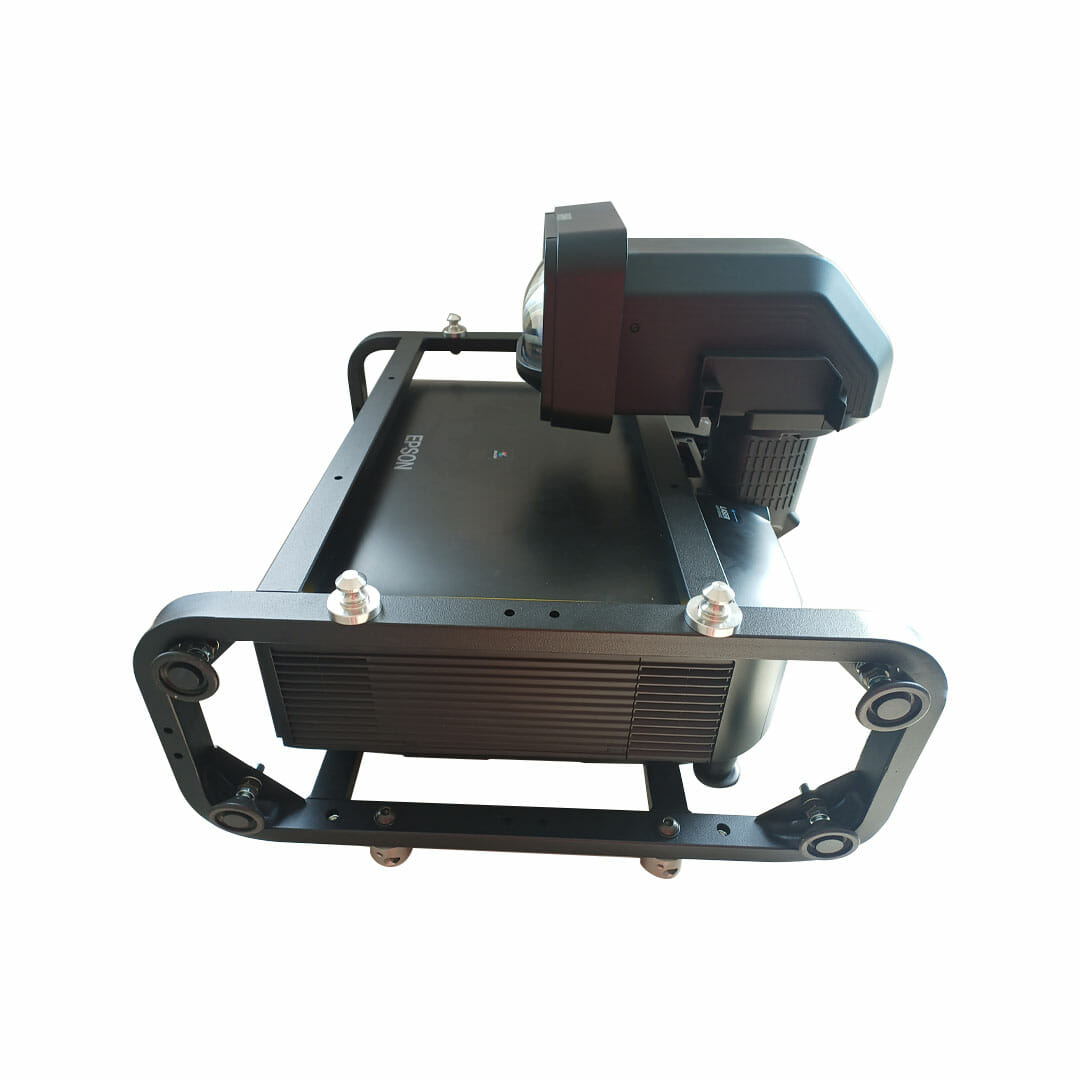

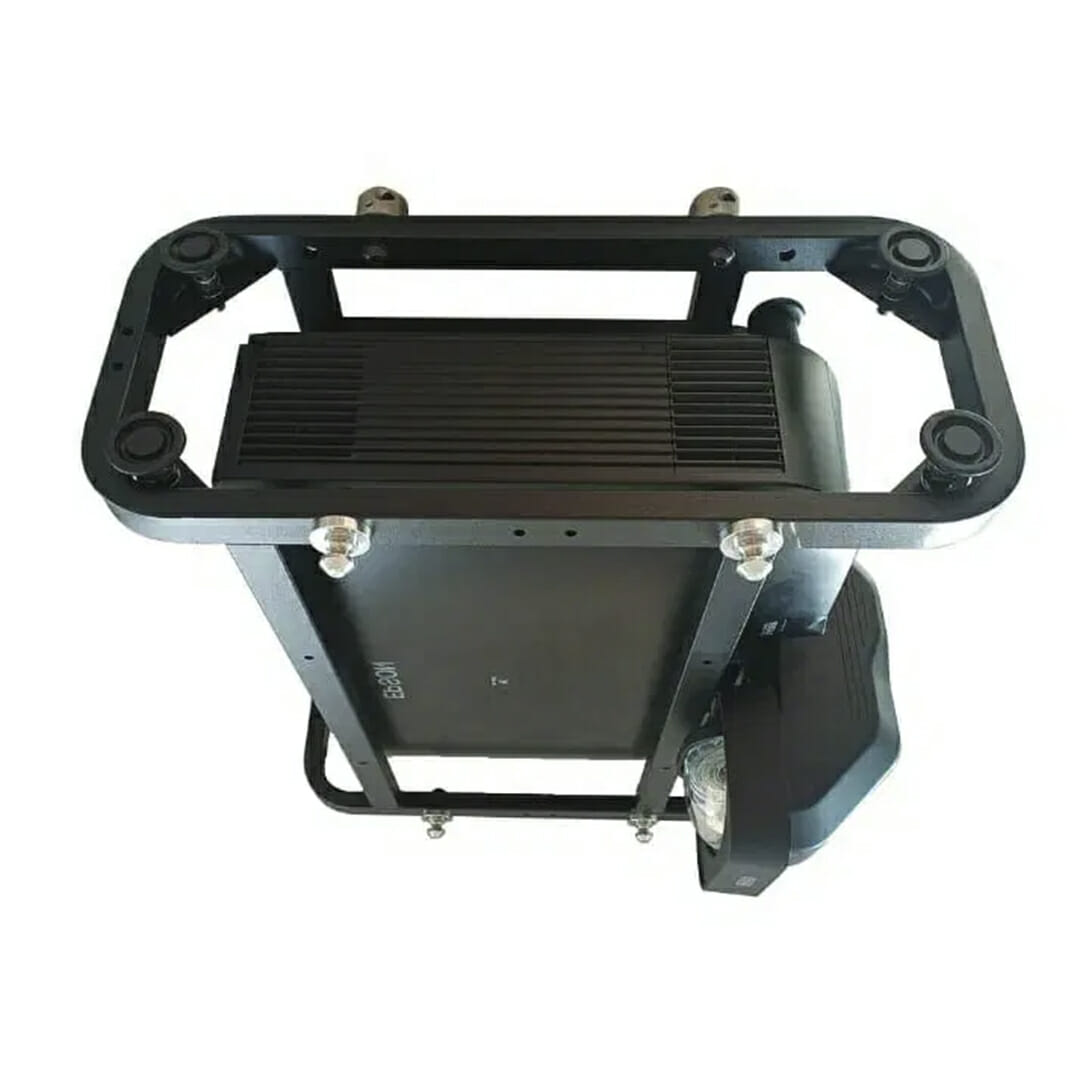

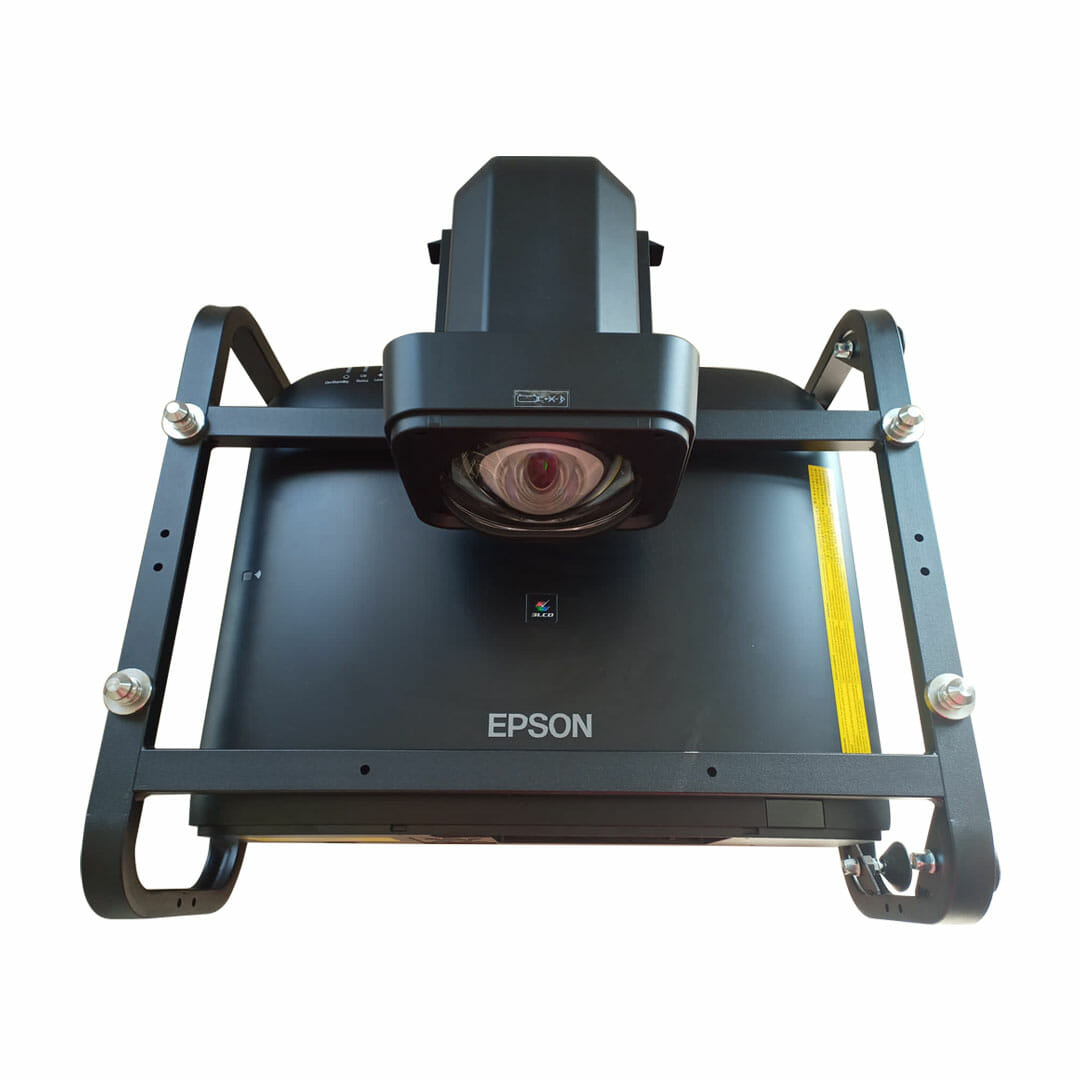

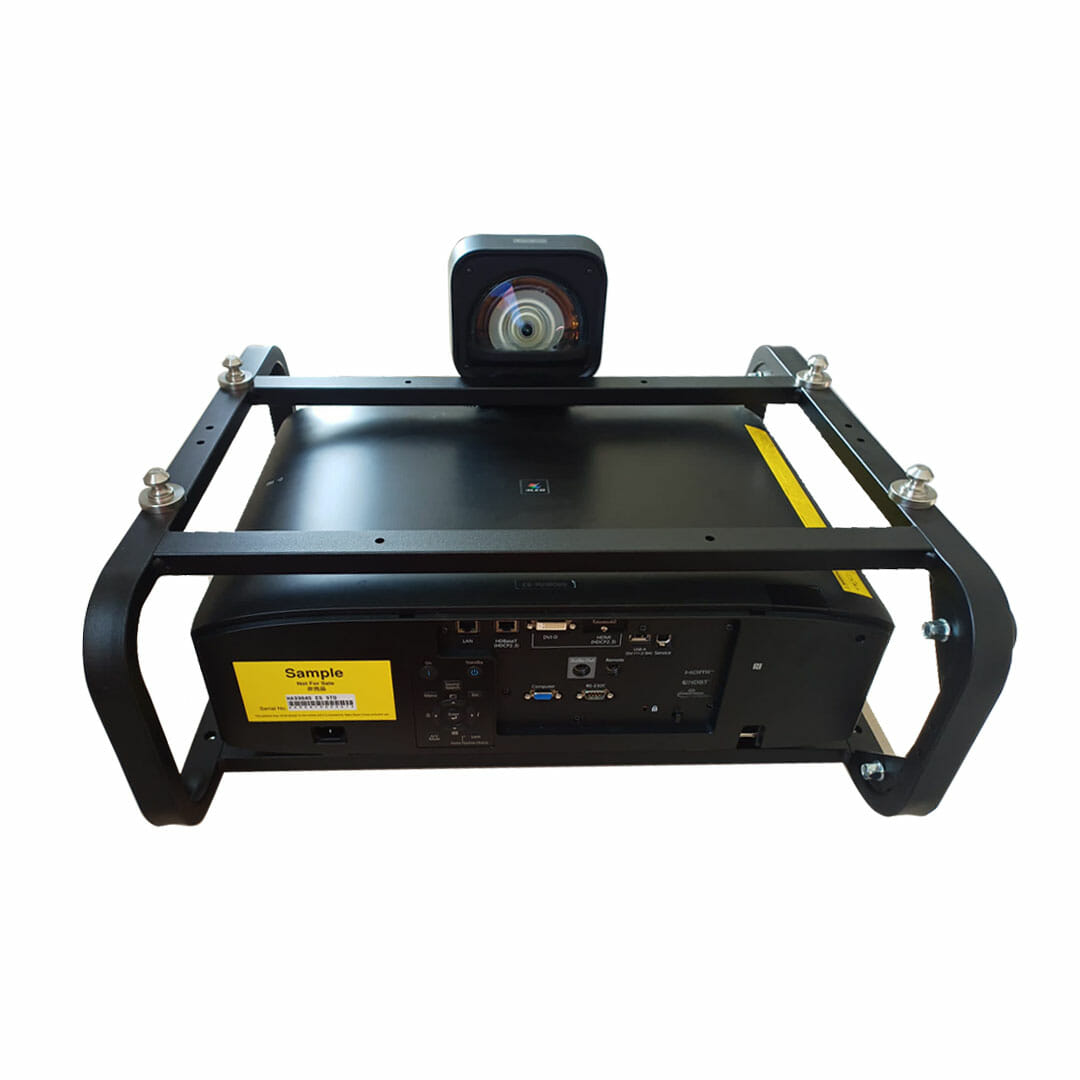

MATRIX ALFA – frame for EPSON video projectors
It is a fully welded structure that is made up of iron pipes and sheets. This frame is ideal for:
- The protection of the projector: the tubes protect it in all directions from possible impacts
- The manageability of the structure: given by its ability to be easily grasped, moved and placed on the ground (even laterally)
- The PROJECTION (1) and INSTALLATION (2) in the main required configurations.
- Equipped with a VERTICAL, HORIZONTAL, AUTOSTACKING STACKING system.
*Compatibility with projectors: EPSON: EB-PU100x, EB-PU2010
TYPES OF PROJECTION (through special accessories):
Landscape, Portrait, Floor.
VERTICAL STACKING:
Possibility of stacking 2 or 3 cages on top of each other:
For ground installations approved for up to 3 cages
For ceiling installations: up to 2 cages.
TYPES OF INSTALLATION (using special accessories):
Ceiling, wall, floor.
HORIZONTAL STACKING:
it is possible to approach and fix more than one MATRIX together, so as to have a series of projectors arranged horizontally and perfectly parallel.
These 2 stackings combined together give the possibility to create “arrays” of projectors fixed together.
Autostacking
A single cage allows the fixing of 2 projectors one above the other.
The MATRIX allows you to choose the most appropriate level of micro-adjustment for the specific installation thanks to its innovative modular system that allows you to use a wide range of accessories and customizations together.
The main options compatible with the MATRIX and their functions are:
- 22627 – ATTACK on americana landscape or floor
- 22628 – ATTACK on American portrait
- 21400 – KITE: Microregulation of the MATRIX;
- 21800 – SHARK: Support inclination up to 45 ° (with 5 ° steps);
- 22100 – ROTATION: 360 ° rotation;
- 21500 – ARM: Installation: wall, ceiling or American. Projection: landscape, floor portrait
- 20760 – CEILING: Ceiling installation for landscape projection;
- 22740 – RAIL: Side or front / back scrolling with micro adjustment (useful for focusing);
- TELESCOPIC BARS: Ceiling attachment with extensions of various sizes;
IMQ certification:: EN 62368-1:2014+A11:2017 clause 8.7
Compatibility: Even with third-party cages
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Material | Iron |
|---|---|
| pipe section | 30×20 mm |
| Color | Black |
| Treatments | Embossed powder coated |
| attachment thread | M8 |
| electrical insulation projector | YES |
| packaging | 560 x 655 _ h300 [mm] |
COMPATIBLE ACCESSORIES
*subject to compatibility check
MATRIX ACCESSORIES
*subject to compatibility check
MATRIX TILTING SYSTEM ACCESSORIES
*subject to compatibility check
