P/N: 23400

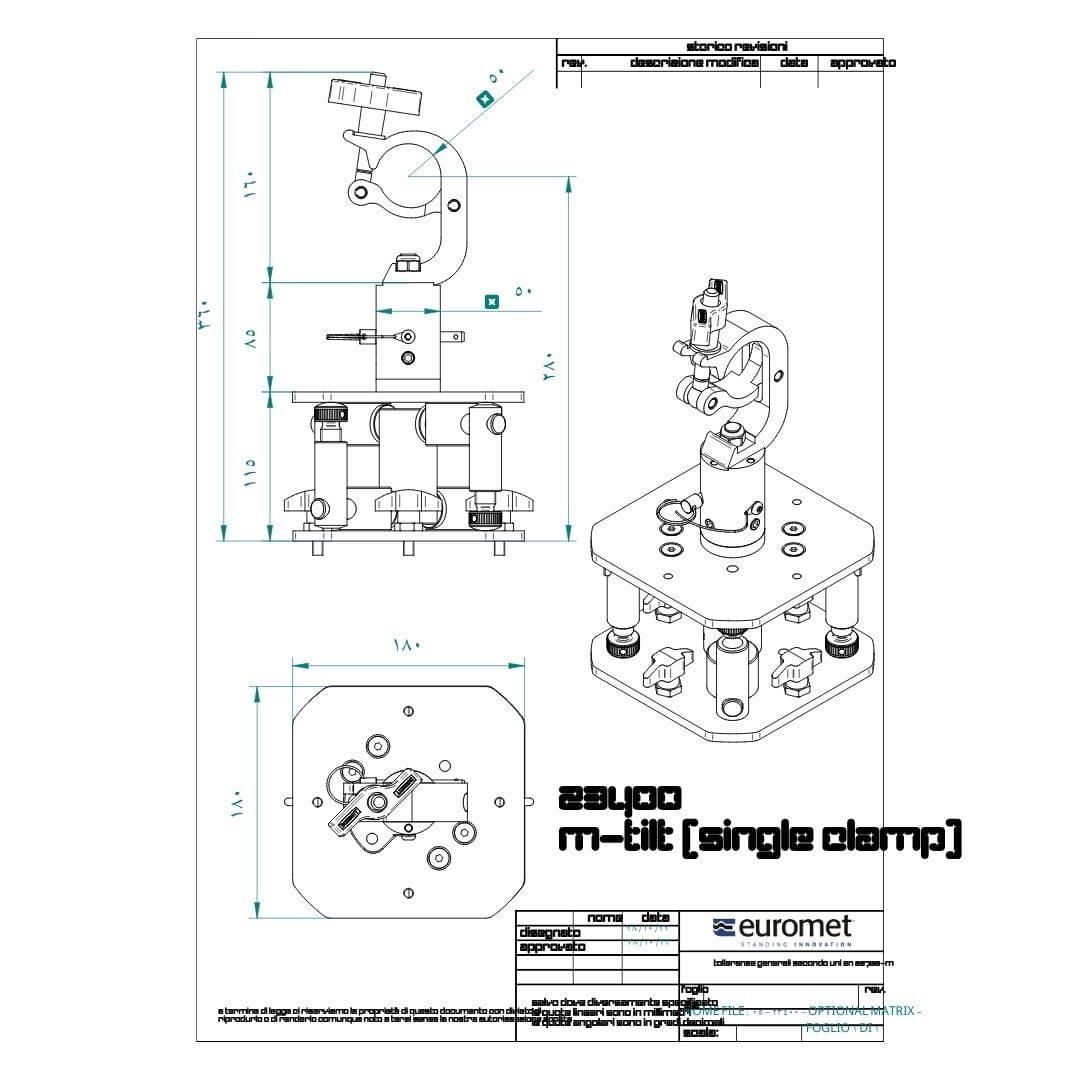

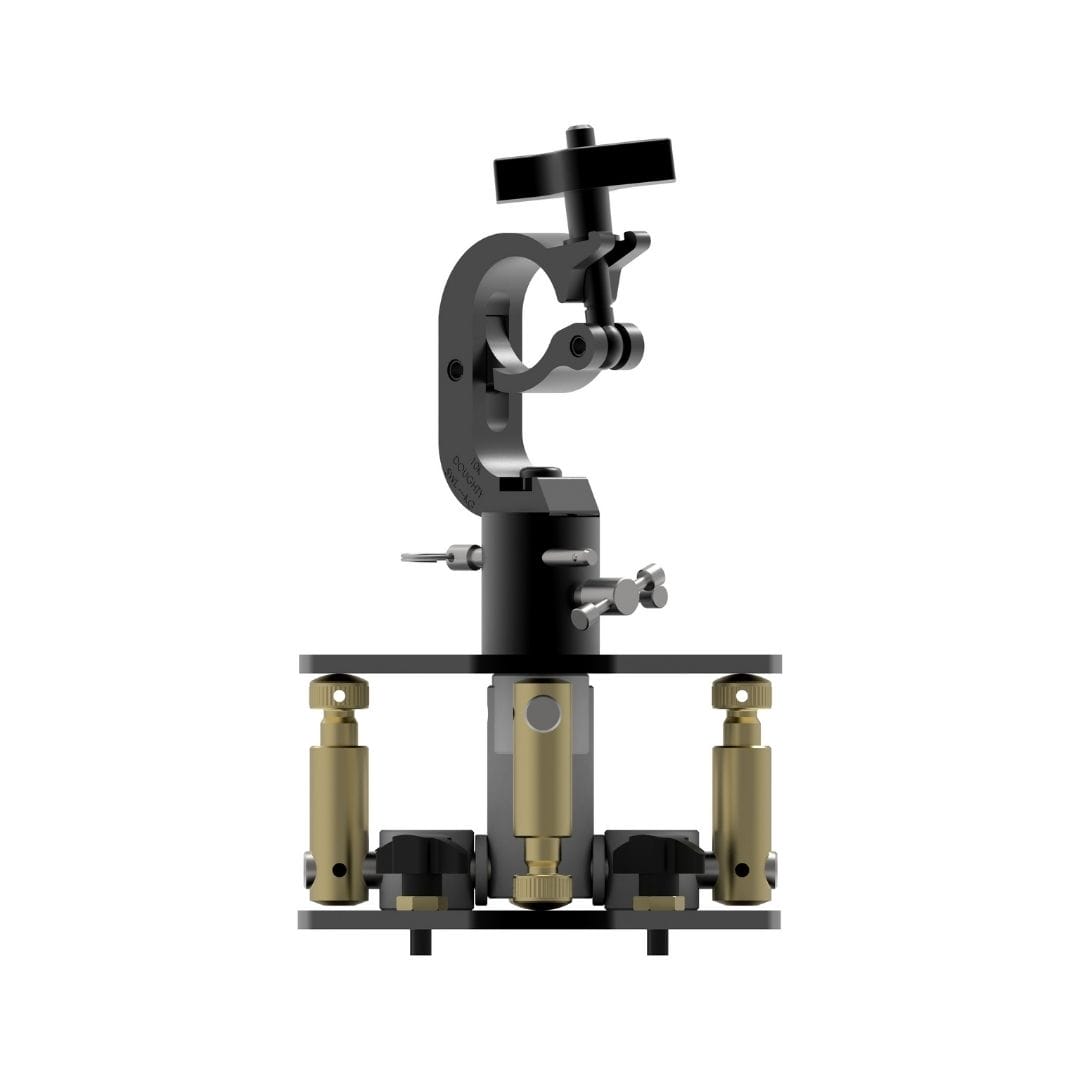

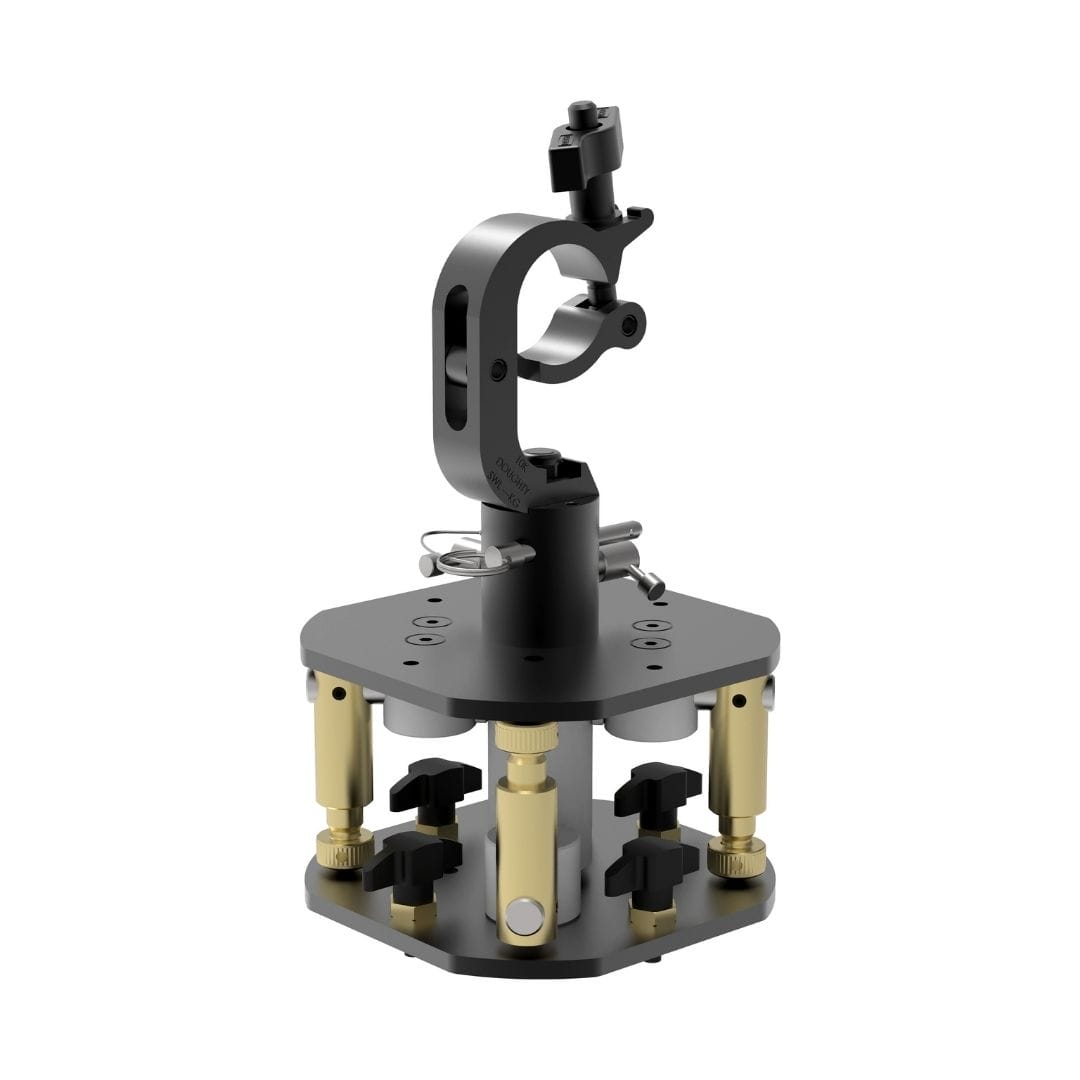

M TILT is a support system enabling cage-to-truss fastening with an aliscaf (clamp) and micrometric adjustment on the 3 Cartesian axes and 360° rotation to be added to MATRIX cages.
All three adjusting options are very precise (and can be checked with threaded pins) and the system is equipped with safety locks to fasten the desired position.

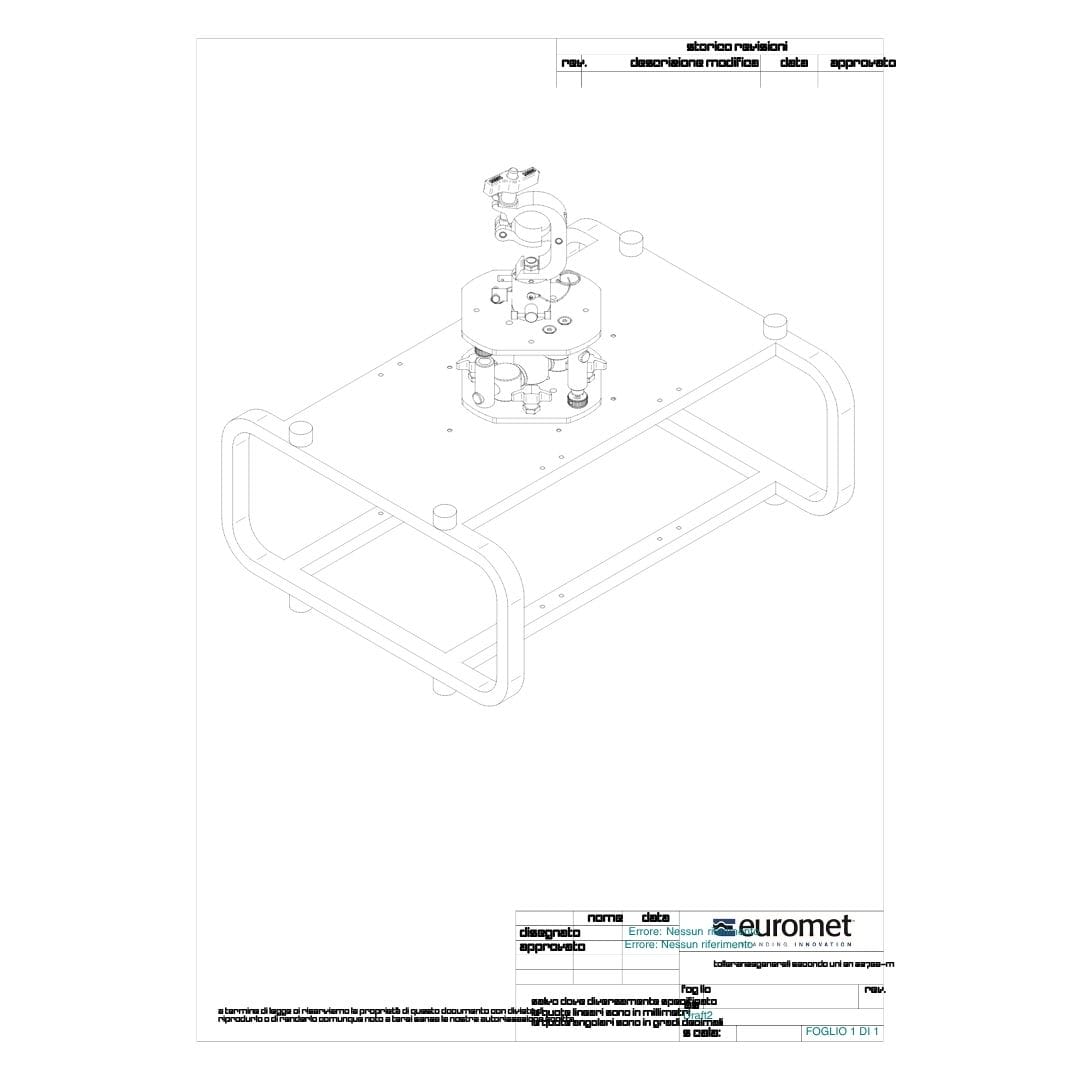

Thanks to its complete rotation and the wide tilt angles, it enables pre-emptive orientation when used together with the cage – also for complex installations with unpractical fastening positions or in case of special tilted projections. After fastening the truss system is then possible to calibrate the wall-projector more precisely.
The M TILT fastening system is extremely simple, as thanks to the patented no-loose screw system it does not require any tool, but it can be safely fastened manually.
Compatibility: all EUROMET products with standard connection
Certification IMQ: EN 62368-1:2014+A11:2017 clause 8.7
Every EUROMET product is manufactured in conformity with regulatory standards CE, regarding IEC 60065 paragraph 19 and IEC 60950-1 paragraph 4.2.1, inherant to the security of suspended loads and anti-tipping for monitor supports.
