Portrait bar

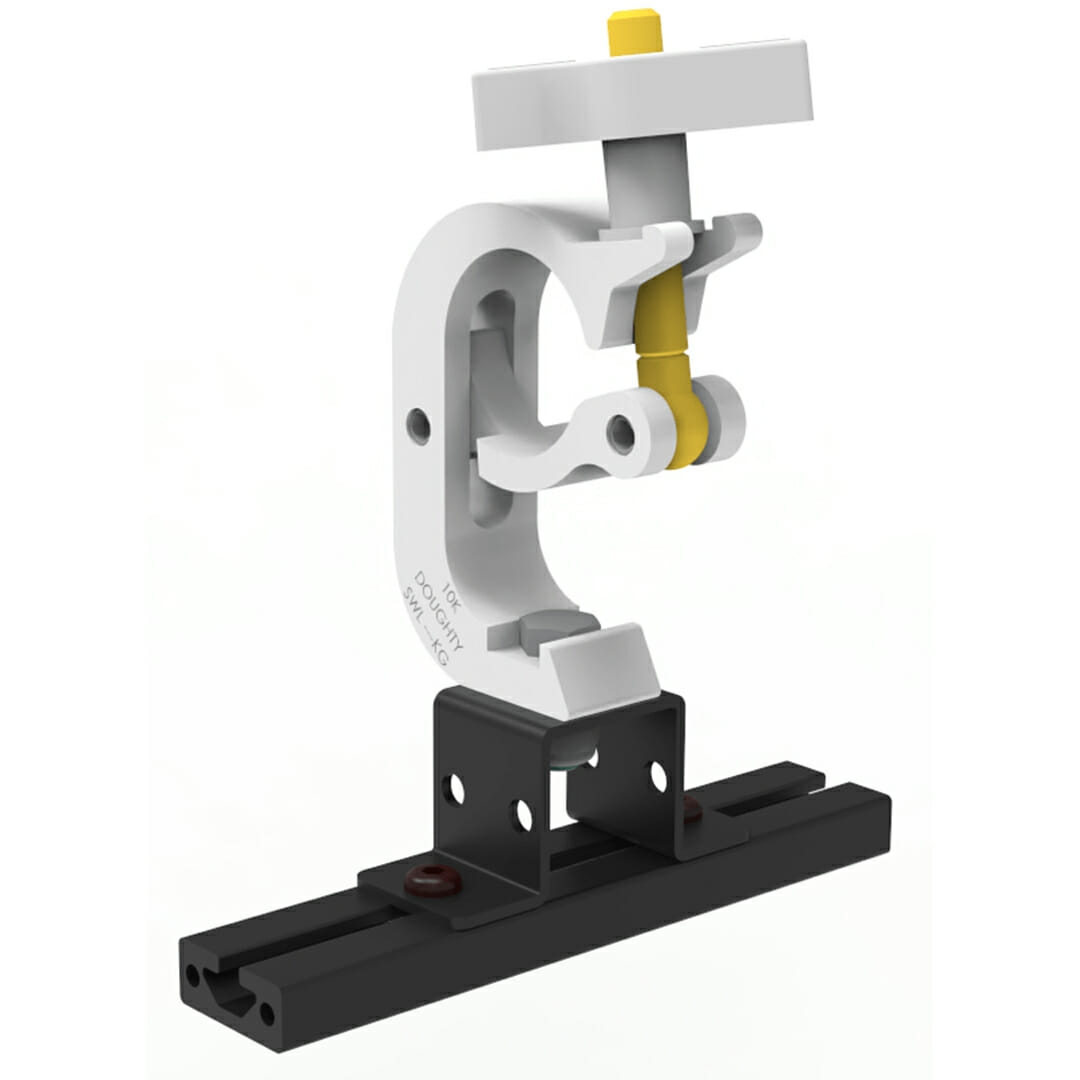

Aluminium bar in which 1 Clamp slides, which can be fastened to the SIDE of the MATRIX cage (compatible with both ALFA and BETA), while it can be fixed to a VERTICAL or HORIZONTAL truss.

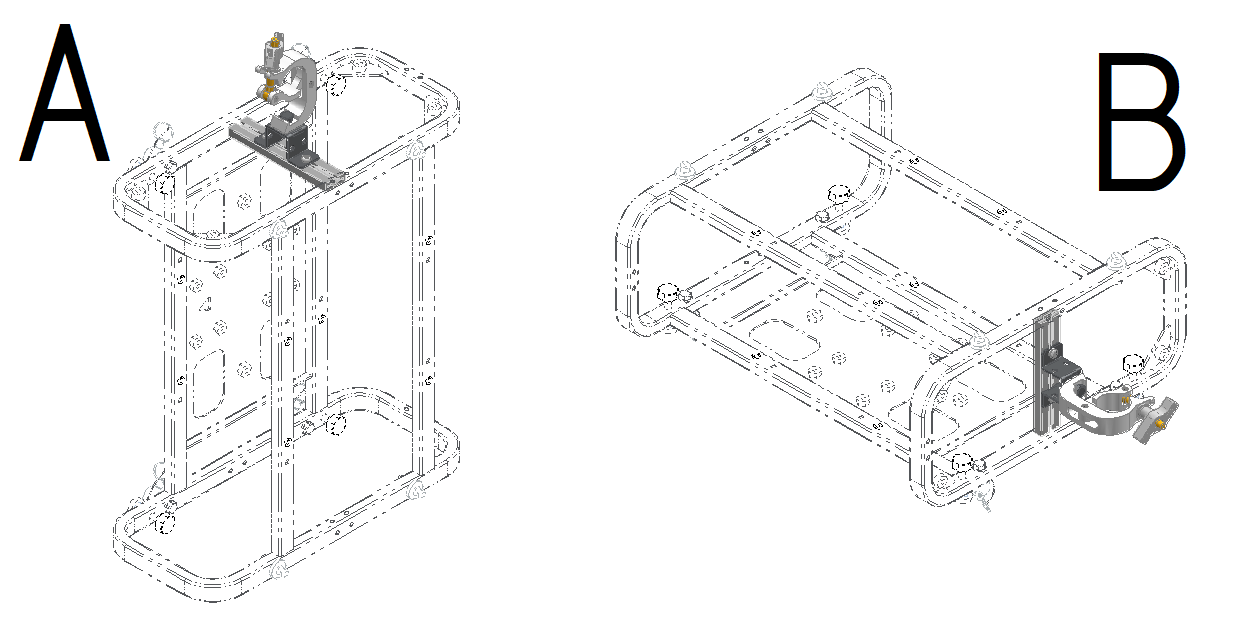

There are two main cases when looking at the graph:
- Horizontal truss – portrait projection;
- Vertical truss – landscape projection
Clamp is included and is equipped with a facilitated truss fastening system.
*Compatible with cages Matrix Alfa 22000; Matrix Beta 22500
Certification IMQ: EN 62368-1:2014+A11:2017 clause 8.7
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Installation | Truss-mounted cage |
|---|---|
| Mode | Landscape, Portait |
| Material | Iron – Aluminum |
| Treatments | Powder coated |
| Color | Silver, Black |
| clamp fixing to truss | Ø 48 – 51 mm |
| SWL (SAFE WORKLOAD) | 250 kg |
| clamp fixing screw | M12 |

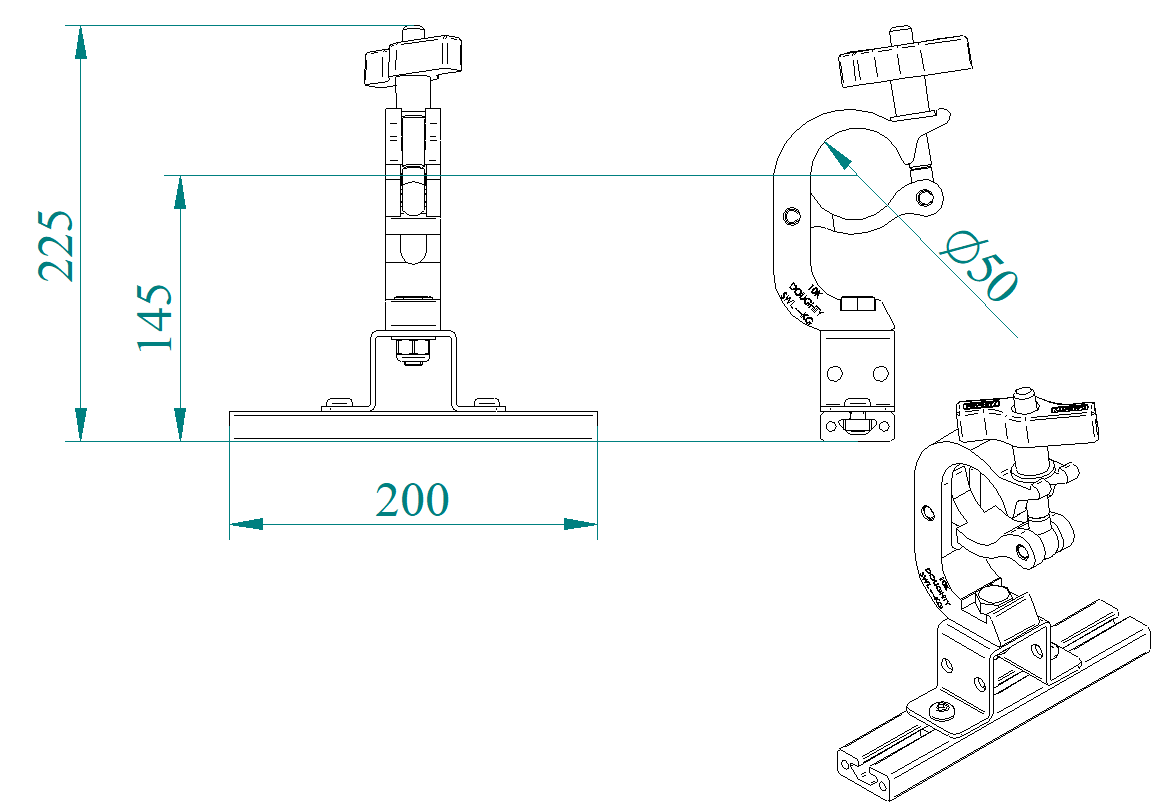

| Dimension | 200 x 90 _ 225 [mm] |
| packaging | 220 x 110 _ h245 |
