Advanced Kalibration Systems
Arakno adapter

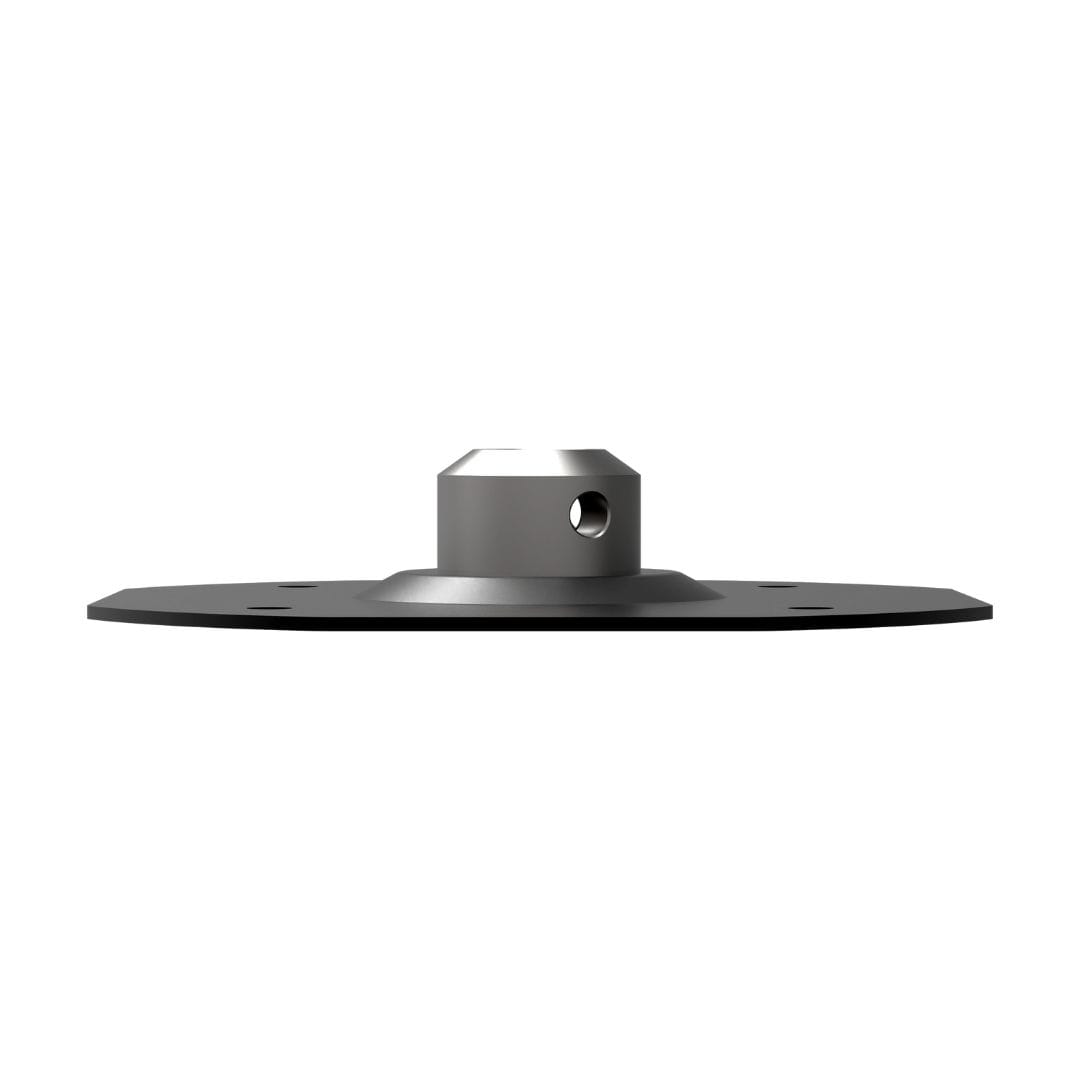

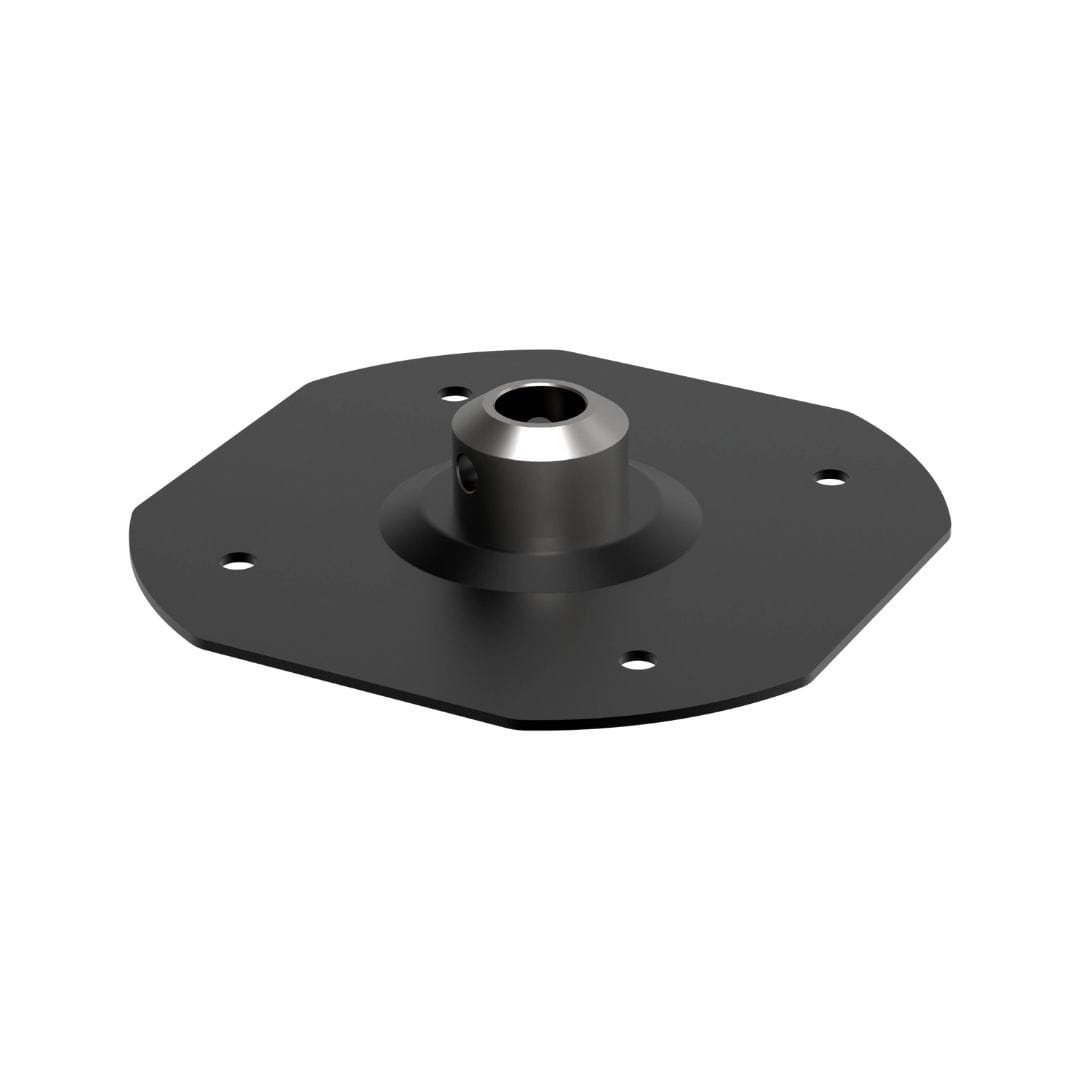

This accessory item consists of a domed plate with a standard EUROMET coupling and, on the other side, a coupling from the ARAKNO range. This means that ARAKNO products are compatible with all other products with a standard coupling.
It therefore allows 360° rotation (like the 22100), but compared to this product, it is recommended for installations with low loads or less precision. However, being less expensive, it can be used for applications where a more cost-effective solution is required.
NB: This product is fitted with an Arakno FEMALE coupling which means it is ONLY compatible with Arakno MALE products; alternatively, you can add the optional Arakno (14188) to convert your coupling from female to male.
Compatibility: all EUROMET products with standard connection and all ARAKNO products.
Certification IMQ: EN 62368-1:2014+A11:2017 clause 8.7
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| installation | Hanging cage, Support system to the ceiling |
|---|---|
| Mode | Landscape |
| Material | Iron |
| Treatments | Powder coated |
| Color | Silver, Black |
| compatible with Arakno accessories | YES |
| standard attachment | YES |

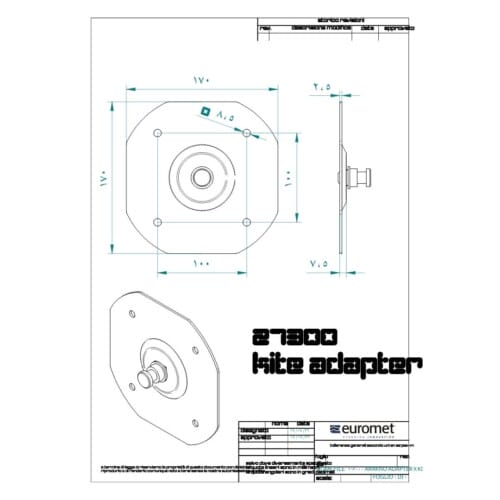

| Dimension | 170 x 170 _ 30 |
| packaging | 190 x 190 _ h60 [mm] |
