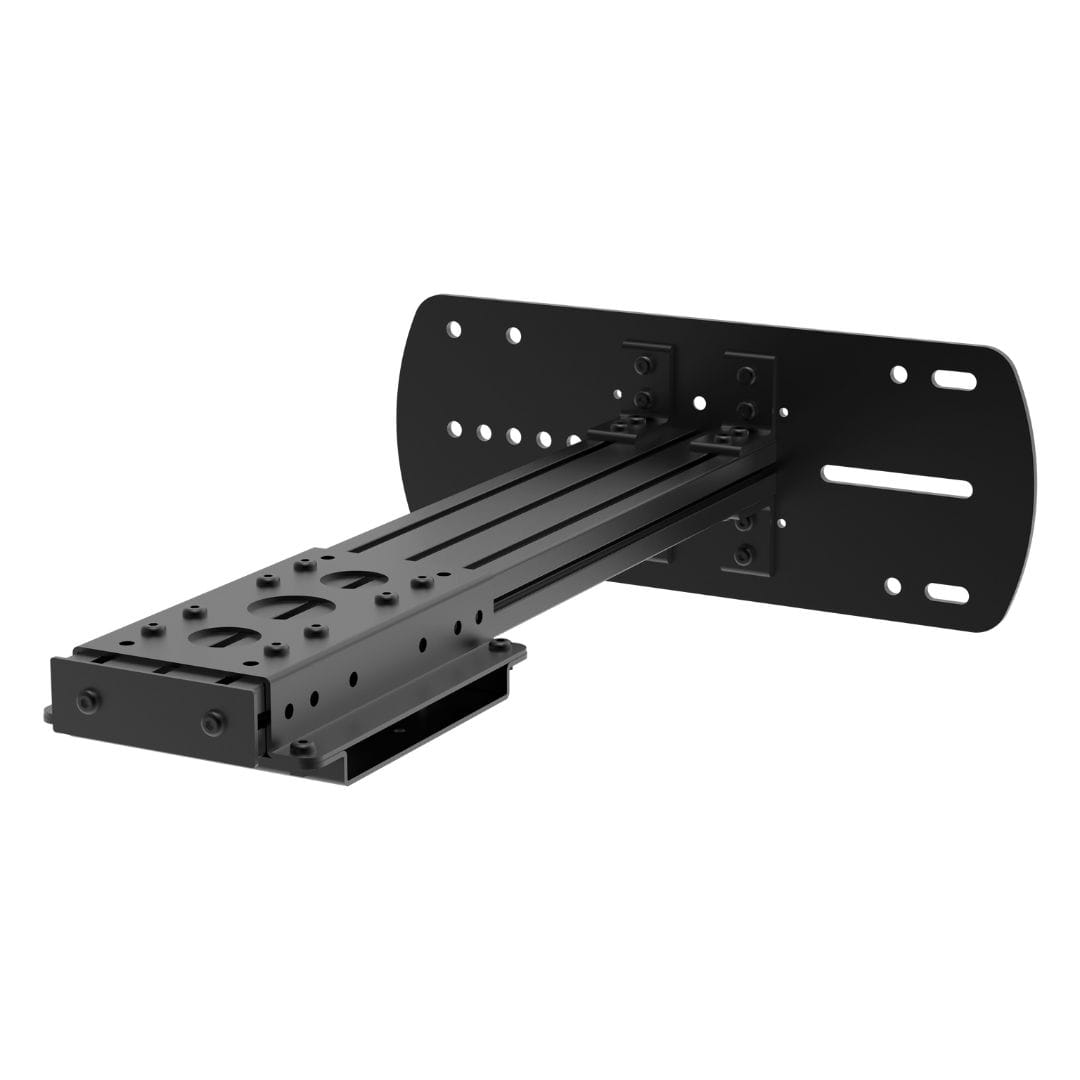

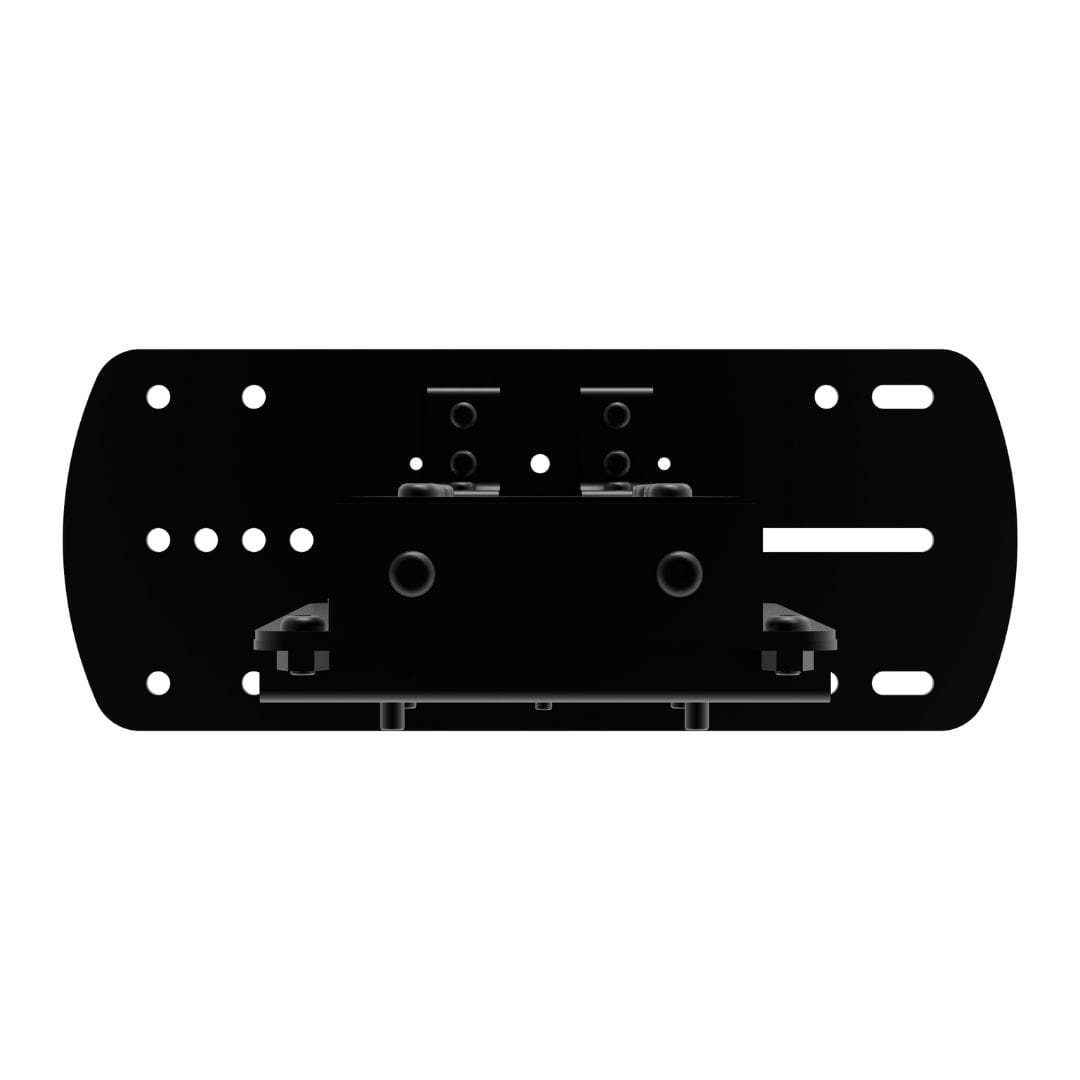

Arm Turn – Black
Wall or truss mount arm for multi-directional orientation, featuring a 360° rotation system.

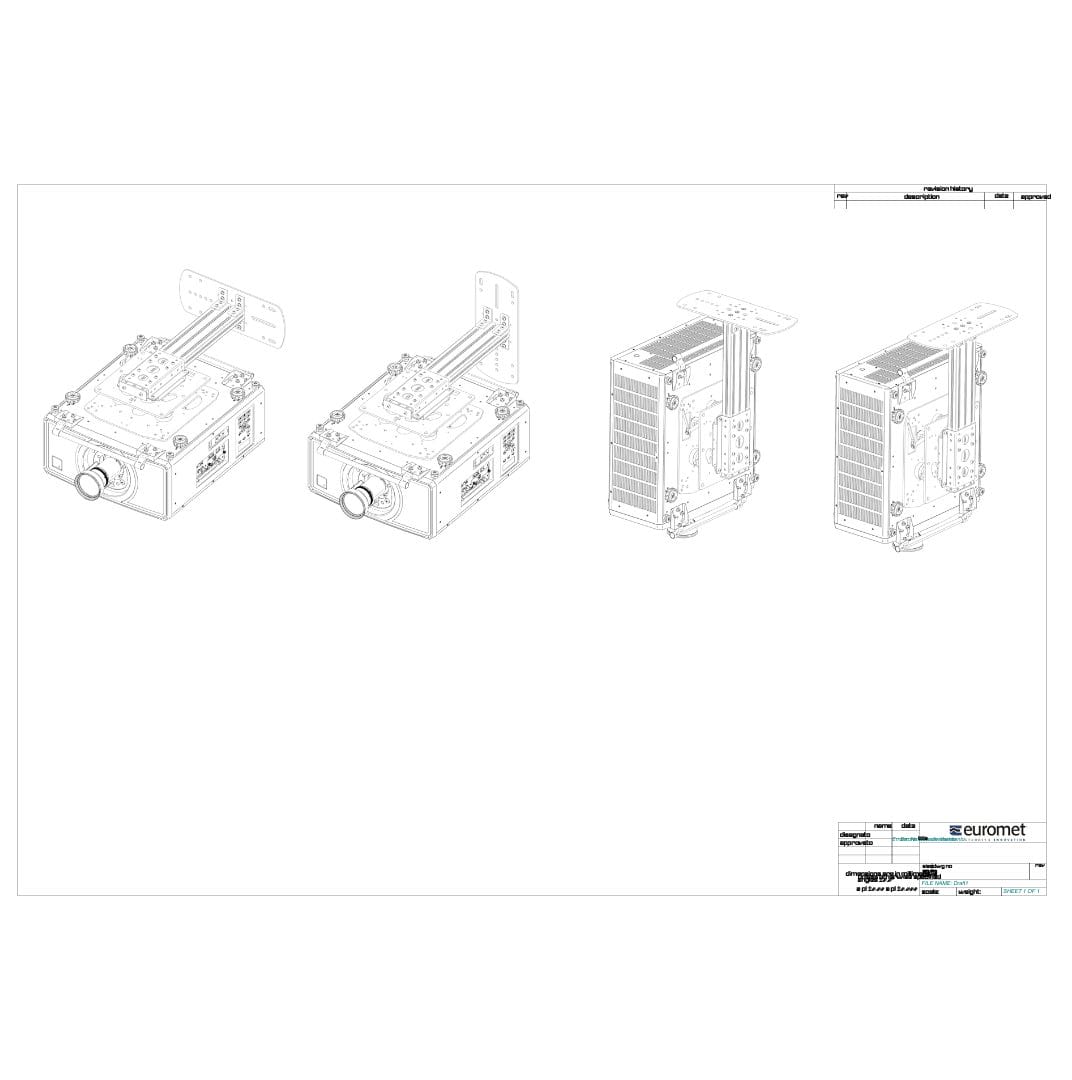

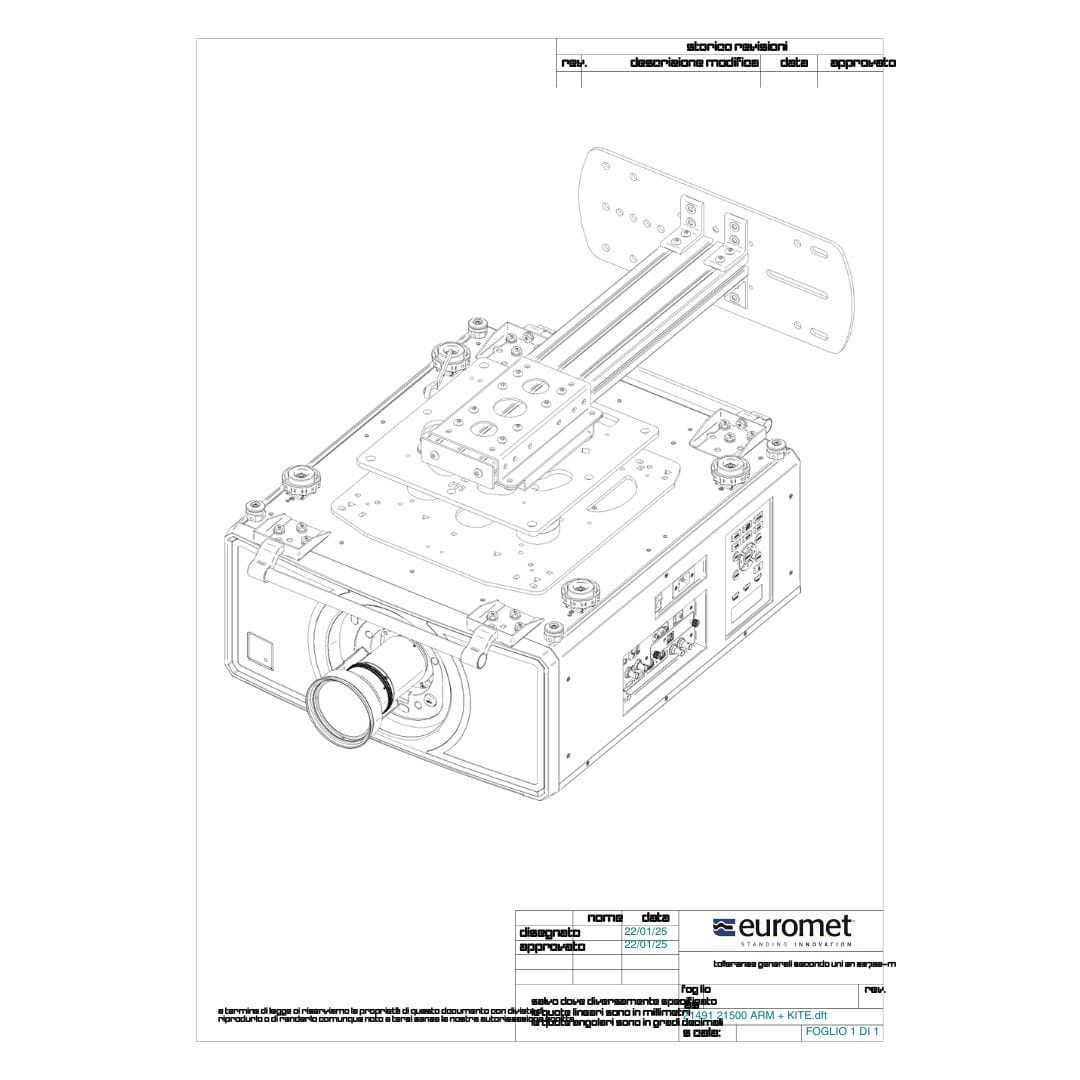

The Arm Turn mount allows the projector to be ceiling, wall, or truss-mounted, orienting it in any direction. For truss mounting, the clamps can be freely positioned at various points, provided they have an M10 hole or thread.

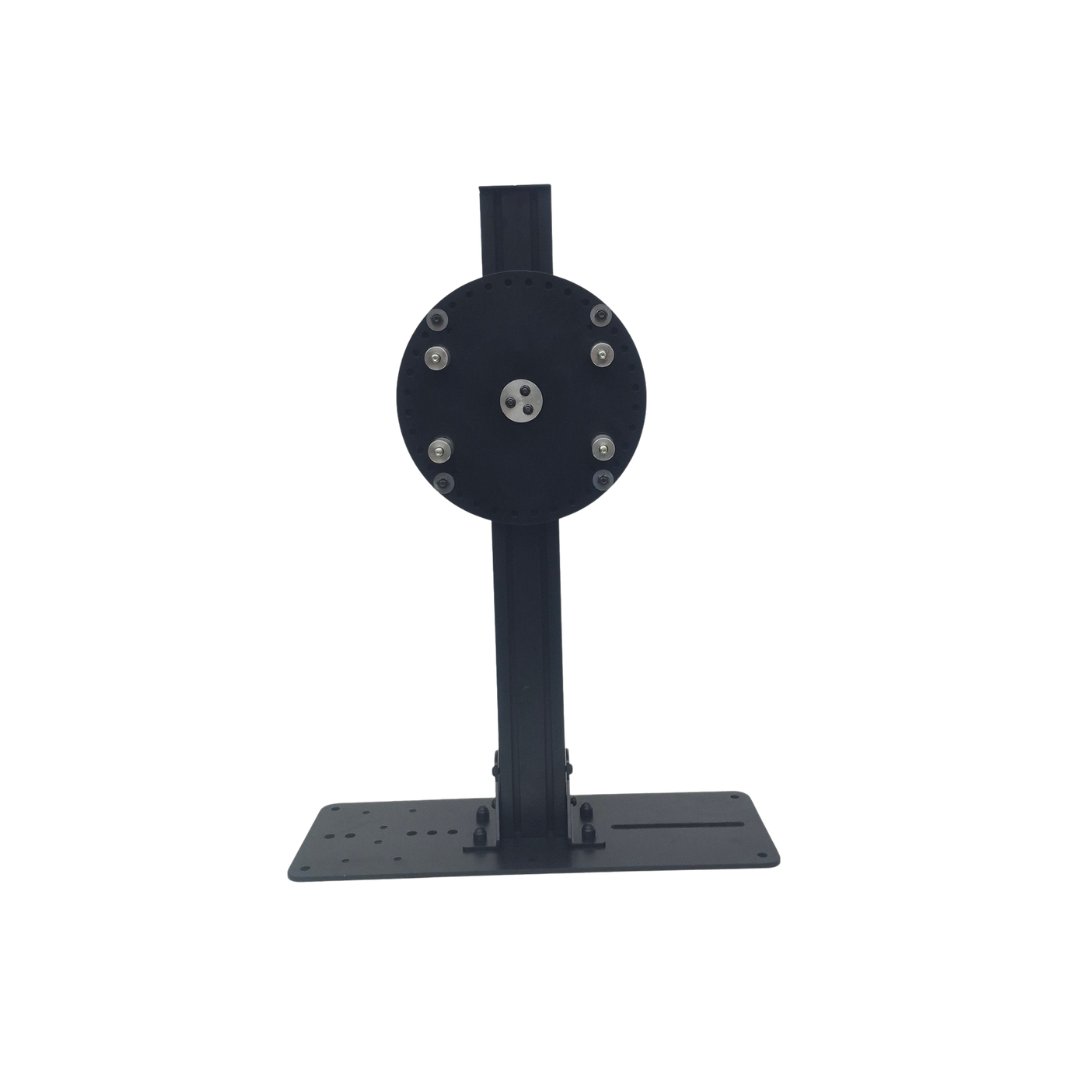

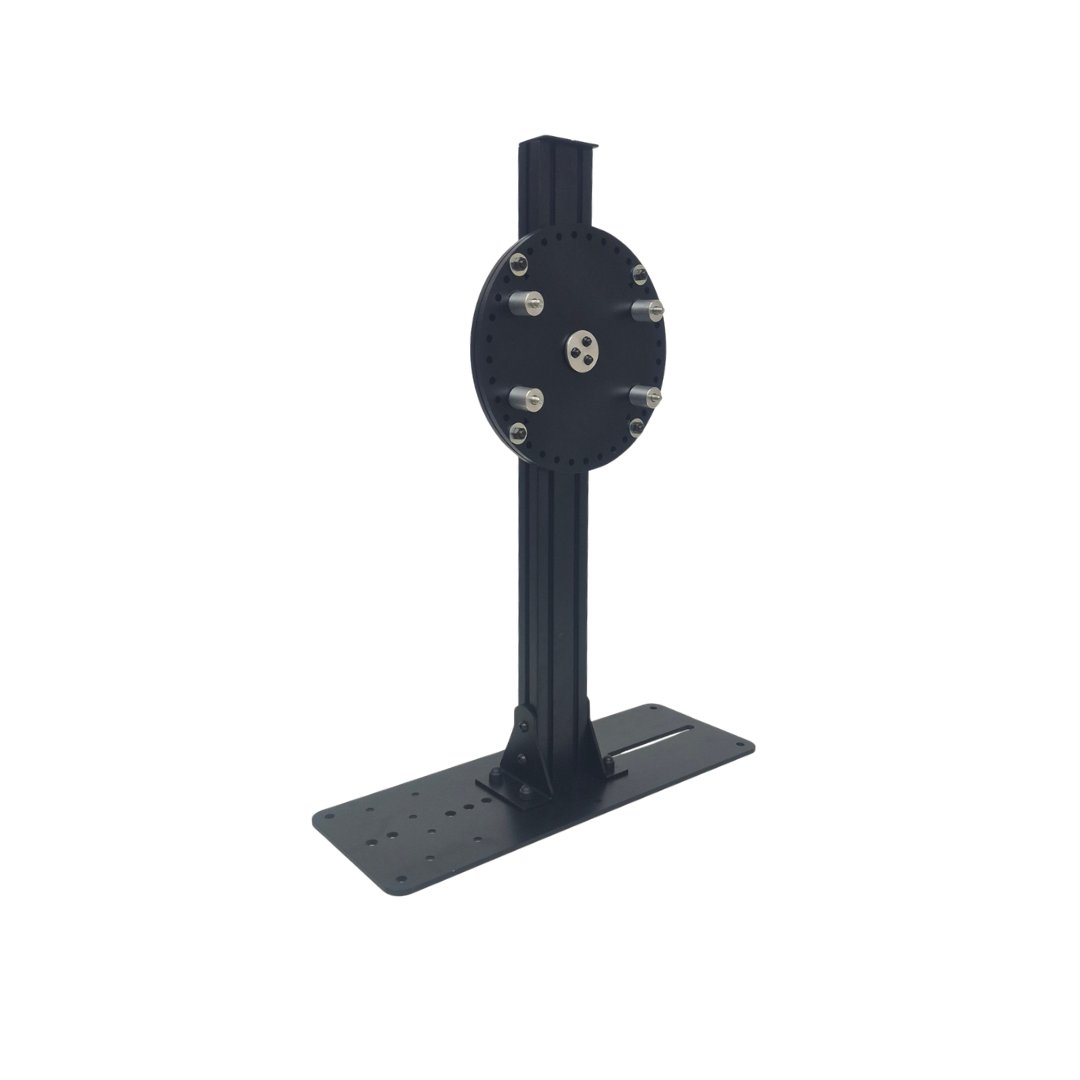

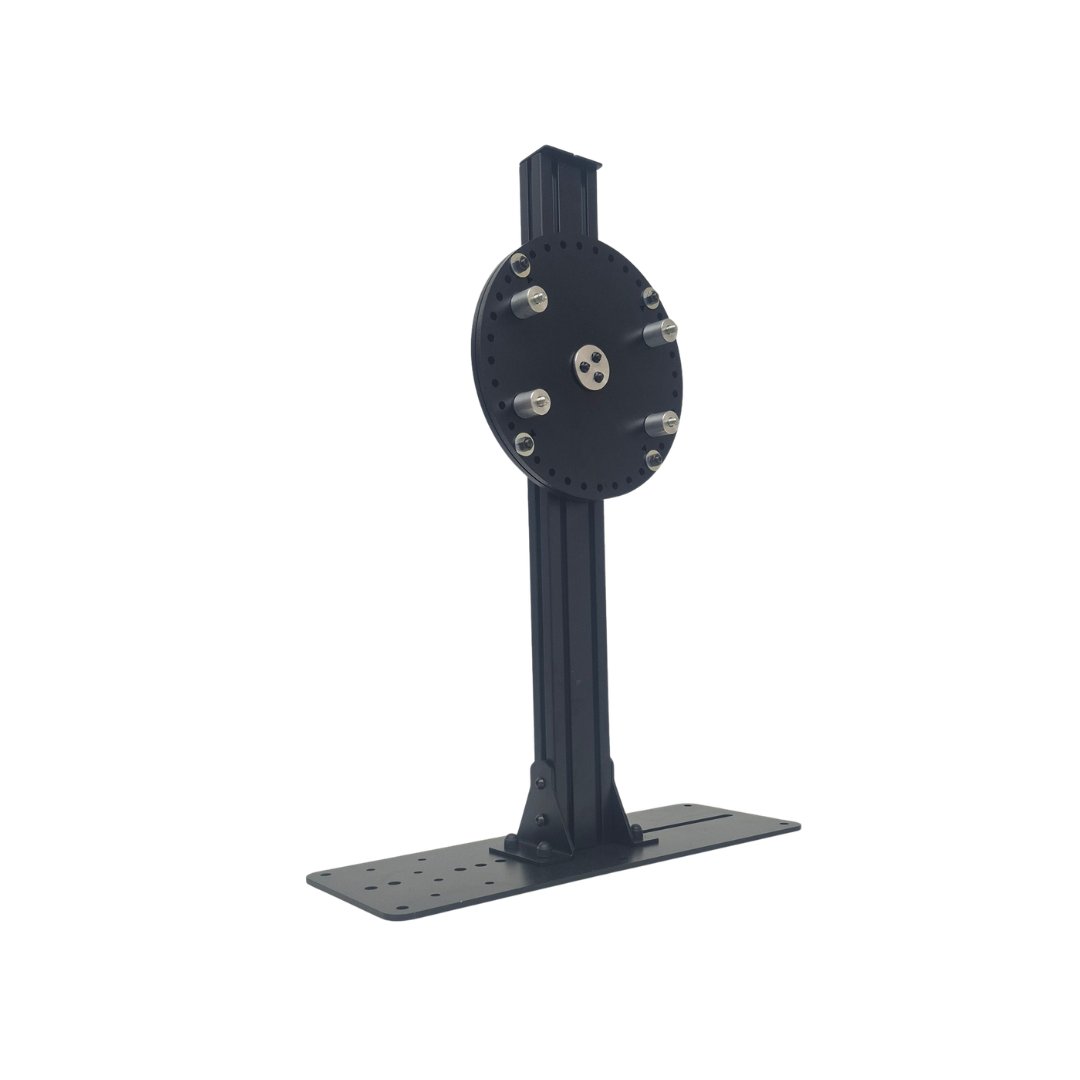

The arm features a multi-directional quick-release system that allows for a full 360-degree rotation. Additionally, it can be attached either to the center of the plate or in a lateral position, keeping the projector perfectly aligned with its center of gravity.
Finally, the sliding mechanism is linear and can cover the entire length of the structure till the wall.
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Installation | A traliccio (clamp non incluse), Support system to the ceiling, Support system to the wall |
|---|---|
| Mode | Floor, Landscape, Portait |
| Material | Iron-Aluminum |
| Treatments | Powder coated |
| Color | Black |
| buttonhole adjustment range | From 200 to 400 mm |
| clamp fixing screw | M10 |
| standard attachment | YES |

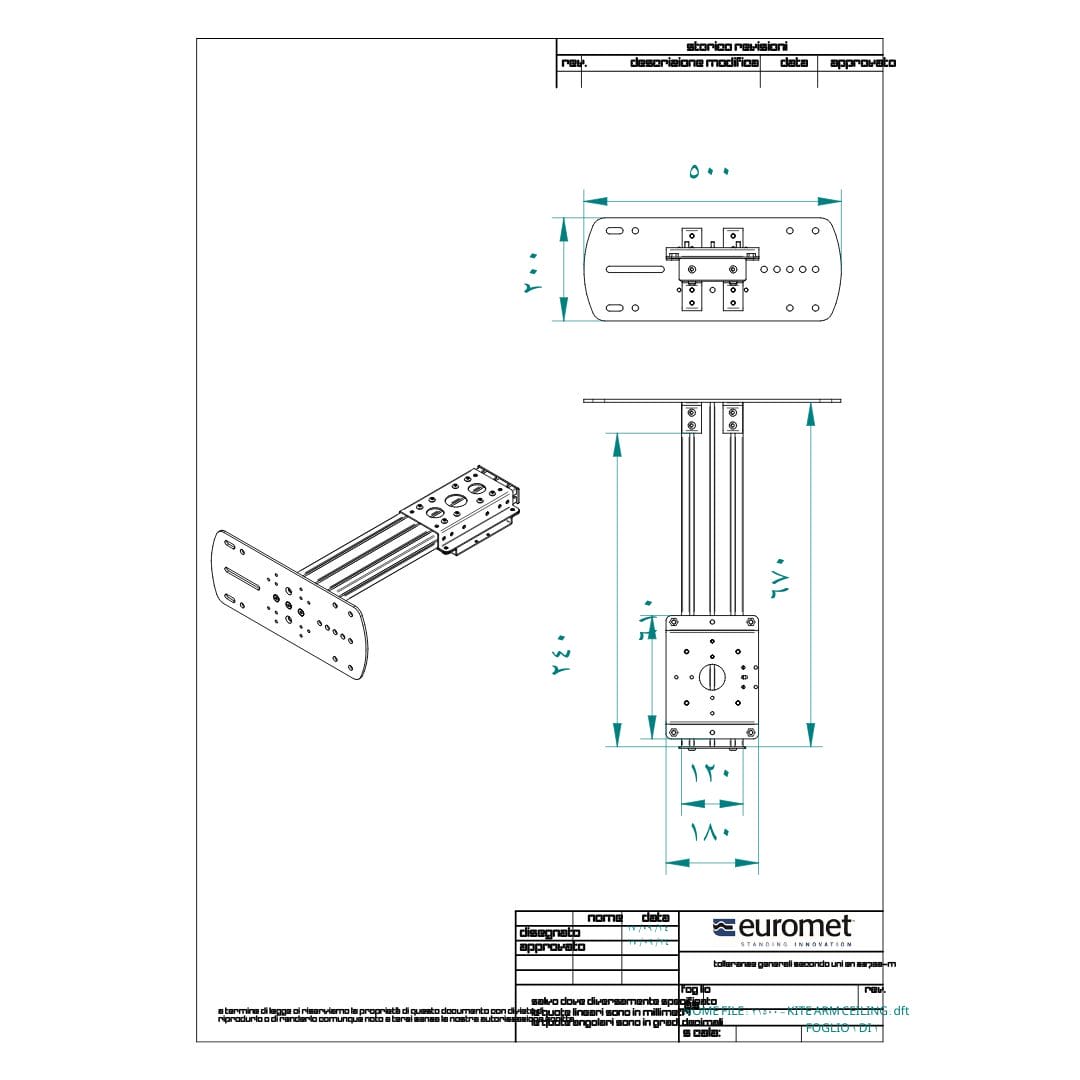

| Dimension | 200 x 500 _ 680 [mm] |
| packaging | 220 x 520 _ 700 [mm] |
