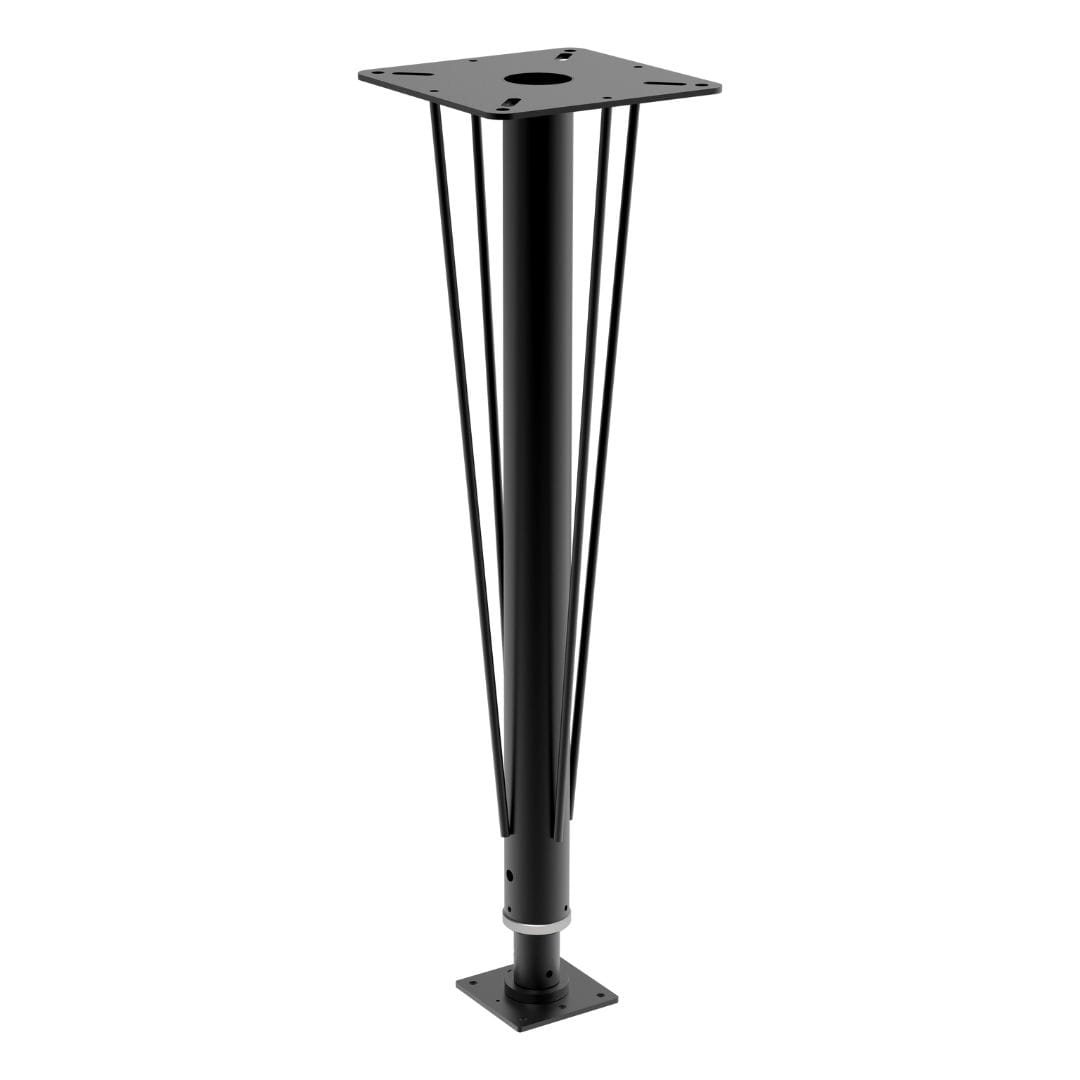

K-EXTENSION: Telescopic pole with rods 150-250 cm (no clamps)
It is a telescopic pole with fixed extension distances and length between 150 and 250 cm.
It can be either fastened to a truss with 2 Clamps (not included) or to the ceiling.

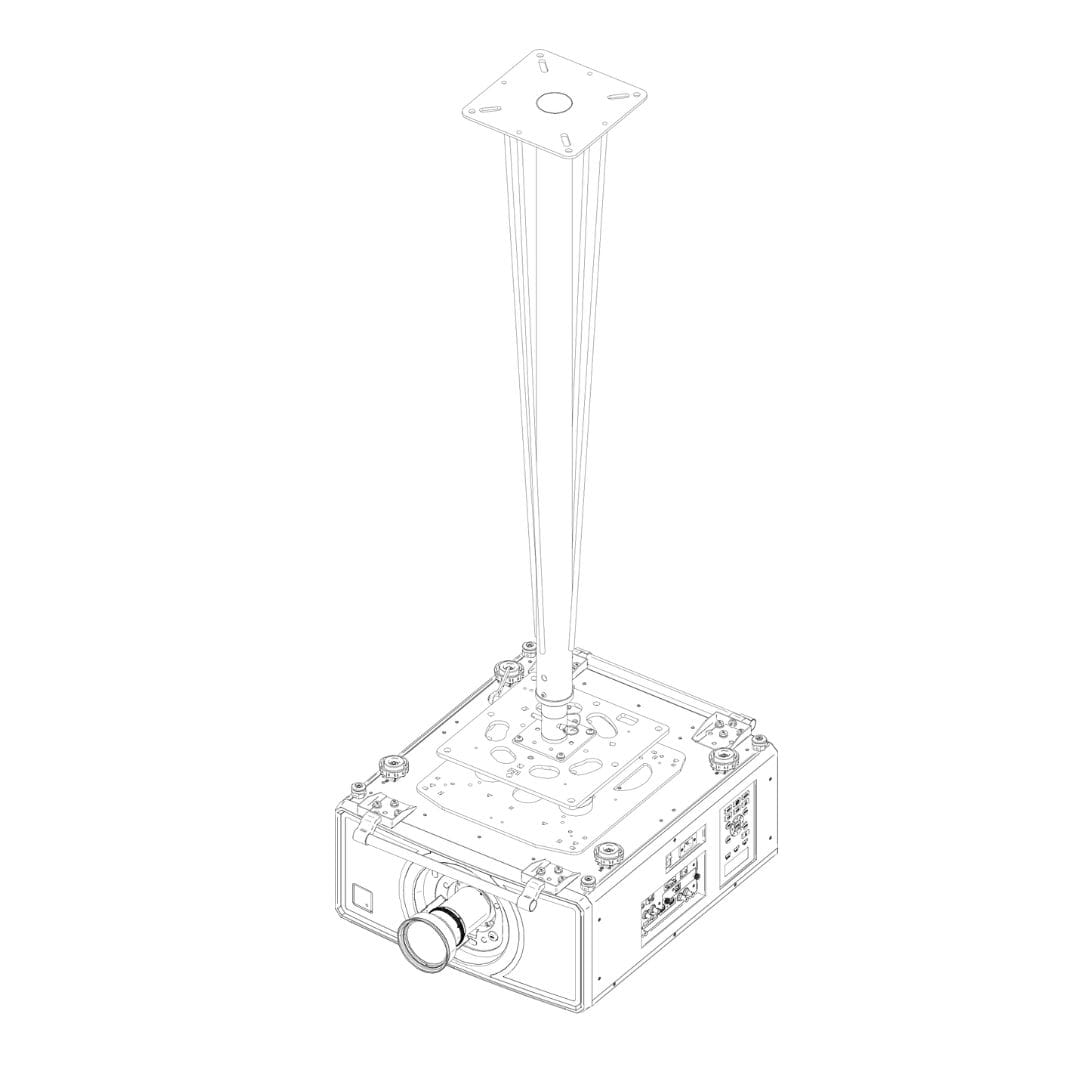

After fastening the telescopic pole to the truss or ceiling, it necessary to fix the plate with standard Euromet fastening to the cage, which is then attached to the pole with practical safety pin system.
Once this has been done, it is possible to turn the cage freely (by 360°) to reach the desired angle and fasten it with two grub screws.
Compatibility: all EUROMET products with standard connection
Certification IMQ: EN 62368-1:2014+A11:2017 clause 8.7
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| installation | A traliccio (clamp non incluse), Support system to the ceiling |
|---|---|
| Mode | Landscape |
| Material | Aluminum – Iron |
| Treatments | Powder coated |
| Color | Black |
| buttonhole adjustment range | From 220 to 320 mm |
| clamp fixing screw | M12 |
| standard attachment | YES |

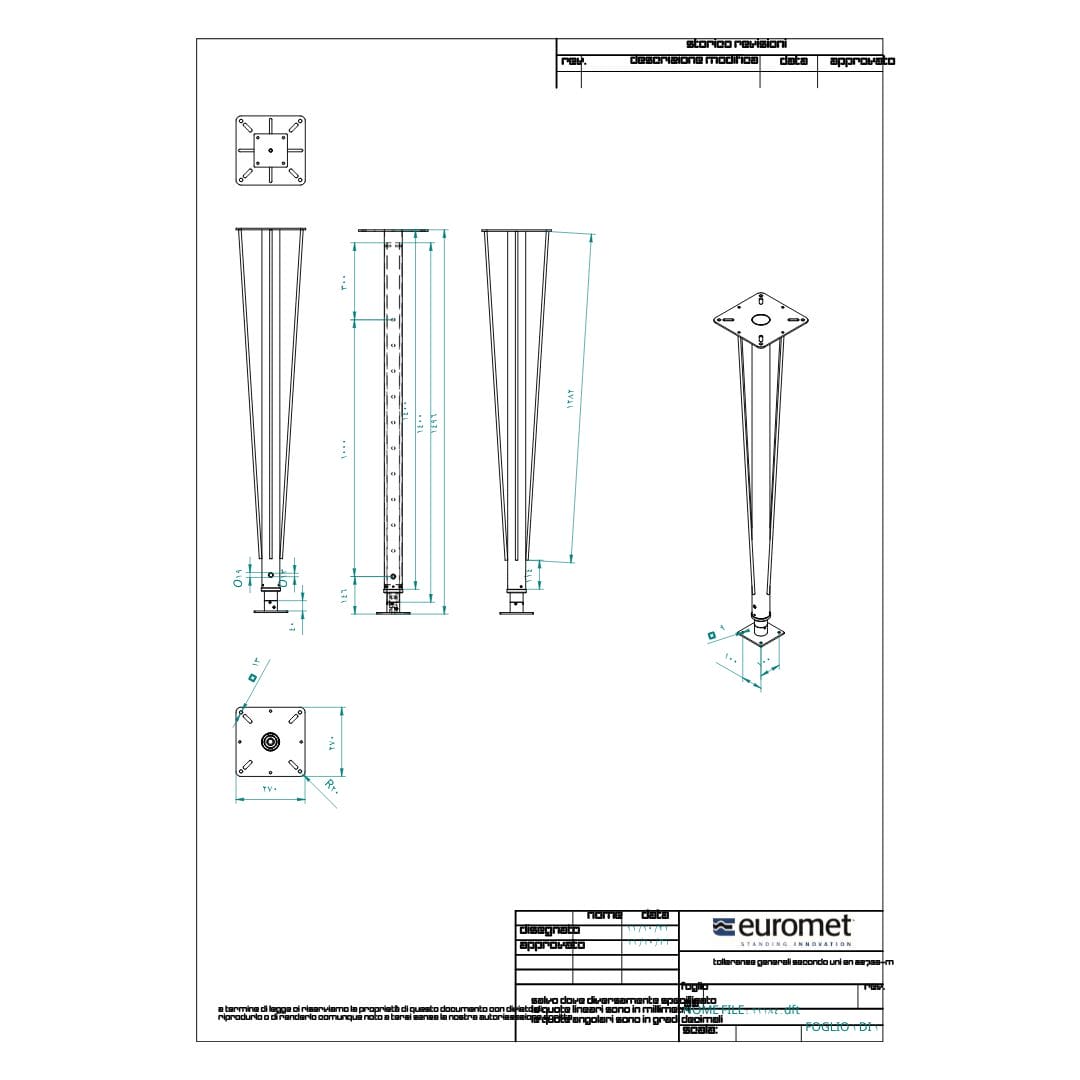

| Dimension | 270 x 270 _ 1500 (close) – 2500 (open) [mm] |
| packaging | 290 x 290 _ h1520 [mm] |
