Kalibro, stacking and Rigging Frame cage PT RZ660 and similar “New Version”

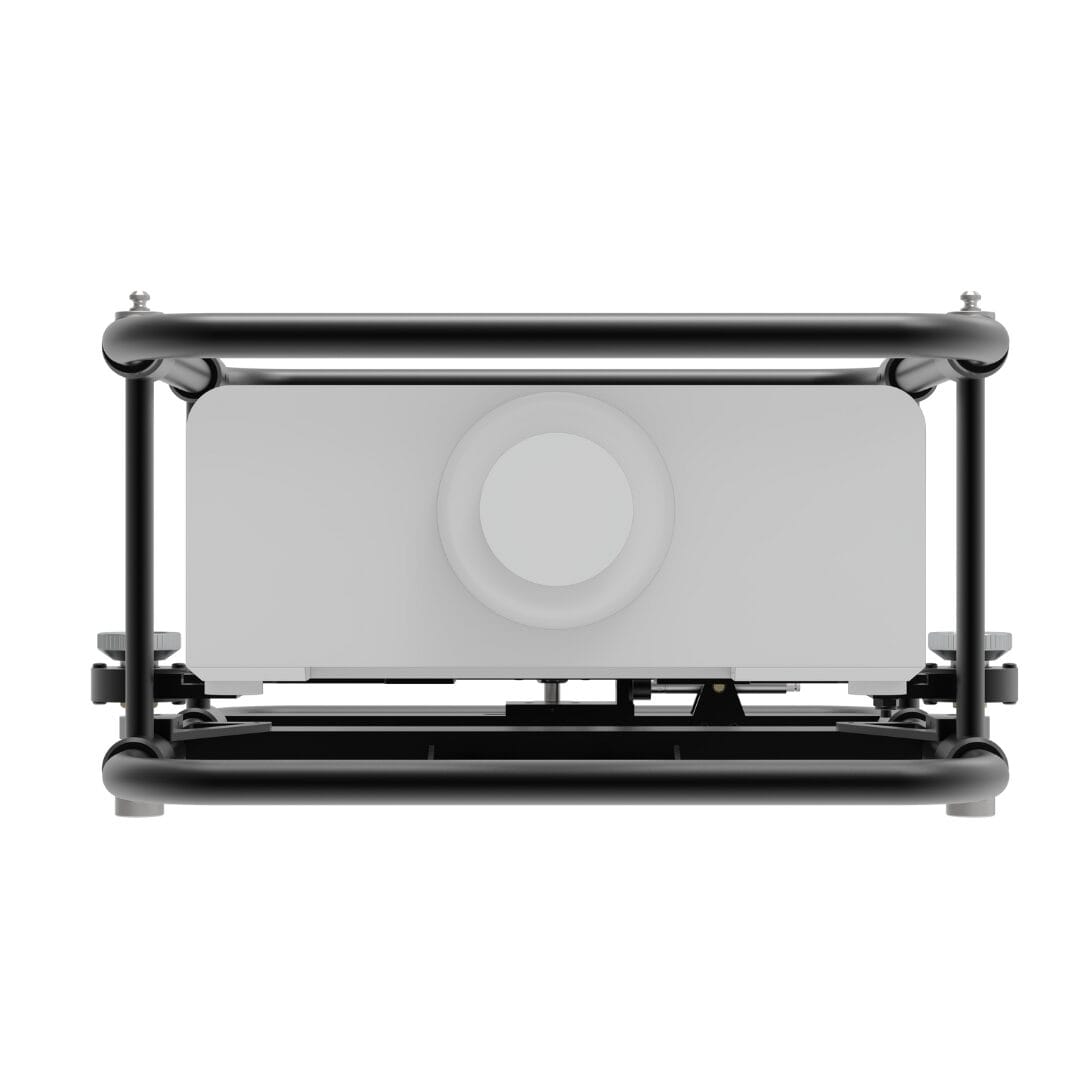

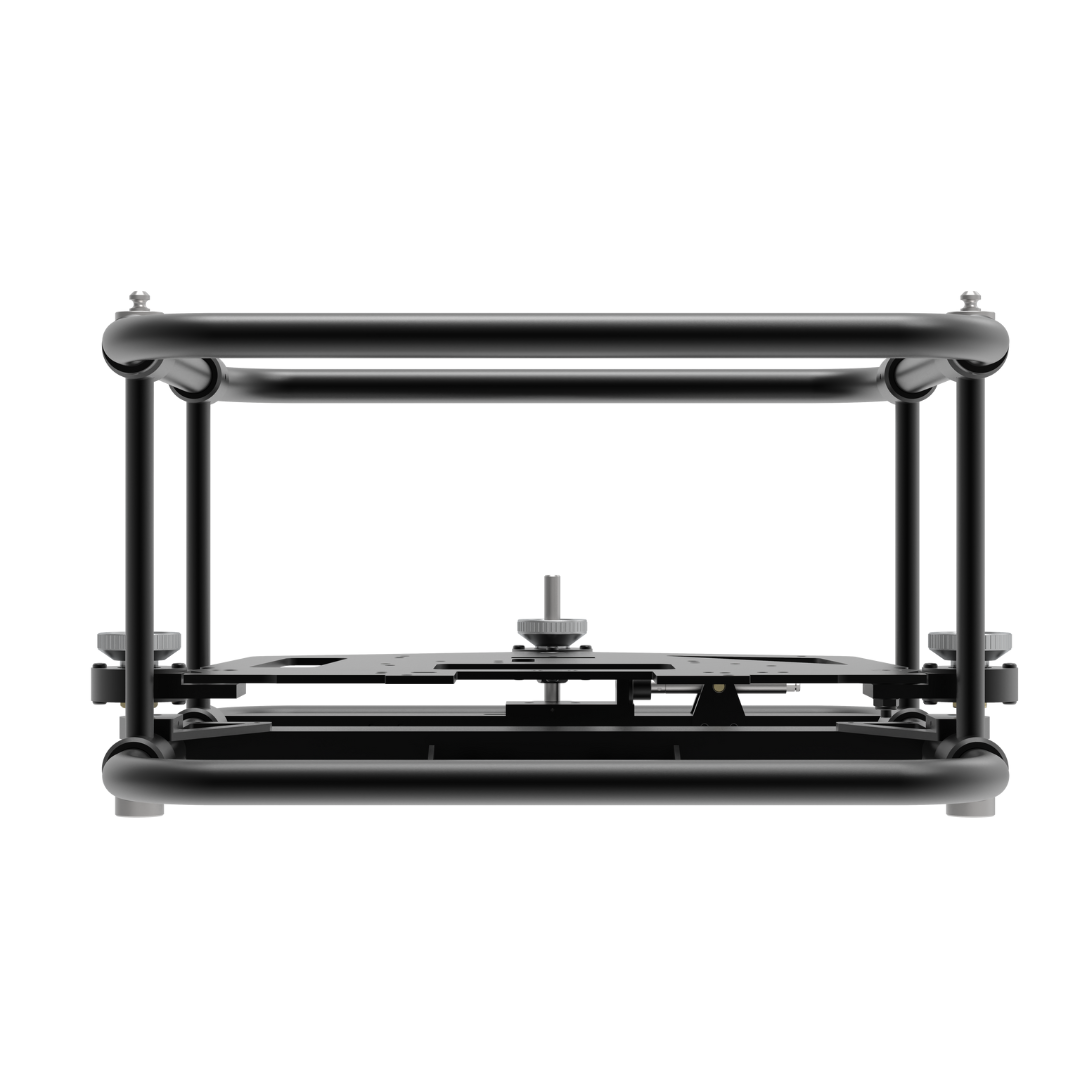

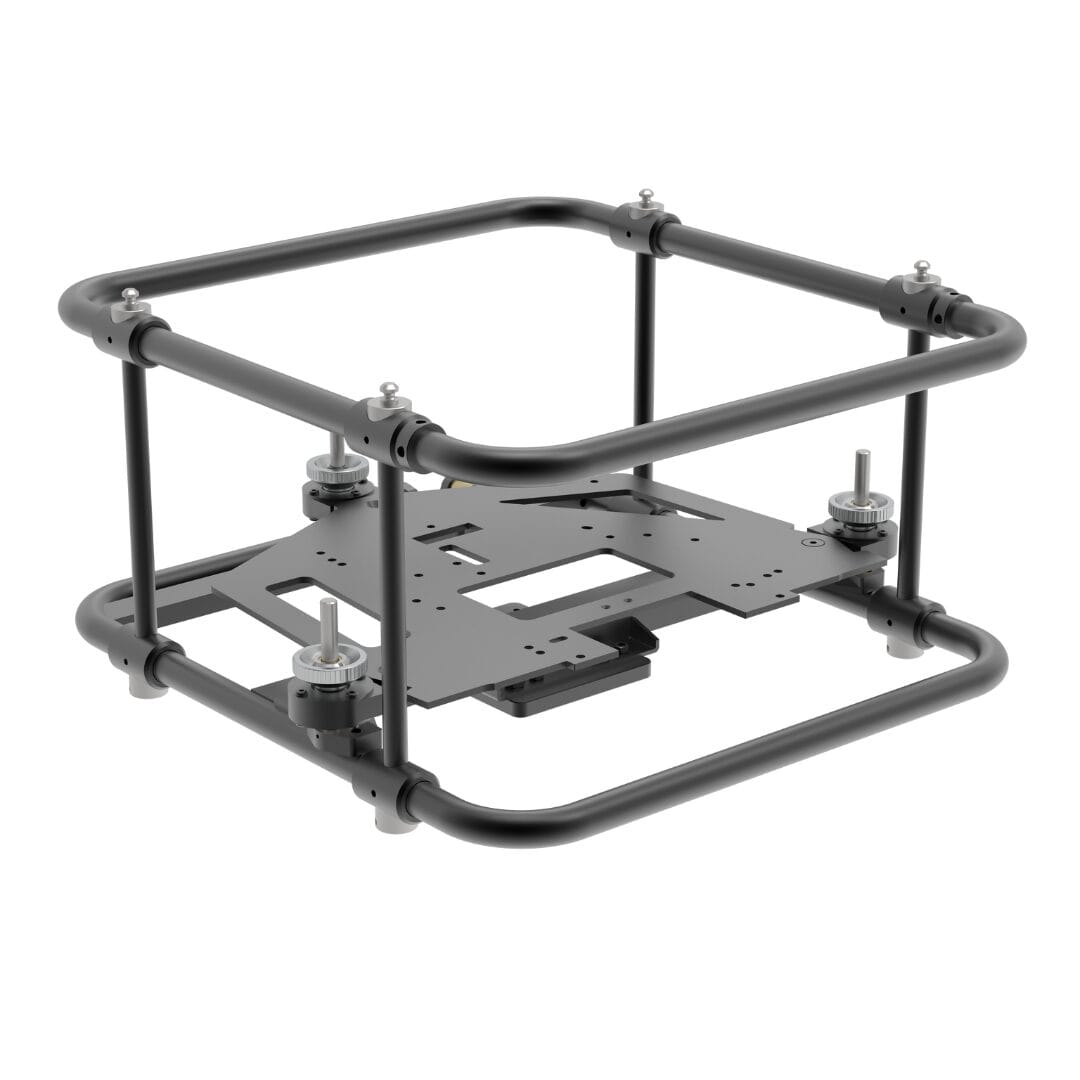

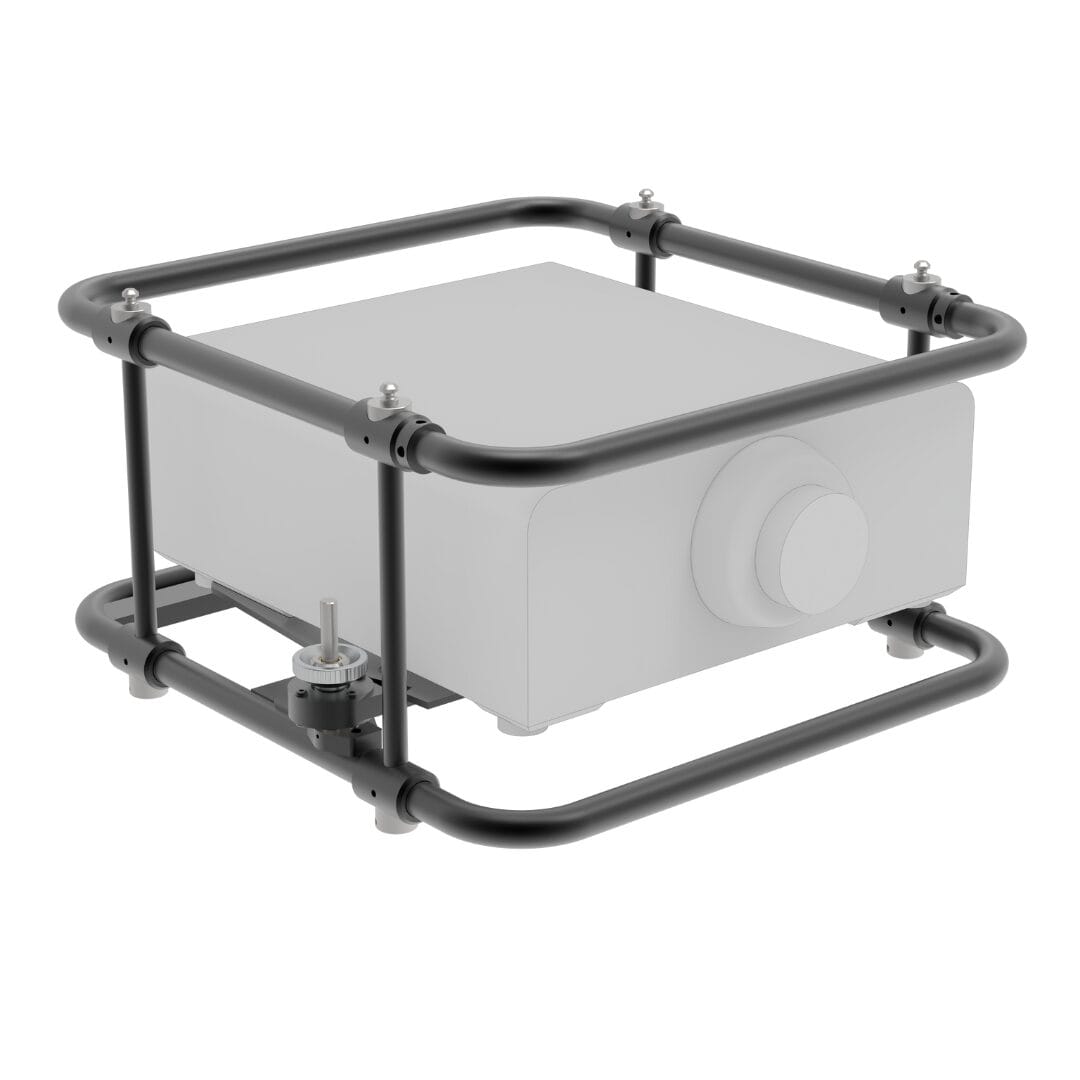

Microadjustable Rigging cage for PANASONIC PT-RZ660 & PT-RCQ10 videoprojector mounting
Robust, resistant, and engineered for video-projection. Thanks to its micro-adjustment capability on all three axes, utilizing keys and ratchet mechanisms, it provides optimal focus as well as centering of image.
*Compatible with these video projectors series:
Panasonic PT-RZ570
Panasonic PT-DW730
Panasonic PT-DW740
Panasonic PT-DW750
Panasonic PT-DZ770K
Panasonic PT-DZ780
Panasonic PT-DX800
Panasonic PT-DX810
Panasonic PT-DX820
Panasonic PT-RW620
Panasonic PT-RW630
Panasonic PT-RZ660
Panasonic PT-RZ670
Panasonic PT-RW730
Panasonic PT-RZ770
Panasonic PT-RZ780
Panasonic PT-RW930
Panasonic PT-RZ970
Panasonic PT-RW620
Panasonic PT-RZ120
Panasonic PT-DZ870K
Panasonic PT-DW830
Panasonic PT-DX100
Panasonic PT-RCQ10
Panasonic PT-RCQ80
Panasonic PT-RQ7/RQ6 (RQ7L/RQ6L)
Panasonic PT-RZ7/RZ6
Stacking
APPROVED FOR A MAXIMUM OF 3 STACKING CAGES
Maximum Ground Stack: 3 Frames
Maximum Suspended Stack: 2 Frames
Adjustment
4 points of adjustment
2 control the Roll and Pitch adjustments
1 handles position the height of the proyection
1 handle operates the Yaw adjustments
Wheels handle
Ratchet handle
Features
3 different mounting positions: portrait, landscape
and floor
Additional bars with aliscaff clamps for truss fastening
Removable bar extension (to adapt to different mounting positions without losing the removed bar)
K-TILT for truss fastening
Eyebolts for chain fastening
Swivel heads
Compatibility
With 3rd party stacking frame cage
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Material | Aluminum |
|---|---|
| Dimension | 70,0×68,0x45,0 cm |
| Weight | 20 kg |
| Pitch | +/3° |
| Roll | +/3° |
| Yaw | +/5° |
