P/N: 19748

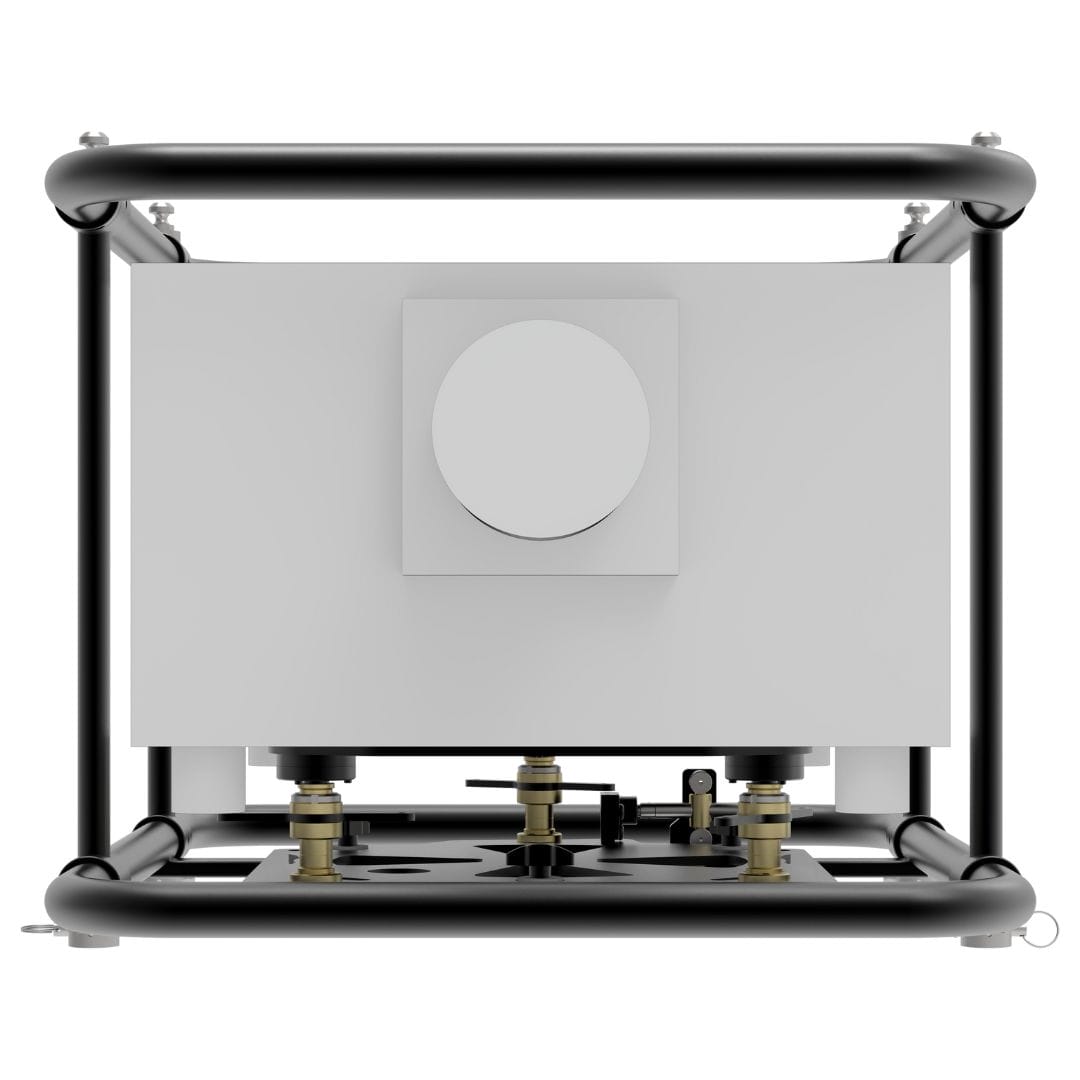

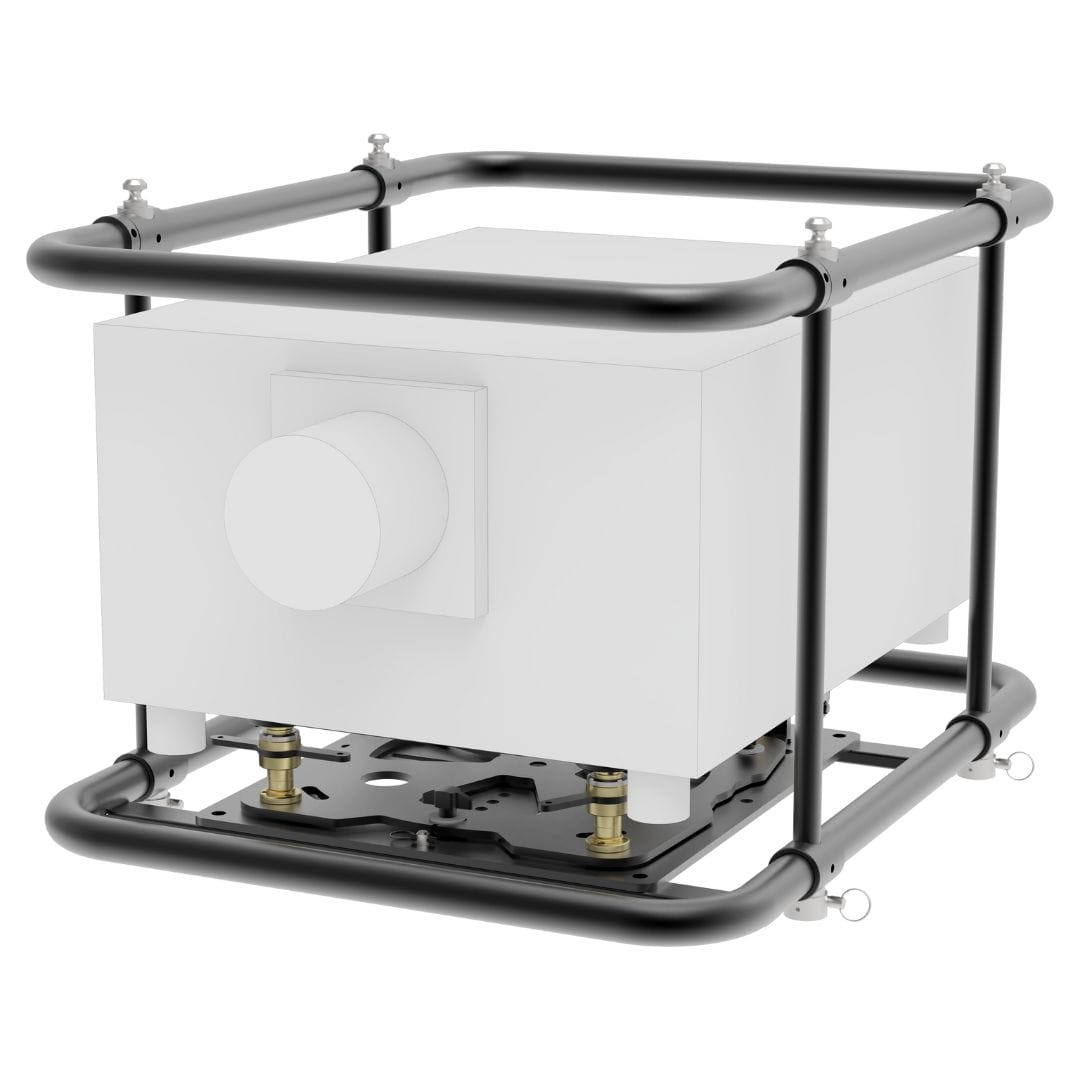

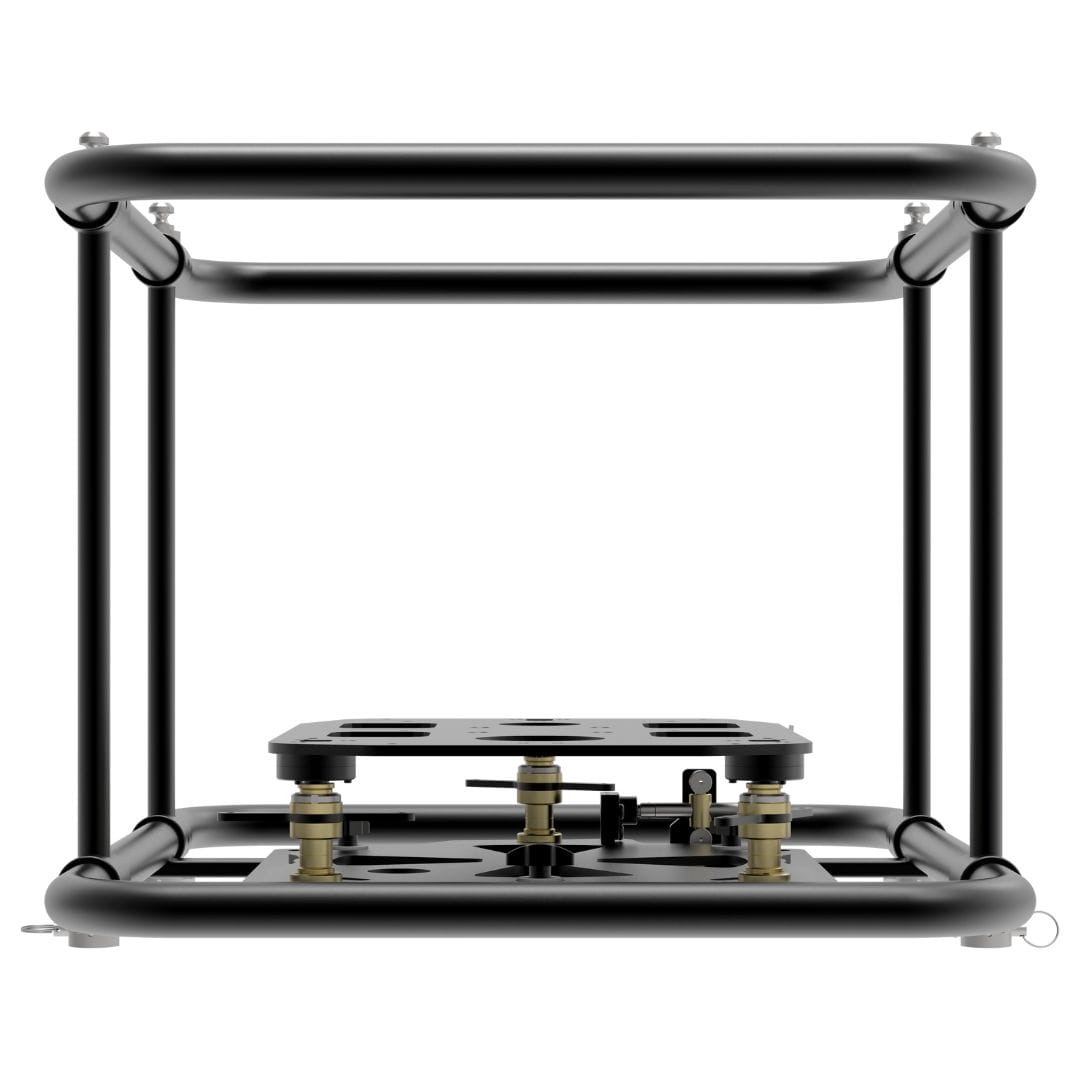

Kalibro is a cage with a a single body made of iron tubes, its structure is extremely resistant and ensures perfect fastening to ceiling or wall mounts for landscape, portrait or floor projection systems.
Thanks to a special pin system, it is possible to stack two or more cages, while also ensuring independent calibration for every projector.

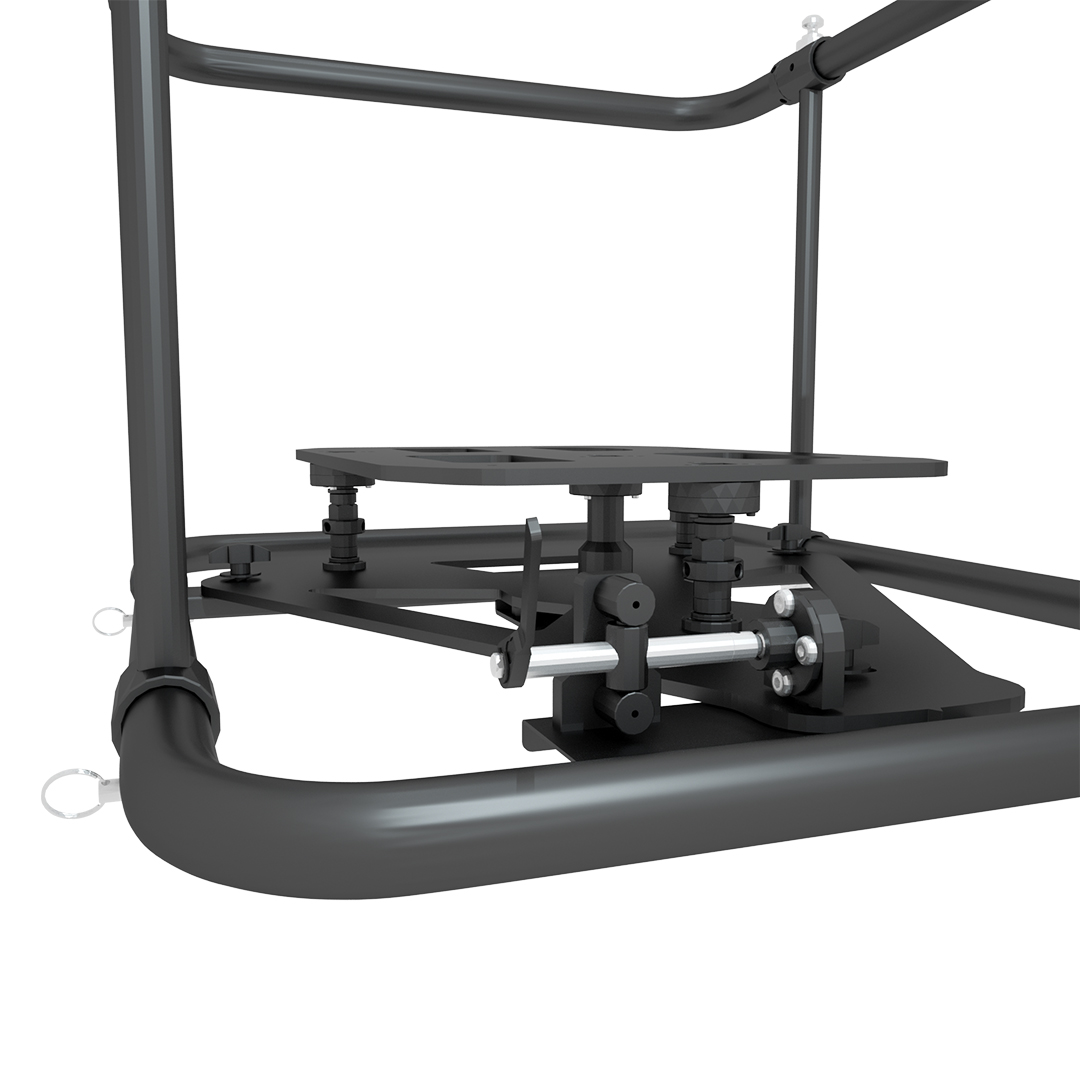

Micrometric adjustment on three 3 rotation axes is possible thanks to specific knobs or ratchets, thus making it possible to perfectly centre the lens perpendicular to the projection surface, in order to improve focusing, image definition or to save projector power.
FLIGHT CASE:
23041: normal FLIGHT CASE with standard accessory drawer 40x17x8 [cm]
23042: FLIGHT CASE with additional side container (depth 15 cm) without divider
22827: OPTIONAL PARTITION, possibly to be ordered together with code 23042
*Compatible with cages of third-party companies and for the series of video projectors:
Panasonic PT-RQ35K
Panasonic PT-RZ34K
Stacking
Approved for a maximum of 3 stacking cage (Ground Stack)
Approved for a maximum of 2 stacking cage (Suspended Stack)
IMQ Certification
EN 62368-1:2014+A11:2017 clause 8.7
Every EUROMET product is manufactured in conformity with regulatory standards CE, regarding IEC 60065 paragraph 19 and IEC 60950-1 paragraph 4.2.1, inherant to the security of suspended loads and anti-tipping for monitor supports.
