Advanced Kalibration Systems
Kalibro F Strong, Stacking and Rigging Frame cage EPSON EP-25K U, EB-30K U

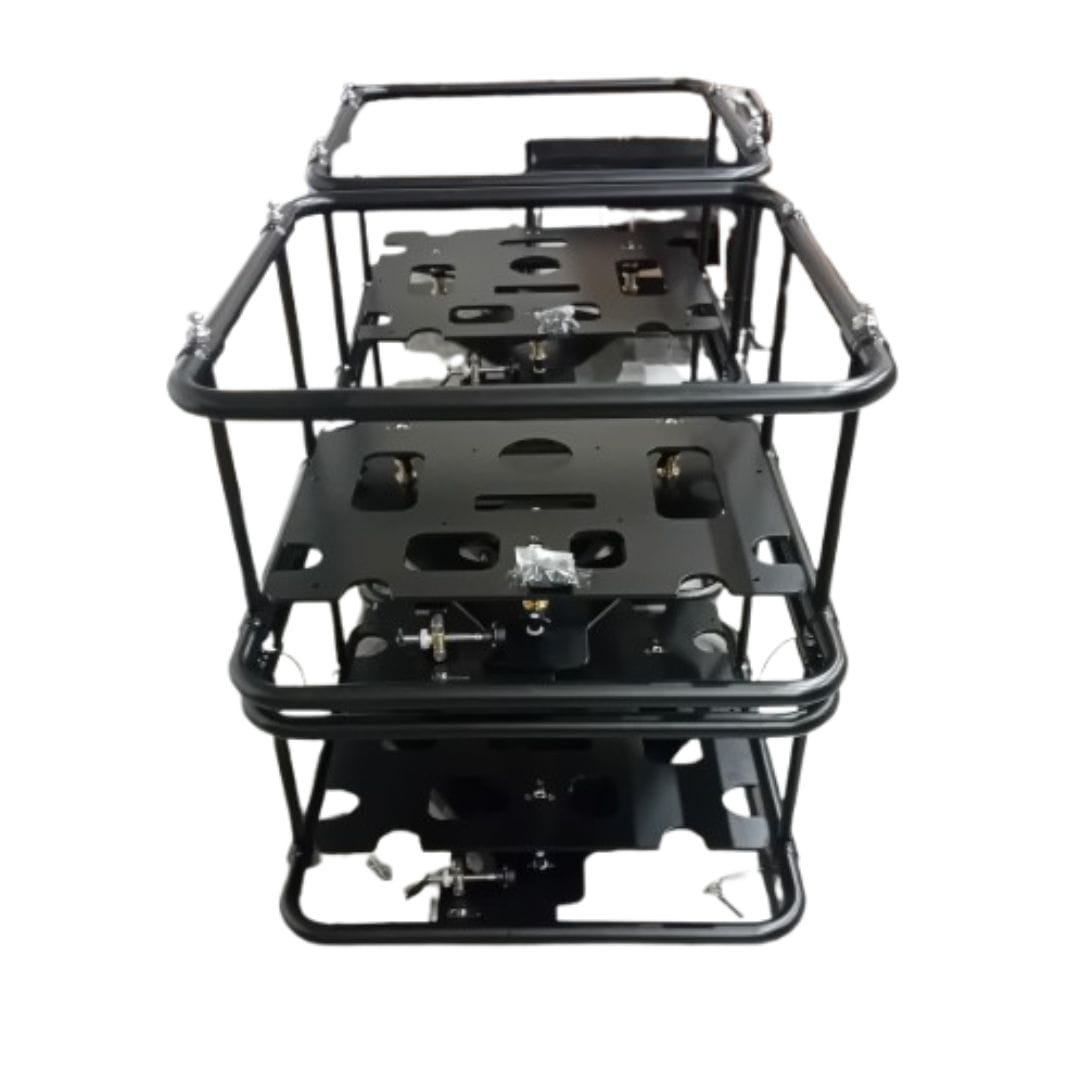

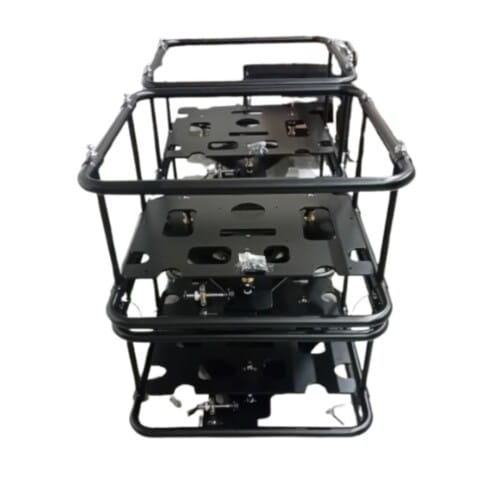

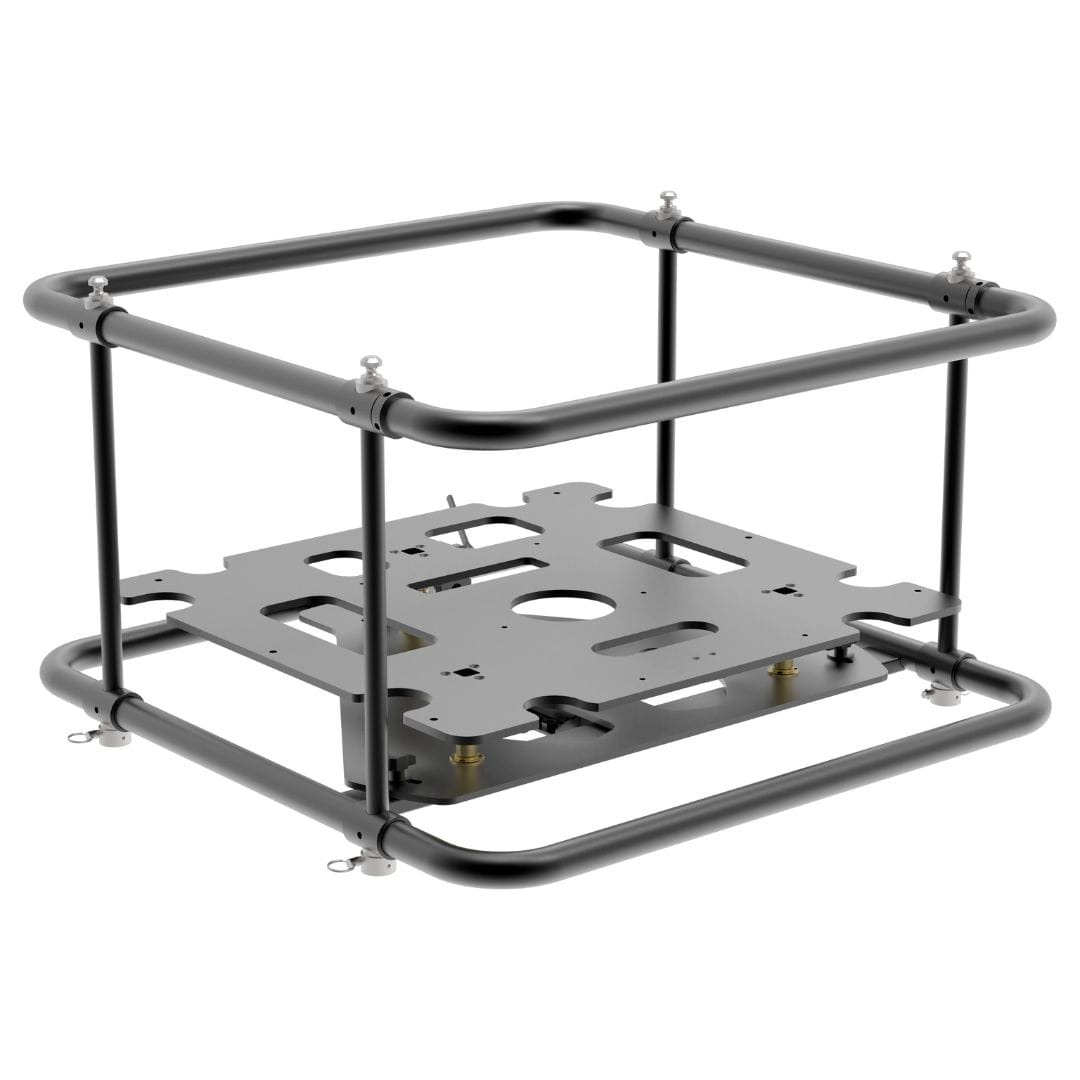

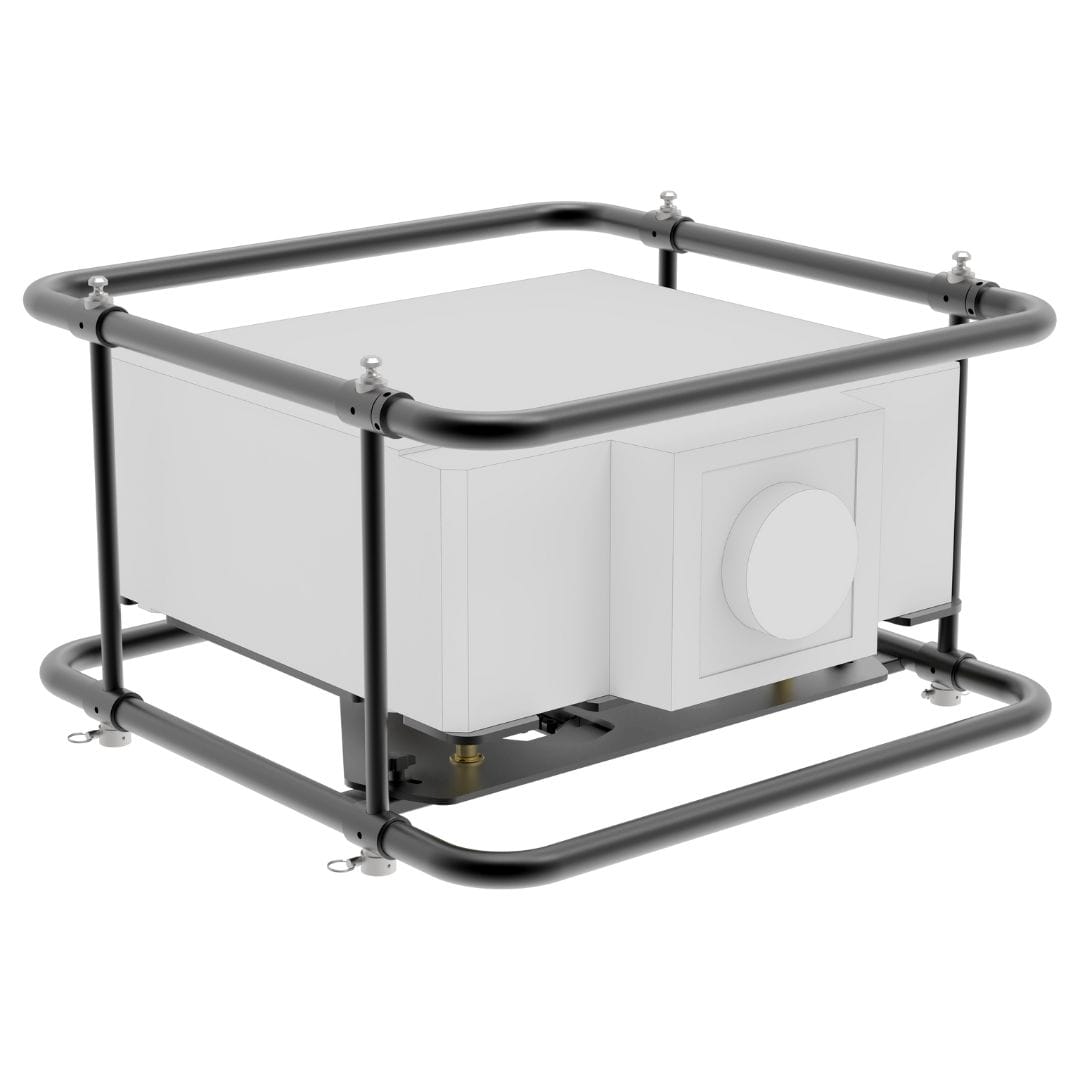

Kalibro is a cage with a a single body made of iron tubes, its structure is extremely resistant and ensures perfect fastening to ceiling or wall mounts for landscape, portrait or floor projection systems.

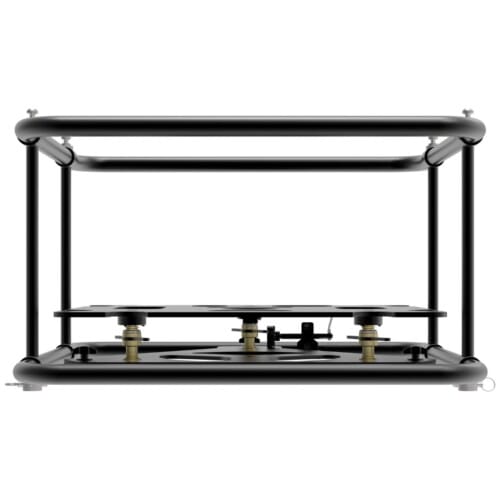

Micrometric adjustment on three 3 rotation axes is possible thanks to specific knobs or ratchets, thus making it possible to perfectly centre the lens perpendicular to the projection surface, in order to improve focusing, image definition or to save projector power.
The micrometric adjustment on the 3 rotation axes takes place by means of special knobs or ratchet wrenches, thus obtaining the perfect centering and perpendicularity of the lens with respect to the projection surface, in order to improve the focus, the definition of the image or saving on the power of the projector.
*Compatible with these projectors:
EPSON
EB-25K U
EB-30K U

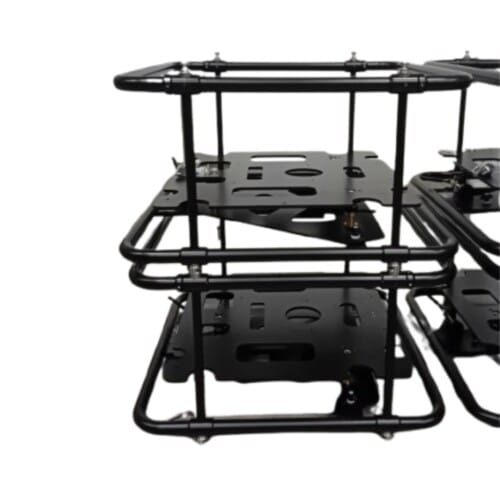

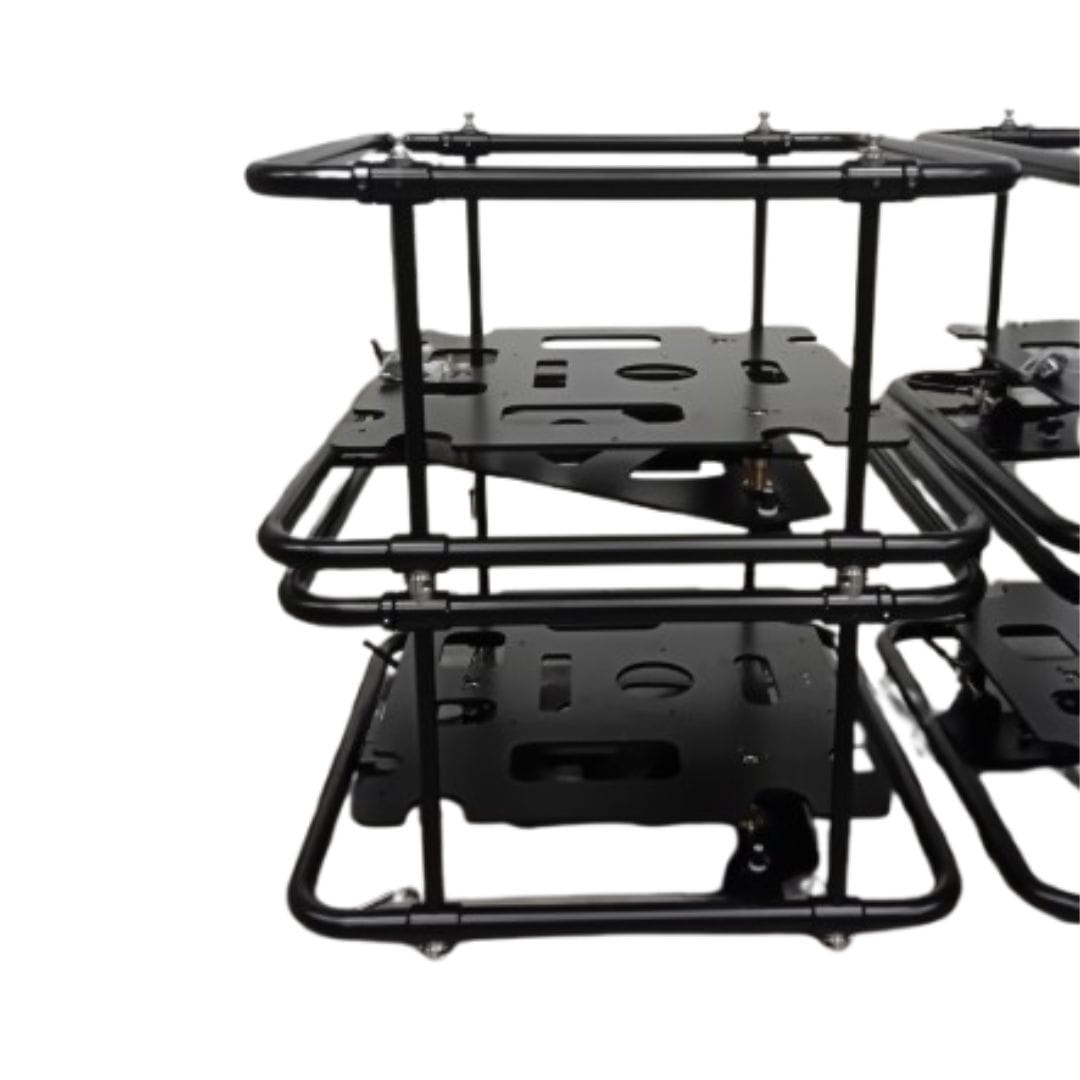

Stacking
Approved for a maximum of 3 stacking cage (Ground Stack)
Approved for a maximum of 2 stacking cage (Suspended Stack)
IMQ Certification
EN 62368-1:2014+A11:2017 clause 8.7
Compatibility
With 3rd party stacking frame cage
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Material | Iron – Aluminum |
|---|---|
| Pitch | +/3° |
| Roll | +/3° |
| Yaw | +/- 4° |
| Dimension | 945 x 950 _ 535 (600) [mm] |
| packaging | 980 x 980 _ h630 [mm] |
| Color | Black |
| Treatments | Powder coating |
