Name: Kalibro D Standard - Euromet
SKU: 20900

Kalibro D Standard

P/N: 20900Categories: Kalibro

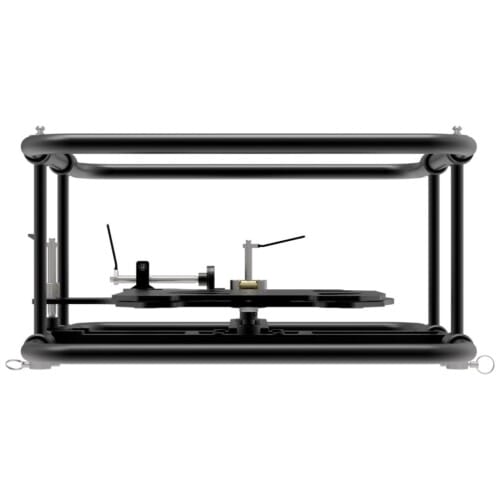

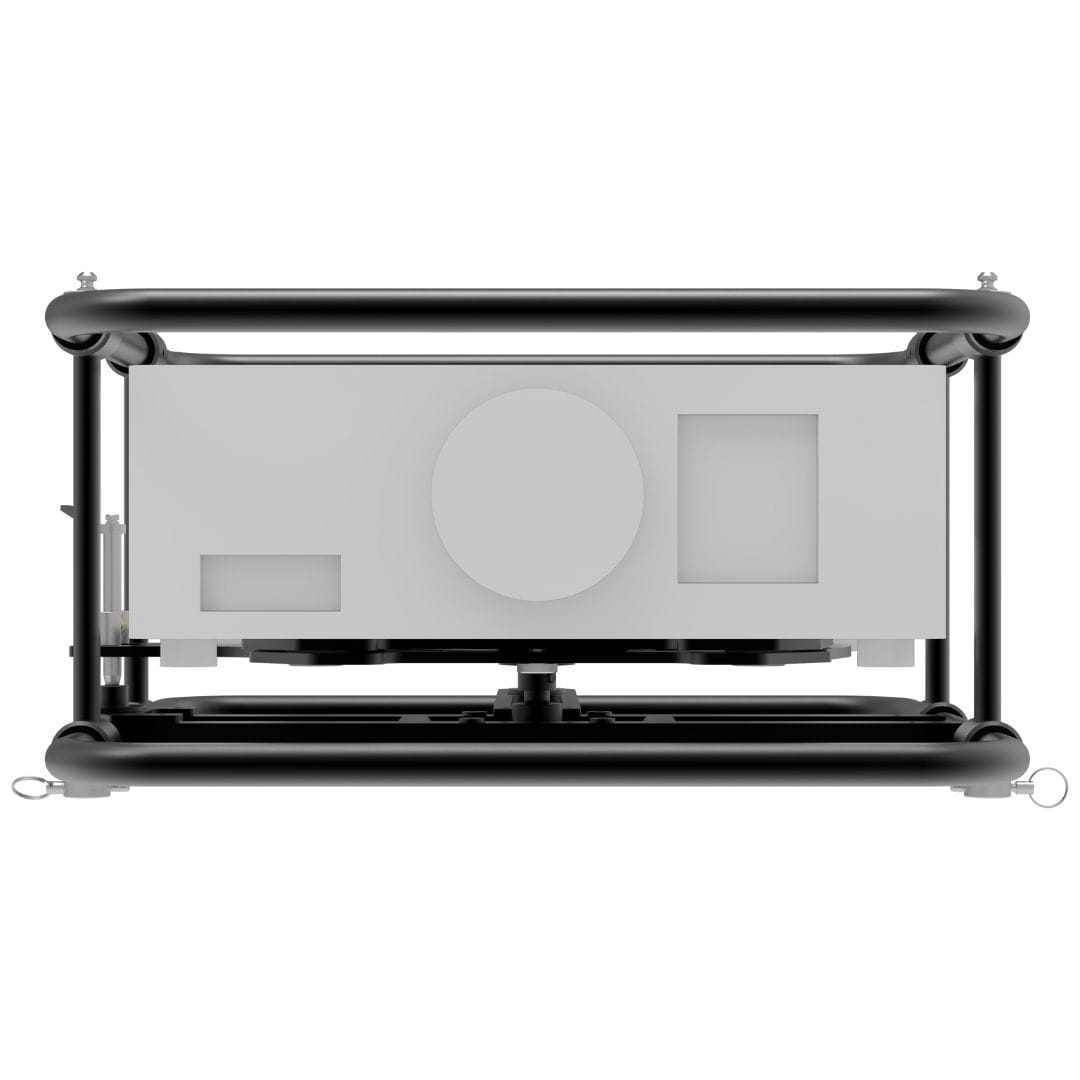

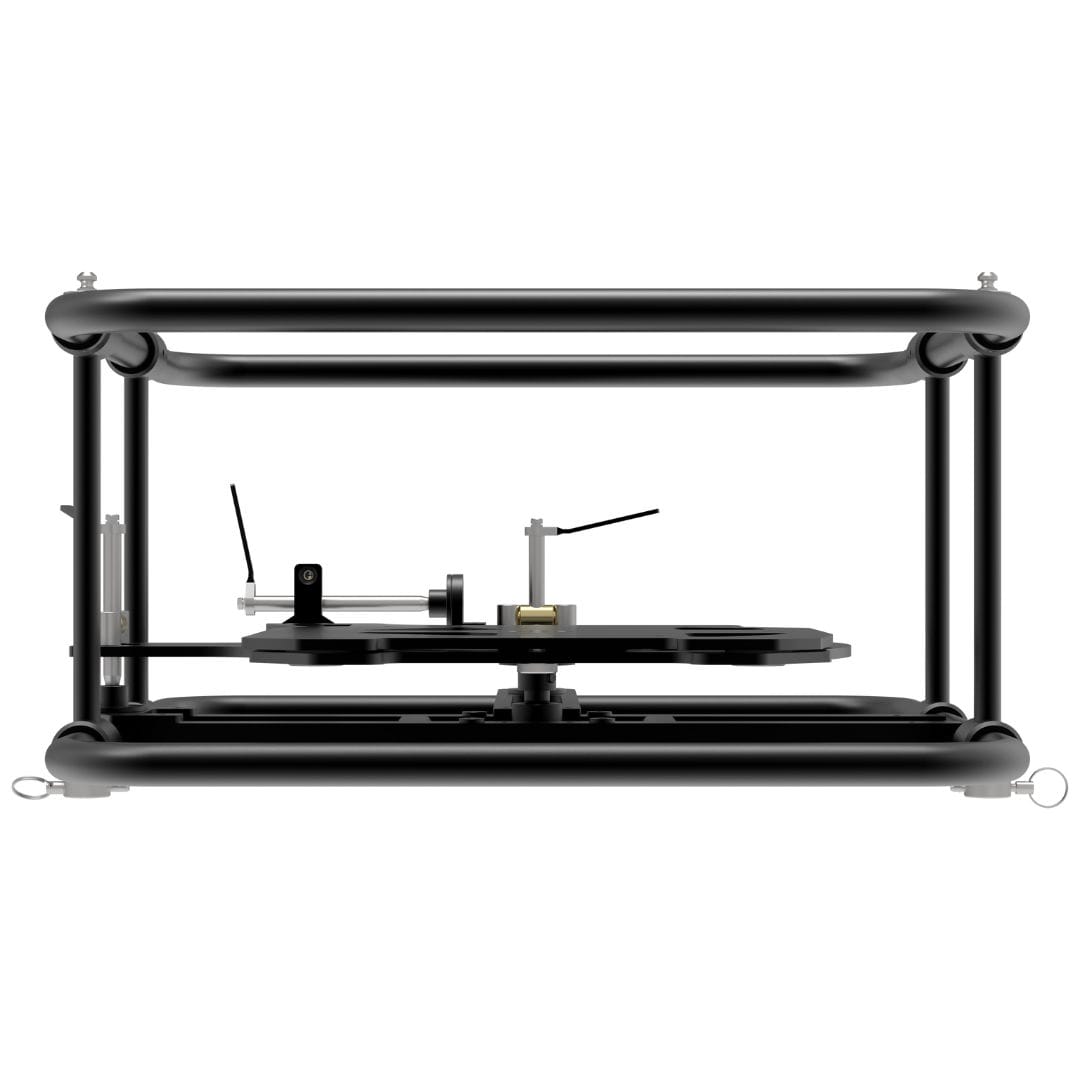

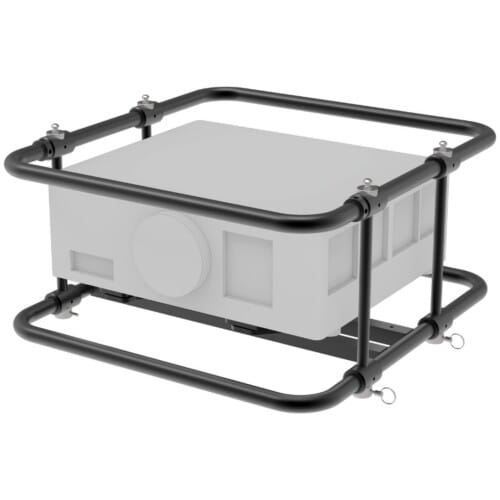

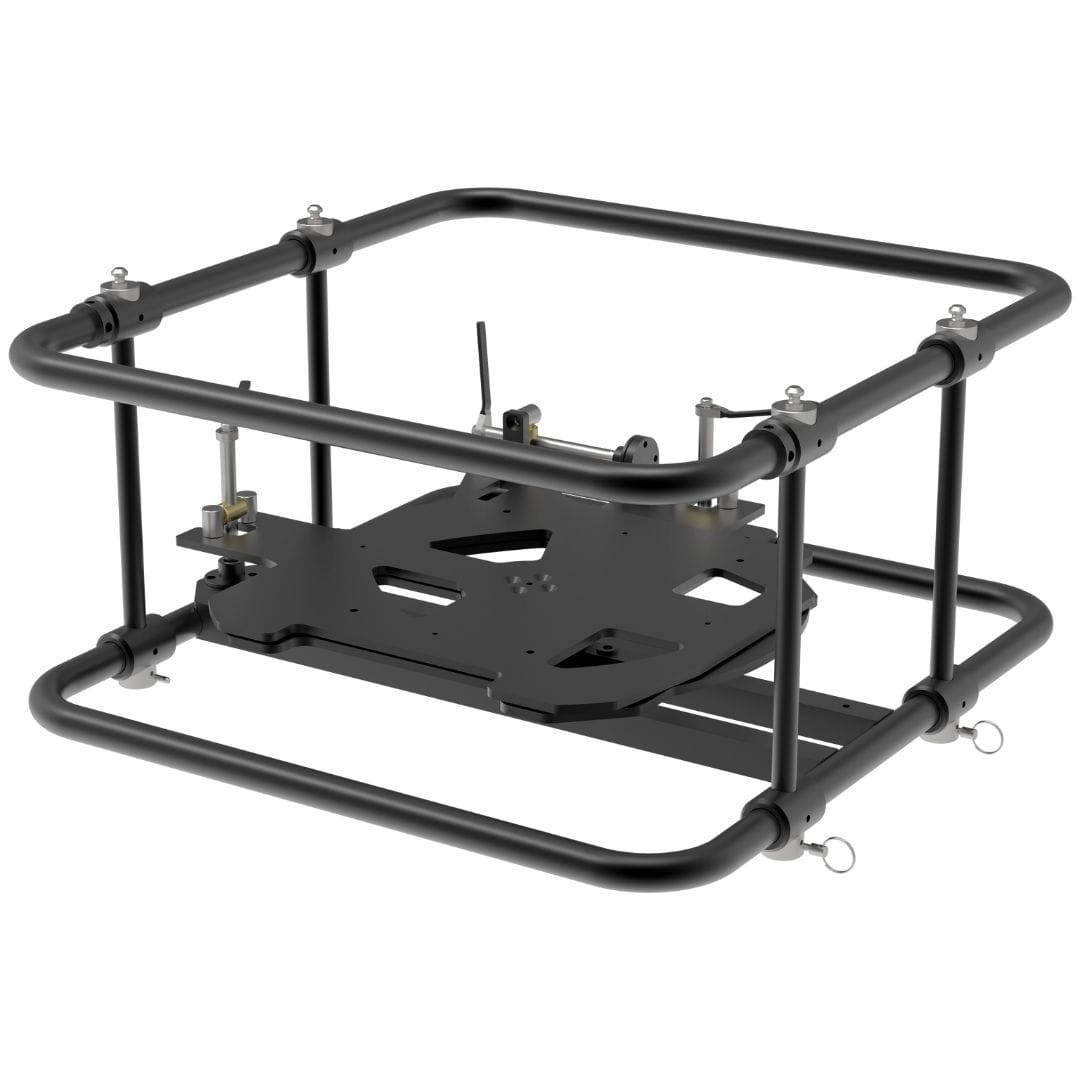

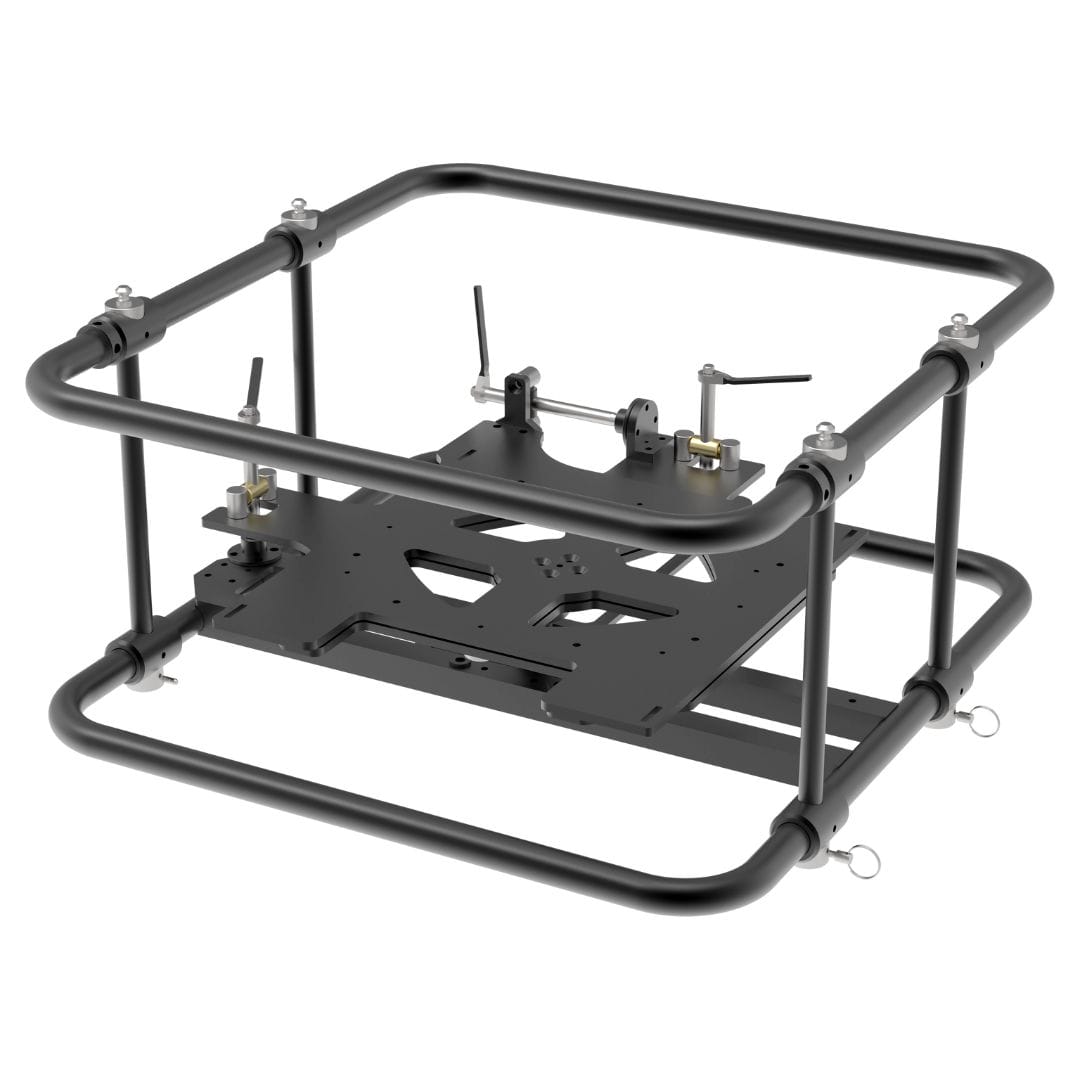

Cage made up of a single welded body of iron pipes, the structure is extremely resistant and guarantees perfect fixing of the support in the case of ceiling or wall installation; in landscape, portrait or floor projection.

Thanks to a special pin system, it is possible to stack several cages together, while still guaranteeing the independent calibration of each projector.

The micrometric adjustment on the 3 rotation axes takes place by means of special knobs or ratchet wrenches, thus obtaining the perfect centering and perpendicularity of the lens with respect to the projection surface, in order to improve the focus, the definition of the image or saving on the power of the projector.

FLIGHT CASE:

22841: normal FLIGHT CASE with standard accessory drawer 40x17x8
22851: FLIGHT CASE with additional side container (depth 15 cm) without divider
22827: OPTIONAL PARTITION, possibly to be ordered together with code 22851

*Compatible with these video-projectors:

EPSON (EB-L1xxx):
EB-L1000U, EB-L1100U, EB-L1200U, EB-L1300U, EB-L1405U, EB-L1490U, EB-L1495U, EB-L1500UH, EB-L1505UH, EB-L1710S, EB-L1715S, EB-L1750U, EB-L1755U.
EPSON (EB-L10xx):
EB-L1070U, EB-L1075U, EB-L1060U, EB-L1065U, EB-L1050U, EB-L1070W, EB-L1060U.
EPSON (EB-PU1xxx-20xx):
PU-2008
EPSON (EB-PU22xx-21xx):
PU-2220

Panasonic:

Panasonic PT-DZ21K, Panasonic PT-RZ21K, Panasonic PT-RZ12K, Panasonic PT-RQ22K, Panasonic PT-RQ13K, Panasonic PT-RS20K, Panasonic PT-RS11K, Panasonic PT-DS20K, Panasonic PT-DZ16K, Panasonic PT-DW17K

Stacking
With support on the ground: Approved for up to 3 cages
With ceiling attachment: Approved for up to 2 cages

IMQ certification
EN 62368-1:2014+A11:2017 clause 8.7

Compatibility
Even with third-party cages

DOWNLOAD PDF

Request a quote

All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.

TECHNICAL SPECIFICATIONS

Material	Iron-Aluminum
removable bar	YES
Pitch	+/3°
Roll	+/3°
Yaw	+/5°
Dimension	710 x 735 _ 340 (390) [mm]
Packaging Dimensions	770 x 770 _ h410 [mm]
