Kalibro, stacking and Rigging Frame cage PT 21K and similar

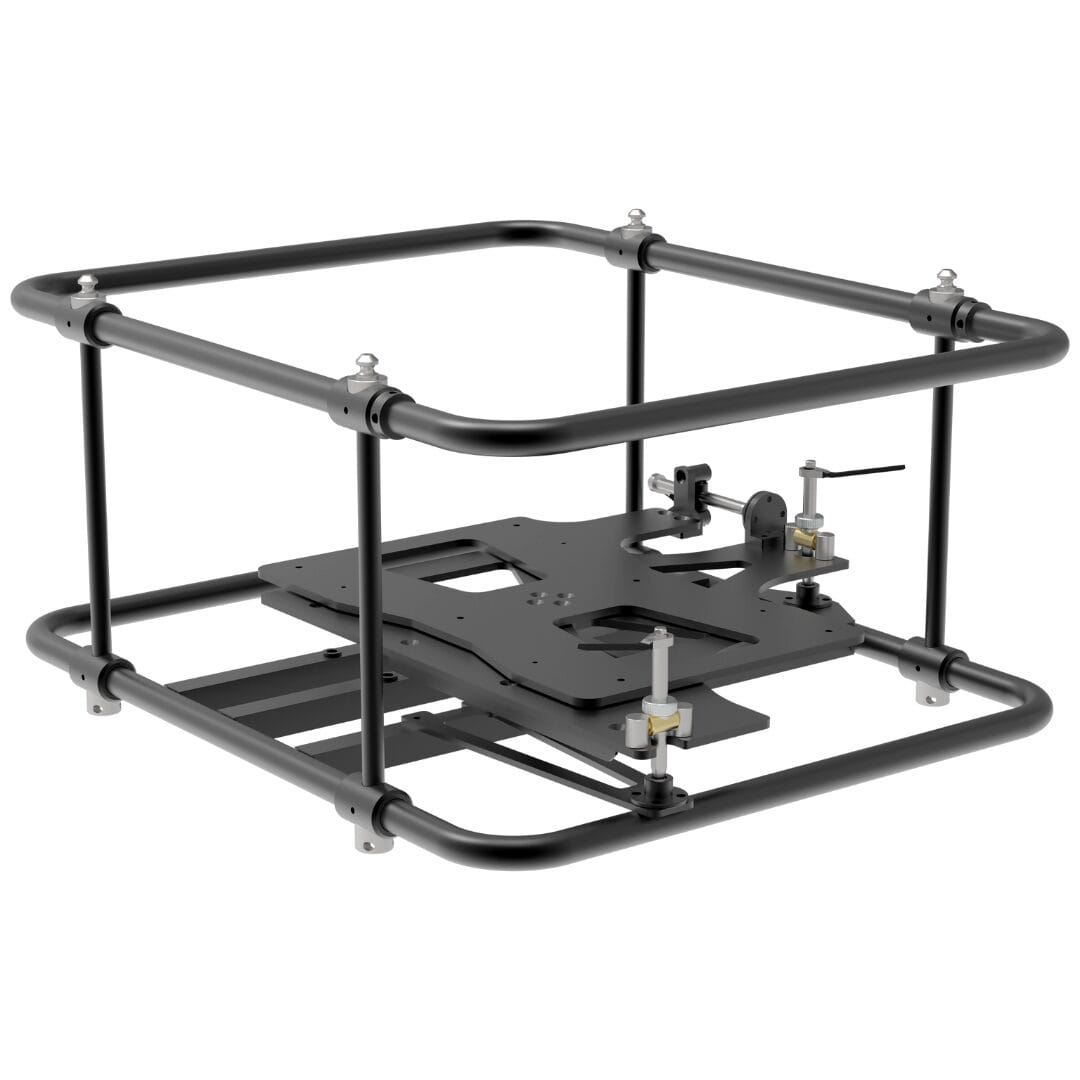

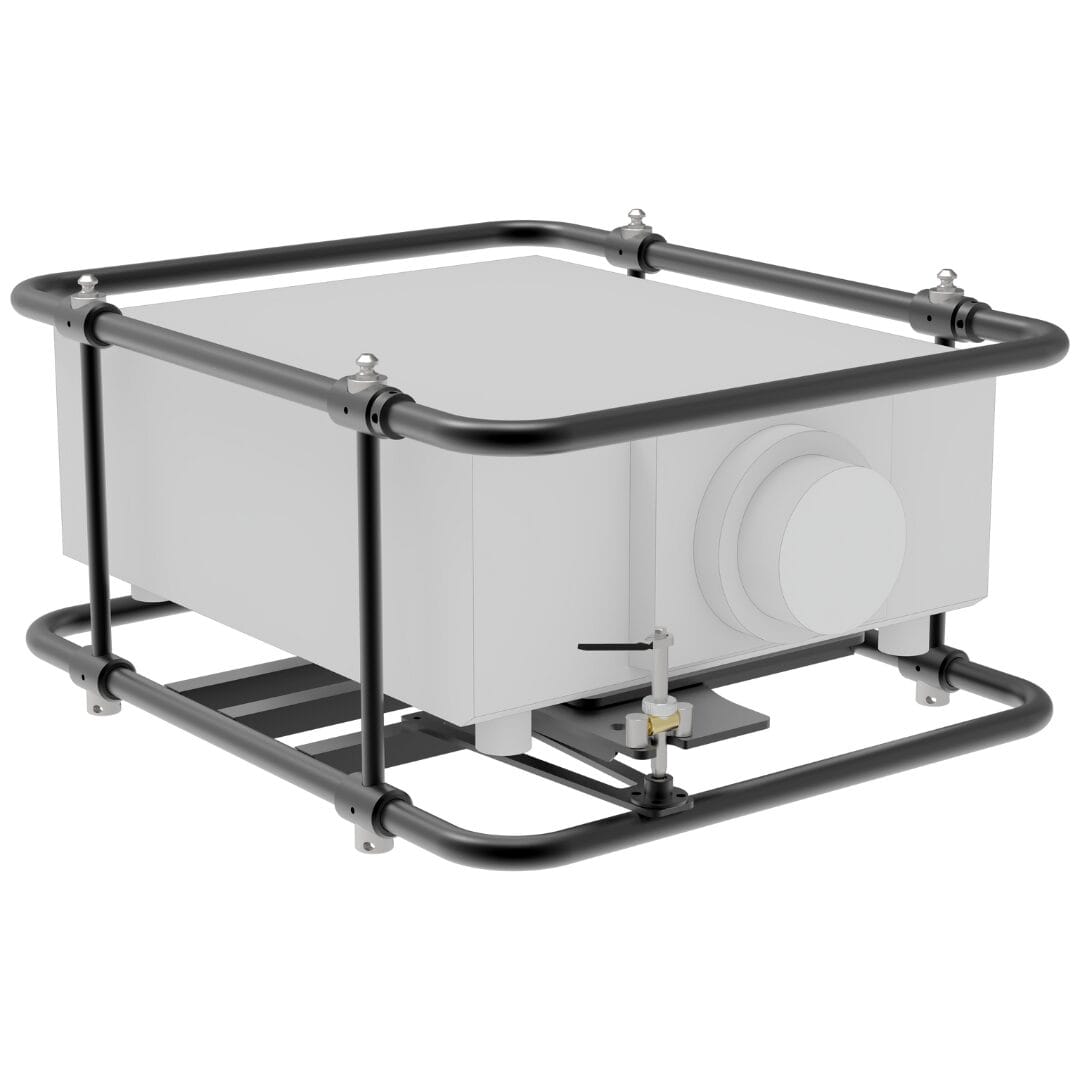

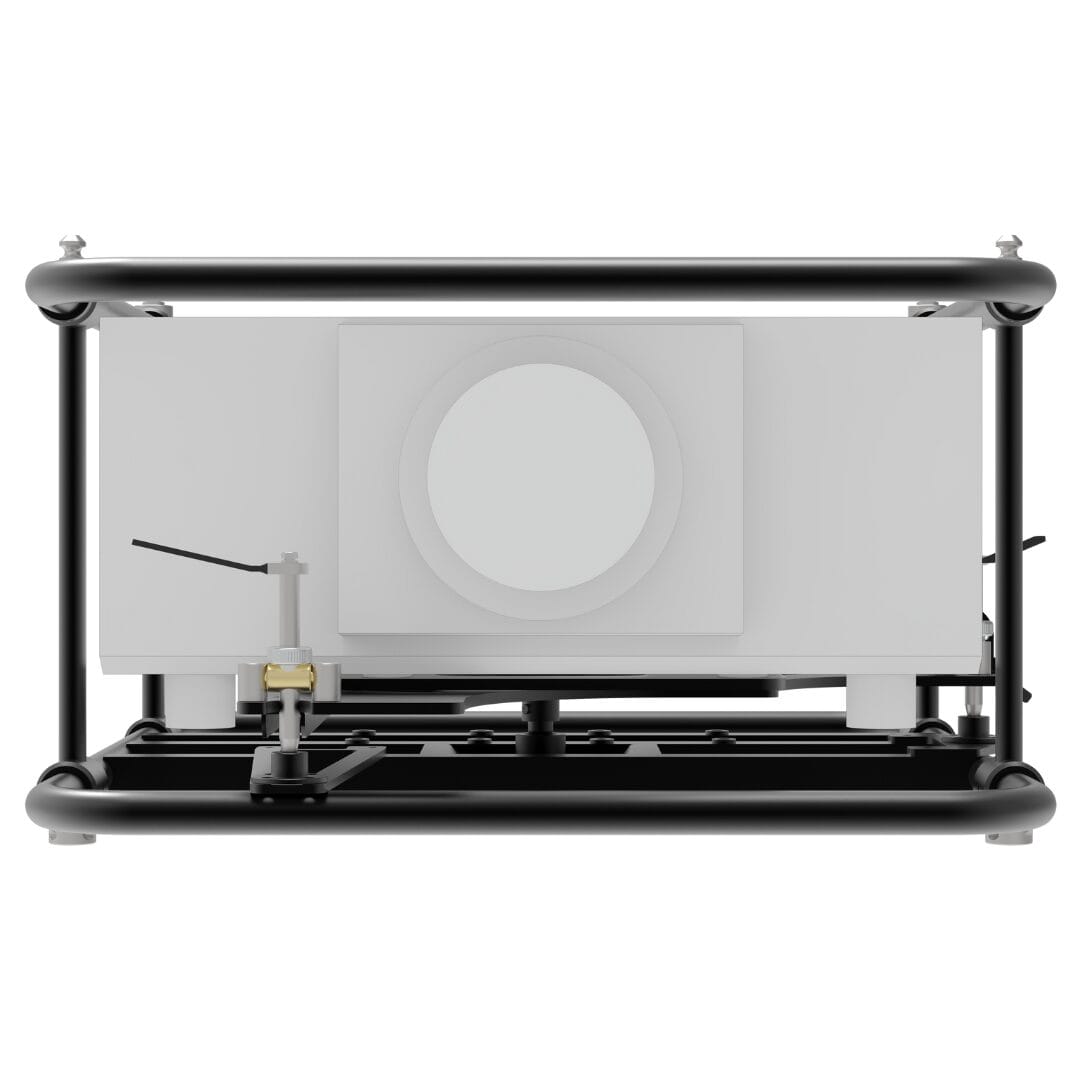

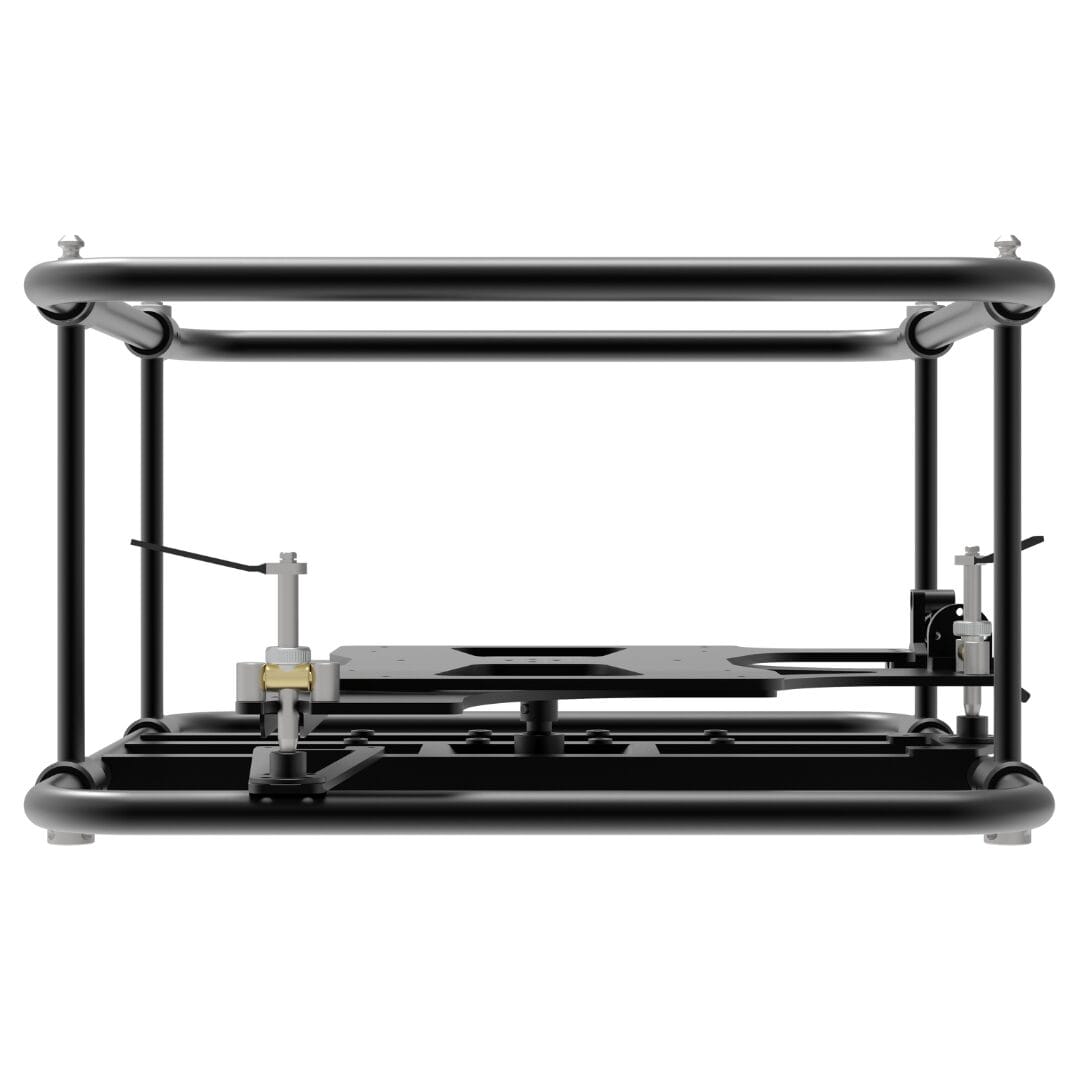

Microadjustable Rigging cage for videoprojector mounting Panasonic DZ21K
Robust, resistant, and engineered for video-projection. Thanks to its micro-adjustment capability on all three axes, utilizing keys and ratchet mechanisms, it provides optimal focus as well as centering of image.
*Compatible with these video projectors series:
Panasonic PT-DZ21K
Panasonic PT-RZ21K
Panasonic PT-RZ12K
Panasonic PT-RQ22K
Panasonic PT-RQ13K
Panasonic PT-RS20K
Panasonic PT-RS11K
Panasonic PT-DS20K
Panasonic PT-DZ16K
Panasonic PT-DW17K
Stacking
APPROVED FOR A MAXIMUM OF 3 STACKING CAGES
Maximum Ground Stack: 3 Frames
Maximum Suspended Stack: 2 Frames
Adjustment
3 points of adjustment
2 control the Roll and Pitch adjustments
1 handle operates the Yaw adjustments
Features

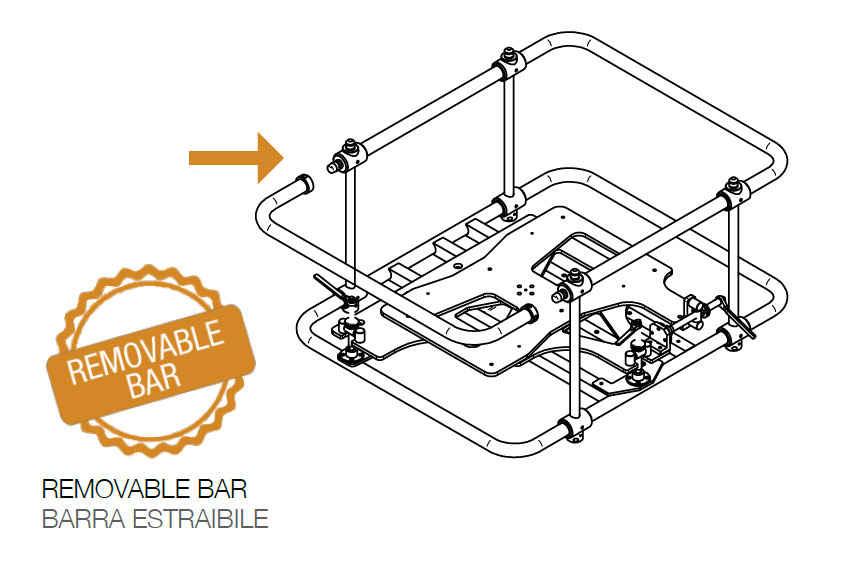

Extentio removeble bar
Clump to Truss: K-TILT
Clump to Chain: EYE BOLD
Swivel heads
Compatibility
With 3rd party stacking frame cage
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Material | Steel and Aluminum |
|---|---|

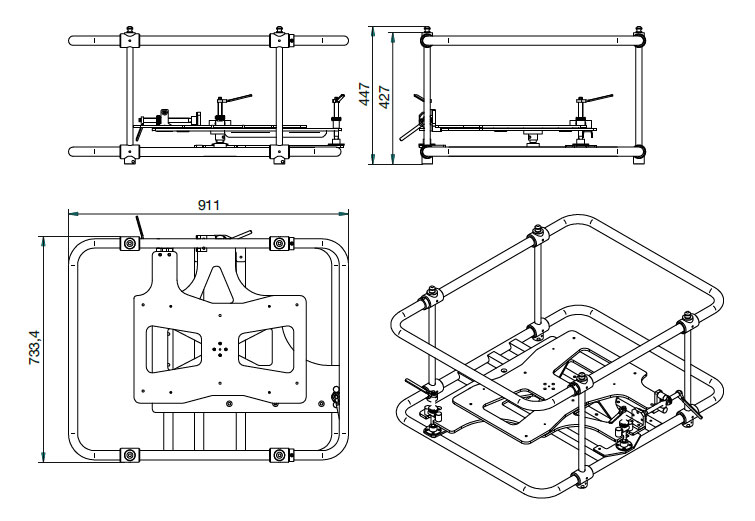

| Dimension | 66x73x39 cm |
| Weight | 20 kg |
| Pitch | +/3° |
| Roll | +/3° |
| Yaw | +/5° |
