Advanced Kalibration Systems

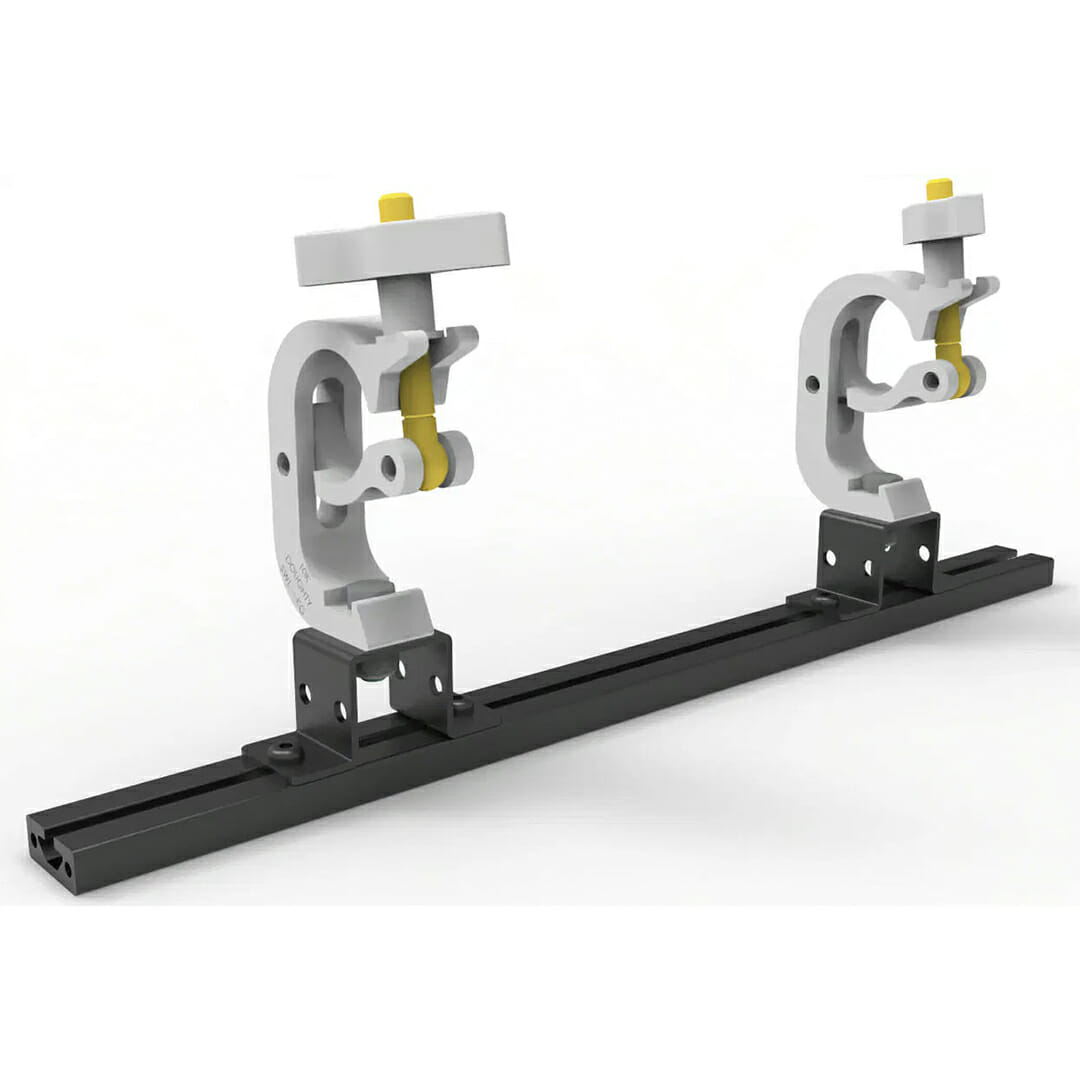

Aluminium bar with 2 sliding Clamps that can be attached to the MATRIX BETA cage: REAR or TOP; while the attachment can be made to a VERTICAL or HORIZONTAL truss.

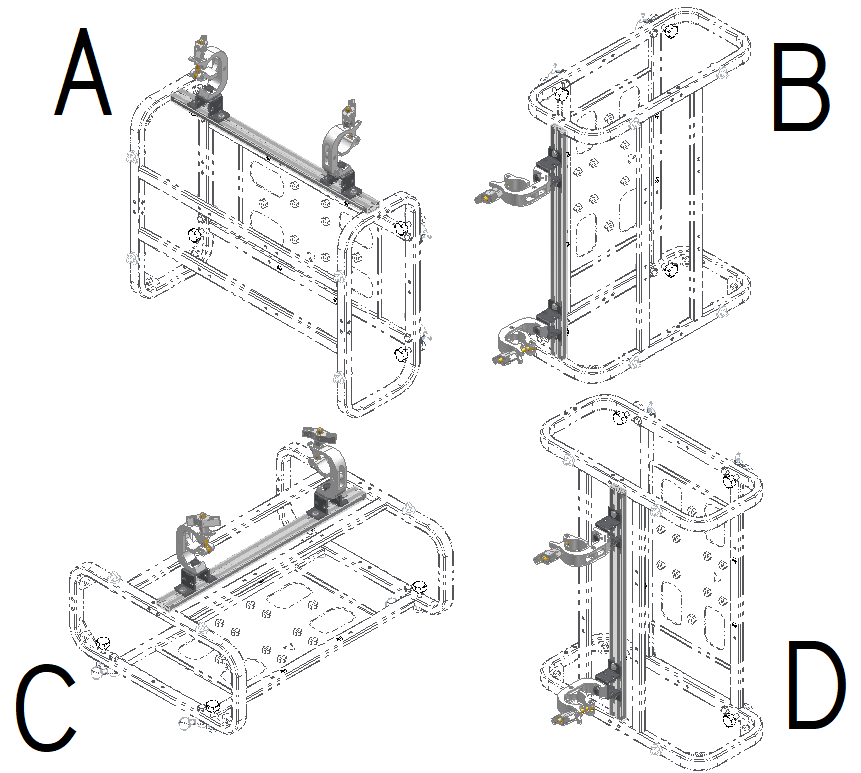

There are therefore four main cases when looking at the graph:

1. Rear fastening – horizontal truss – floor projection;
2. Rear fastening – vertical truss – portrait projection;
3. Top fastening – horizontal truss – landscape projection;
4. Top fastening – vertical truss – portrait projection;



The 2 Clamps are included and are equipped with a facilitated truss fastening system.

*Compatible with cages Matrix Beta 22500

Certification IMQ: EN 62368-1:2014+A11:2017 clause 8.7
