P/N: 23602
Compatible with the videoprojector series Optoma ZU1050 e 860 and similar.

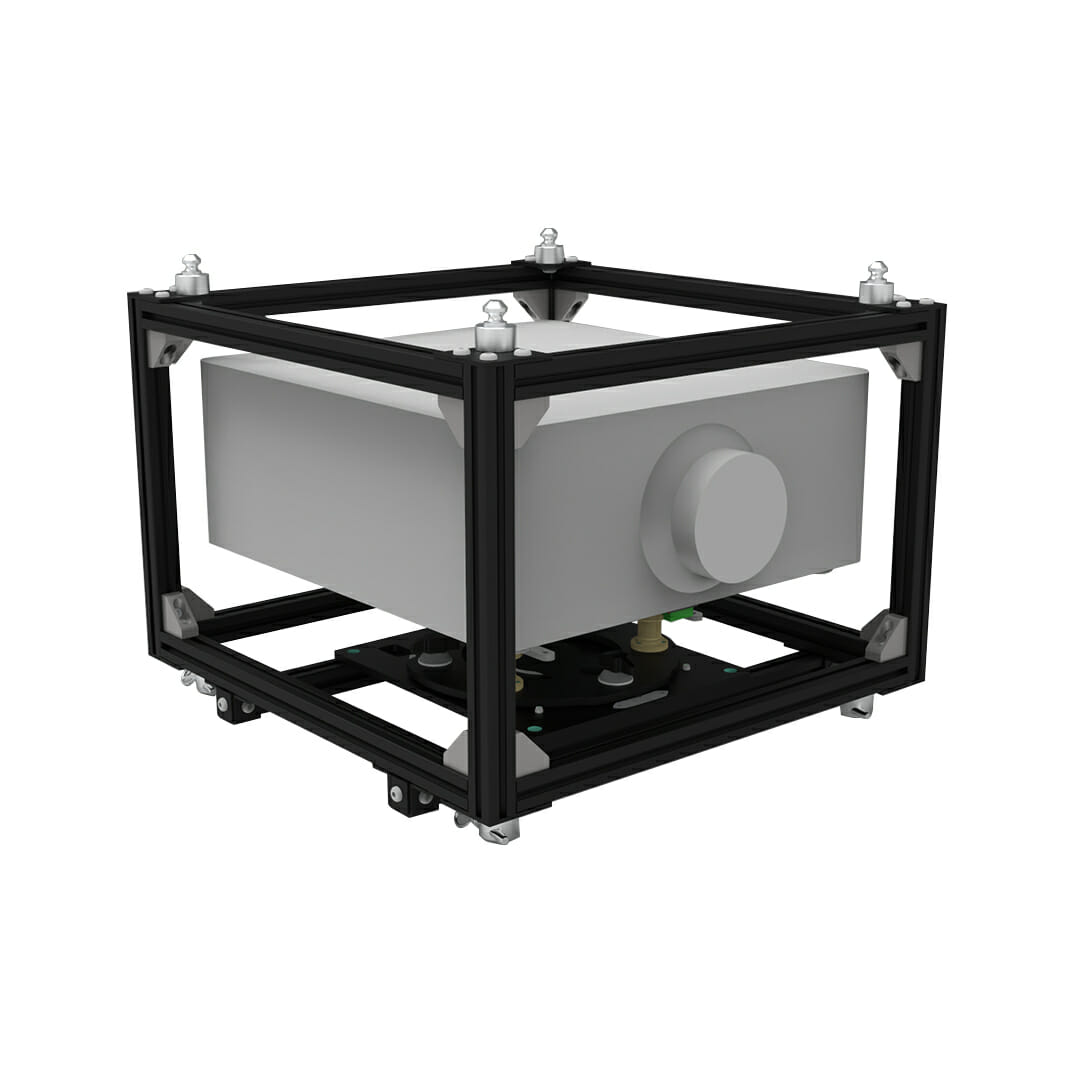

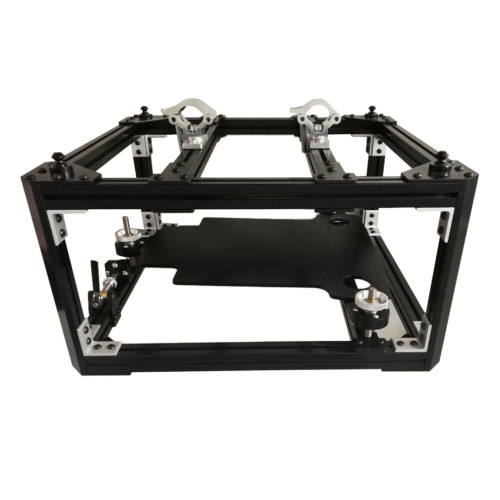

It is an aluminium tubular profile frame (cross-section 30×30) with iron reinforcement bars, thus combining sturdiness, lightweight and ease of use. This is why it can be used for any PROJECTION type (Landscape, Portrait, Floor) and can adapt to any INSTALLATION method (truss, ceiling, wall and floor).

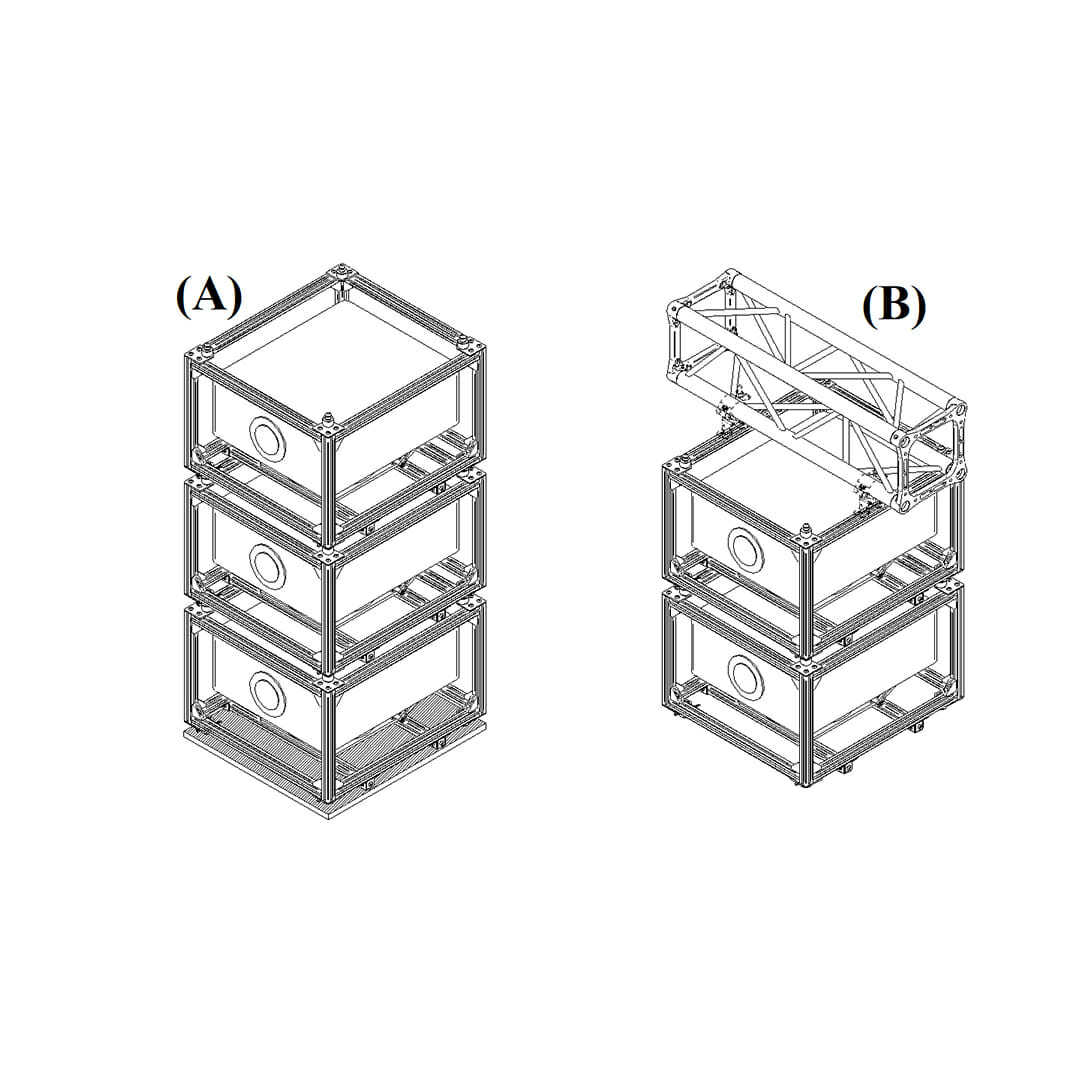

It is equipped with its own STACKING system:
A) For floor installation, it is type-tested for 3 cages:
B) For hanging installation, up to 2 cages.

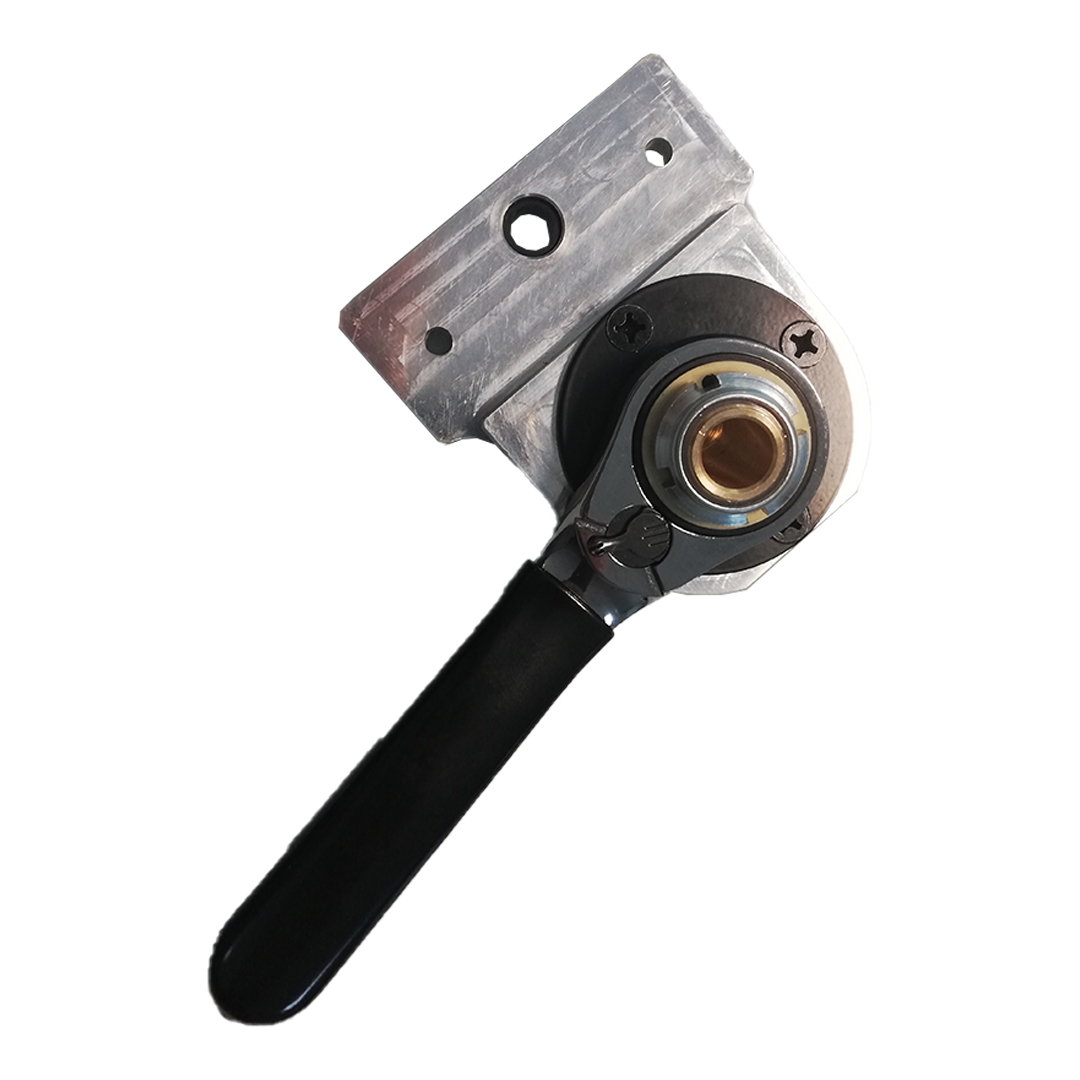

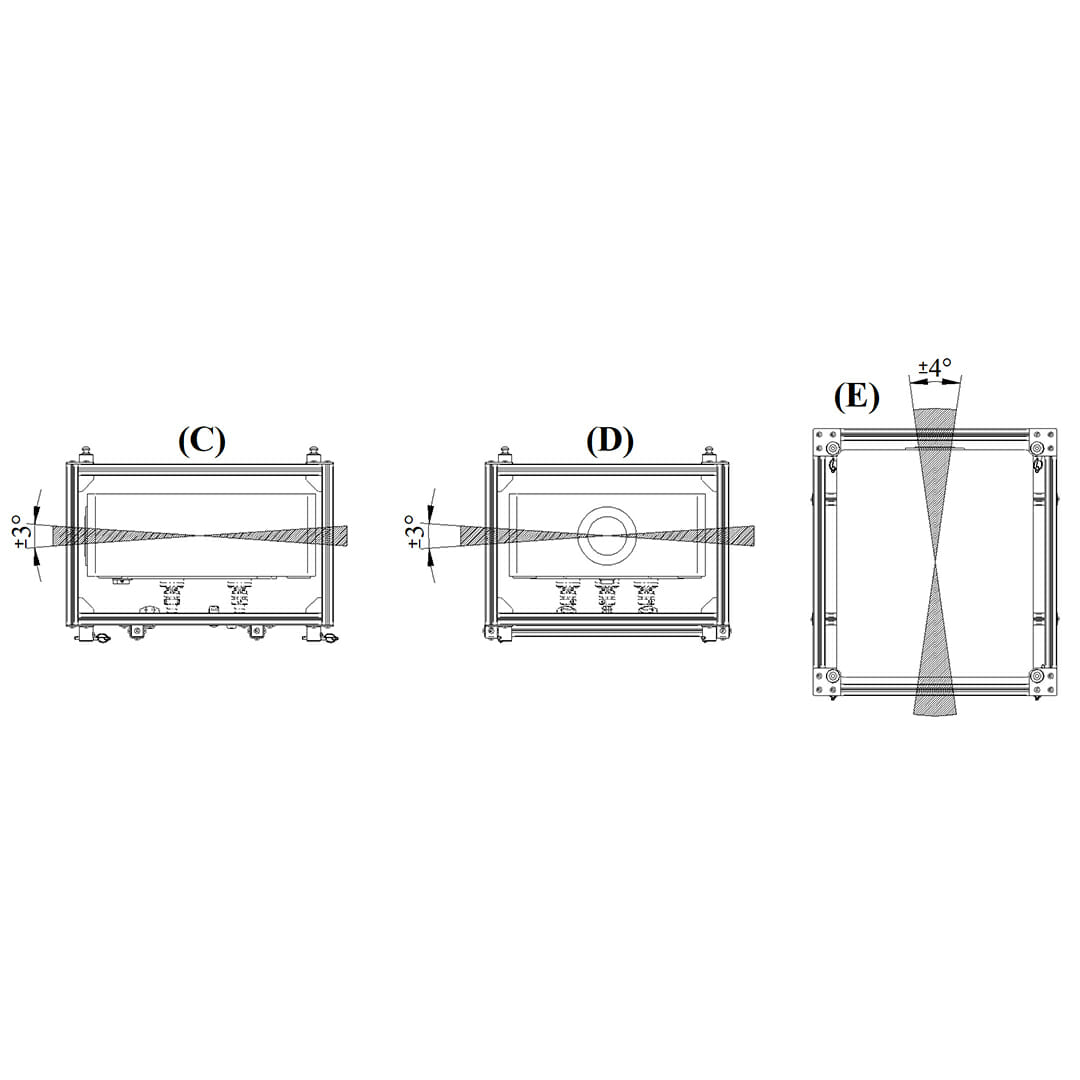

The MICROMETRIC adjustment system on 3 rotation axes is based on the KITE system fastened to the structure (which can be easily removed without any tools, so that it can be used also without cage):
C) +/- 3° pitching;
D) +/- 3° roll;
E) +/- 4° yaw.
Together with the cage, you can order the FLIGHT-CASE (Cod:22813) to host the cage itself and is also equipped with an additional compartment 15x56x43cm which can also be divided by ordering a partition wall (Cod: 22827), up to maximum 2 partition walls.
Certification IMQ: EN 62368-1:2014+A11:2017 clause 8.7
Every EUROMET product is manufactured in conformity with regulatory standards CE, regarding IEC 60065 paragraph 19 and IEC 60950-1 paragraph 4.2.1, inherant to the security of suspended loads and anti-tipping for monitor supports.
