Advanced Kalibration Systems

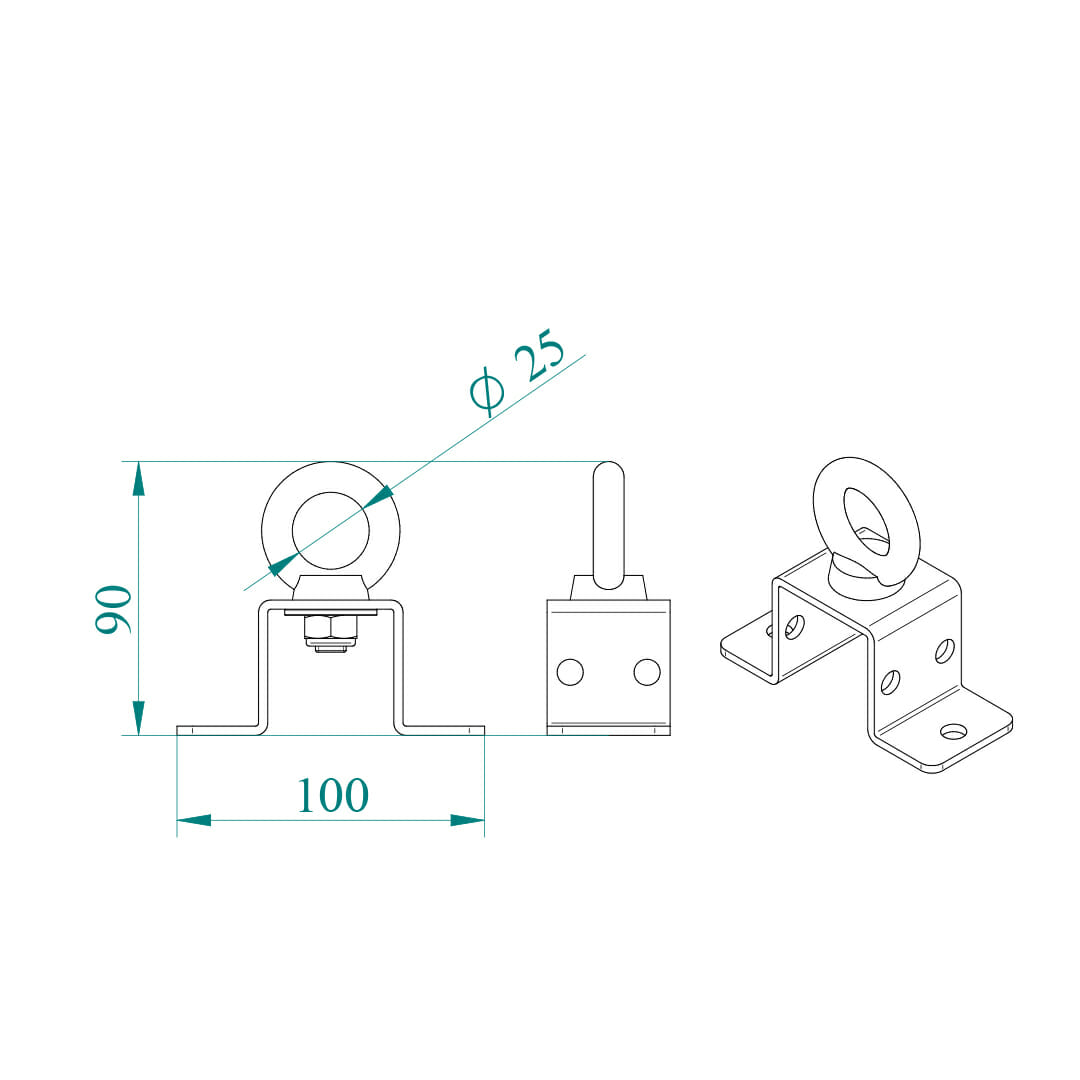

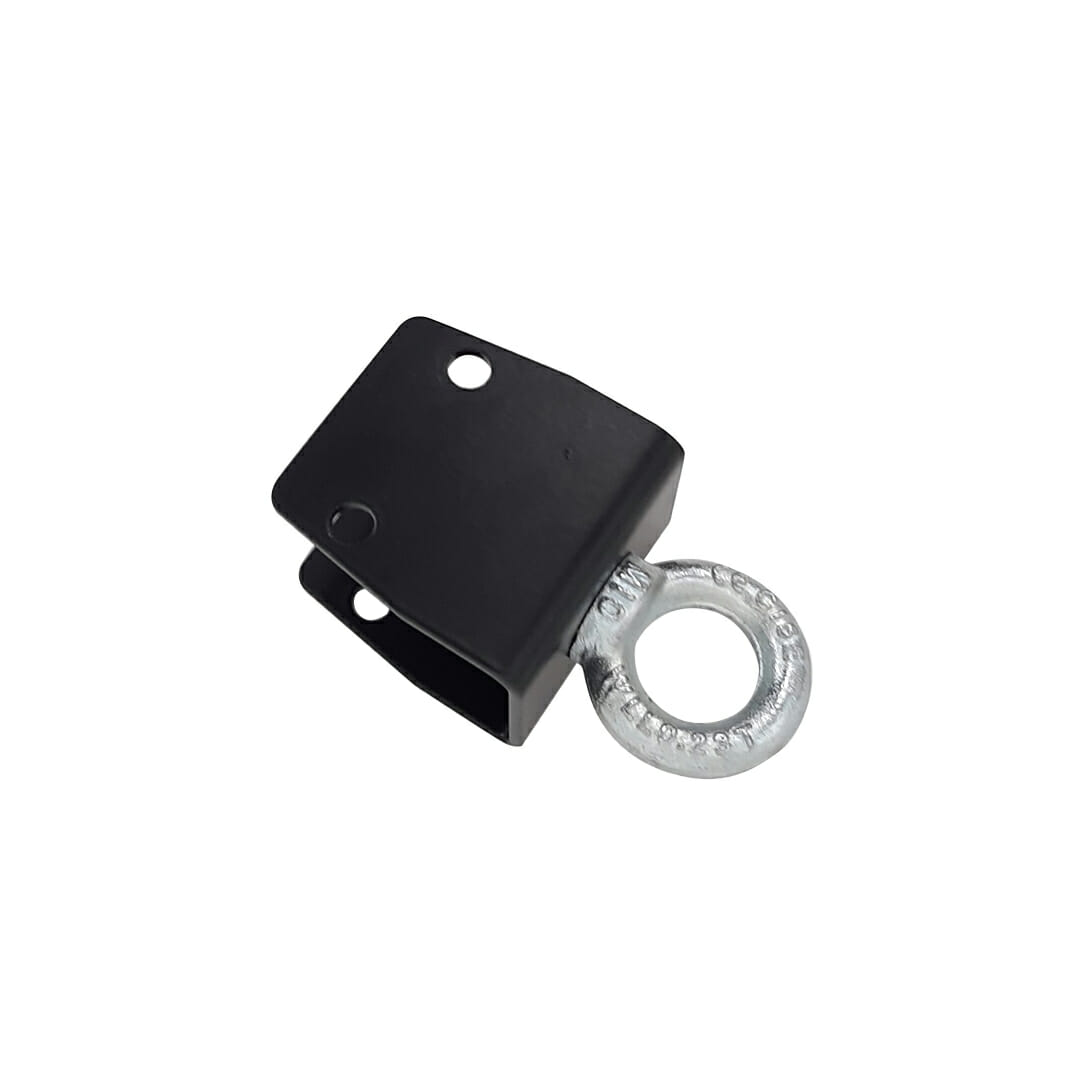

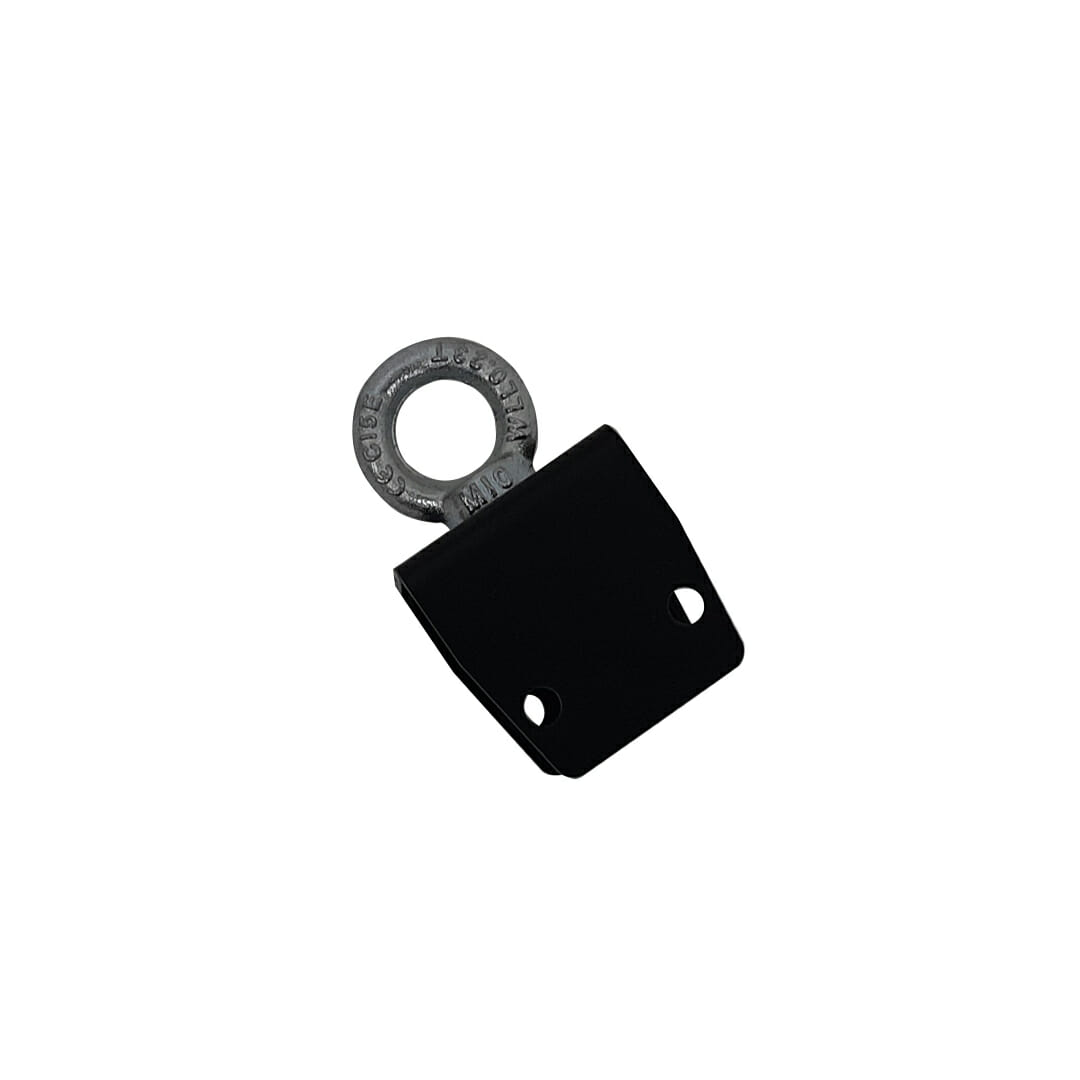

UNIKA Optional- Omega stick with single Eyebolt

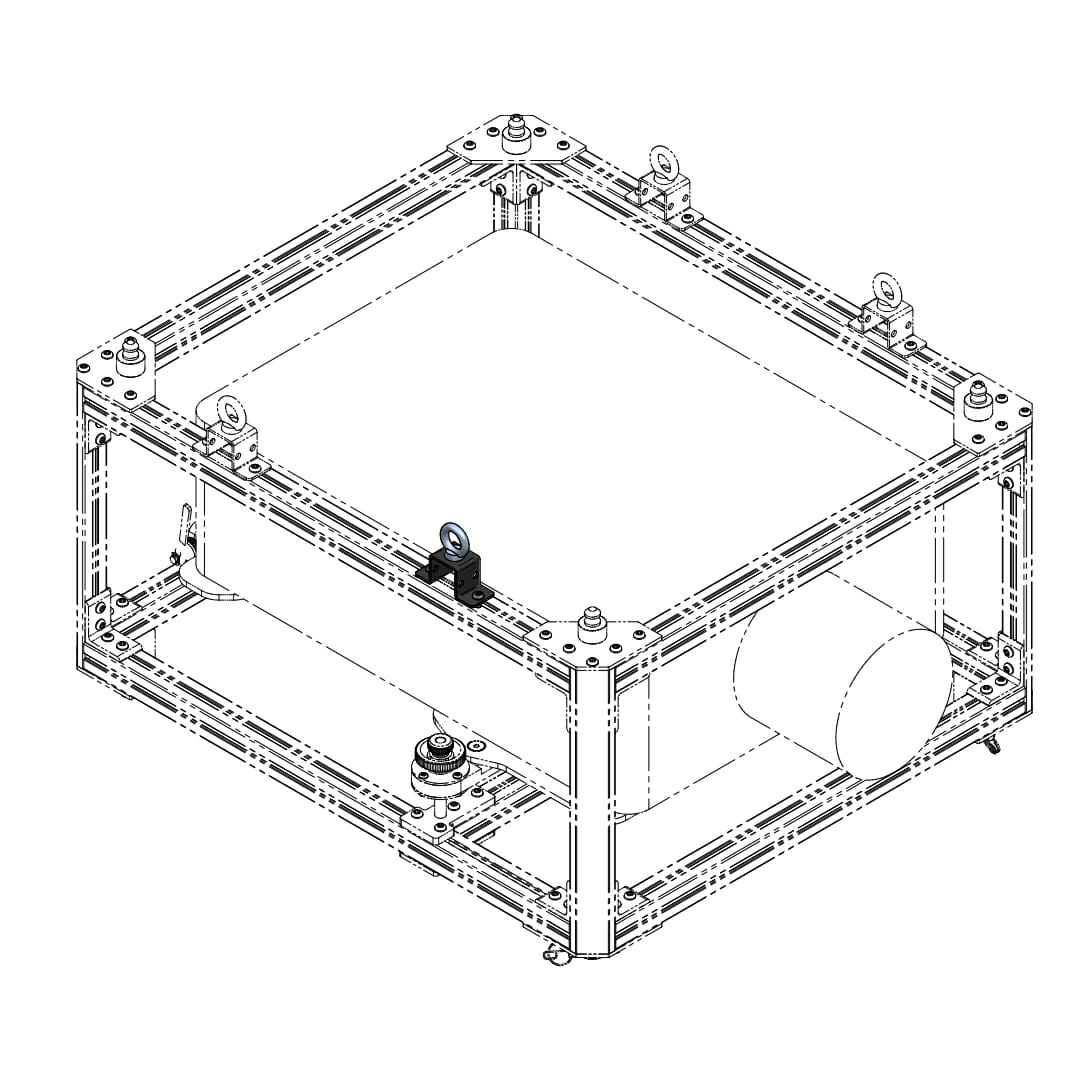

It is a universal accessory compatible with all UNIKA cages that allows an Eyebolt to be fitted directly to the cage, allowing the latter to be fixed directly to the truss.
Every UNIKA is compatible with this optional item, which can be mounted on 3 sides:
- Upper side (landscape installation)
- Lateral (portrait installation)
- Rear (floor installation)

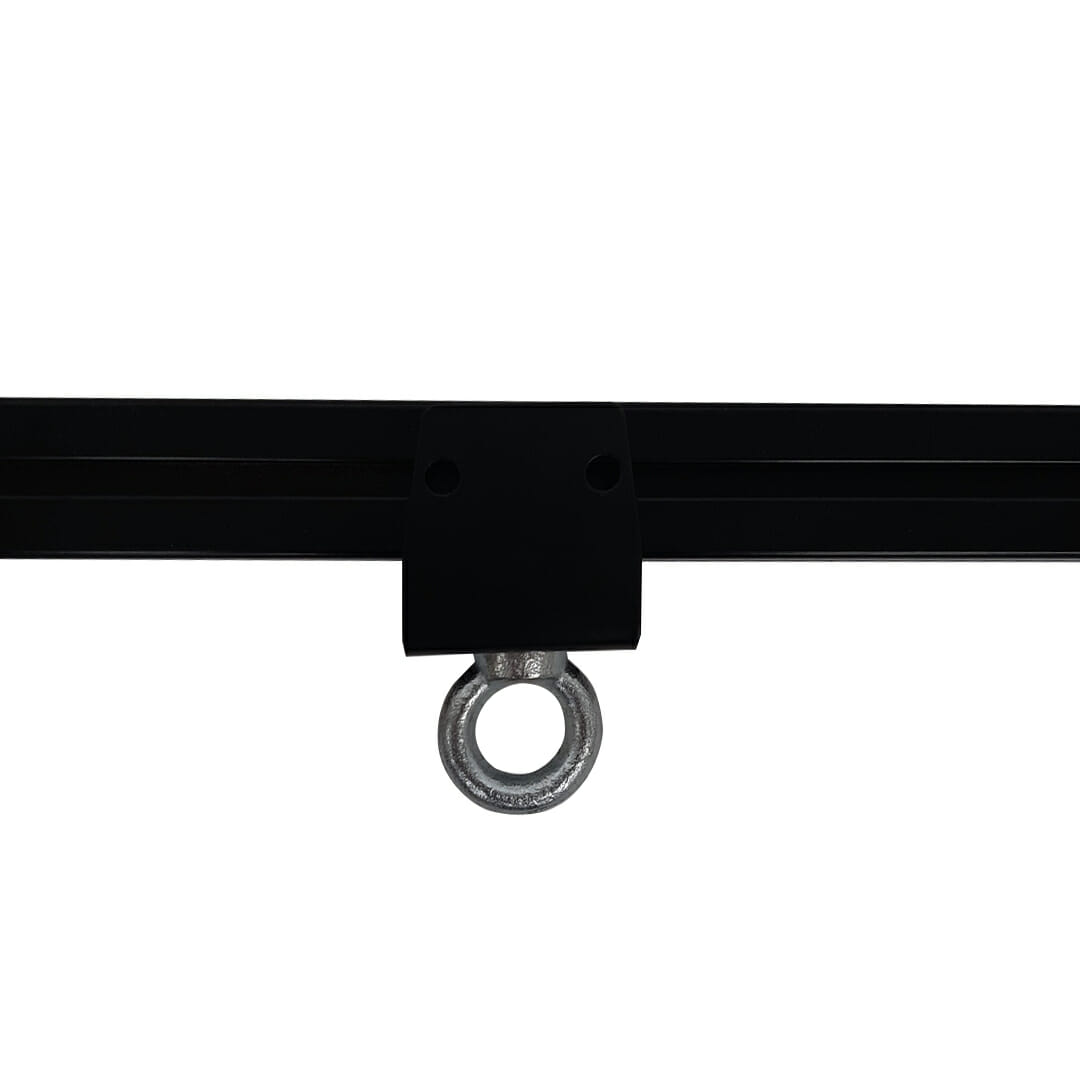

The Eyebolt can slide along the cage profile bar (thanks to a simplified lock/unlock system) and rotate on itself, allowing it to adapt to many different cases and installation combinations.
The code corresponds to a single Eyebolt, although it is NECESSARY TO USE 4 EYEBOLTS for centre of gravity and balance reasons.
Compatible cages: all UNIKA cages
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Installation | Hanging cage |
|---|---|
| Mode | Floor, Landscape, Portait |
| Material | Iron |
| Color | Silver, Black |
| Treatments | Powder coated |
| SWL (SAFE WORKLOAD) | 120 Kg (for each eyebolt) |
| clamp fixing screw | M10 |
