Optional UNIKA – Additional profile with 2 Clamps (Landscape)

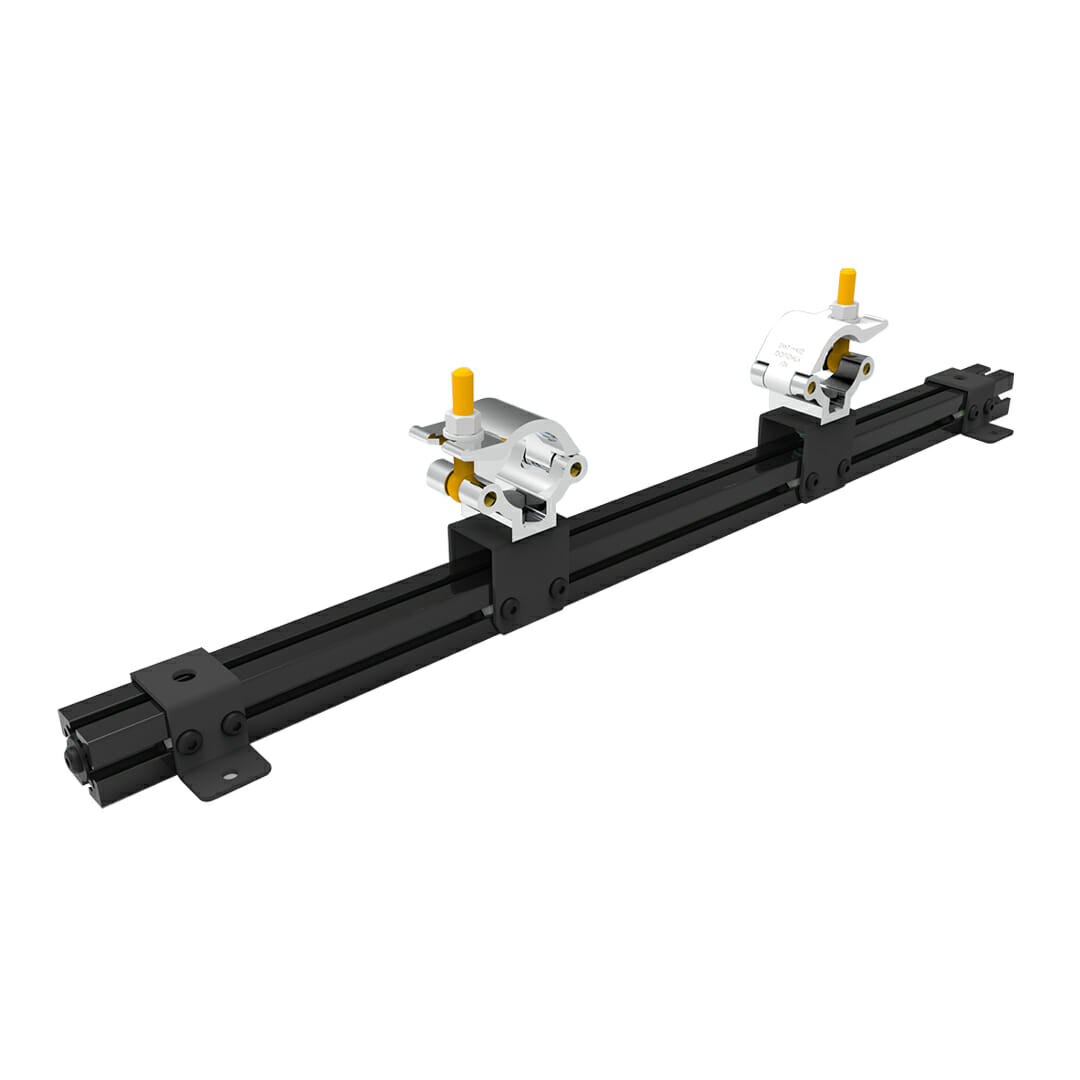

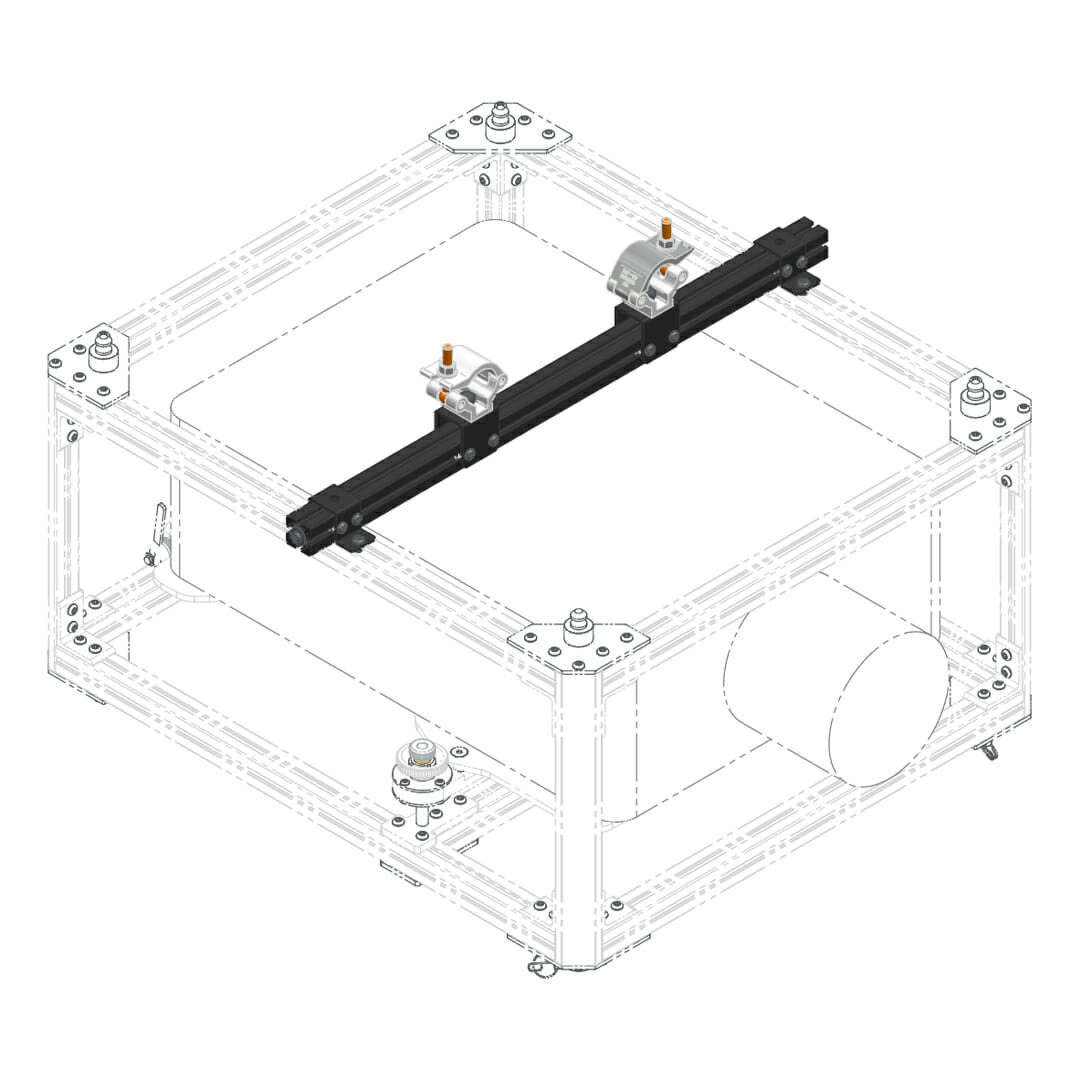

It is a universal accessory compatible with all UNIKA cages, it allows the installation of a TRUSS cage in LANDSCAPE position, thanks to a system made up of a profile bar on which 2 Clamp are mounted. Both the bar and the Clamp can slide (thanks to a simple lock/unlock system), allowing them to be aligned (and the distance between them to be adjusted) in any installation situation.
The code corresponds to a single “profile bar + 2 Clamps” which can be used both individually and in pairs, based on the required stability and installation difficulty.
The Clamps used (compatible with most Ø50mm truss types) has a 500kg load capacity for each Clamp and are equipped with a simplified locking system.

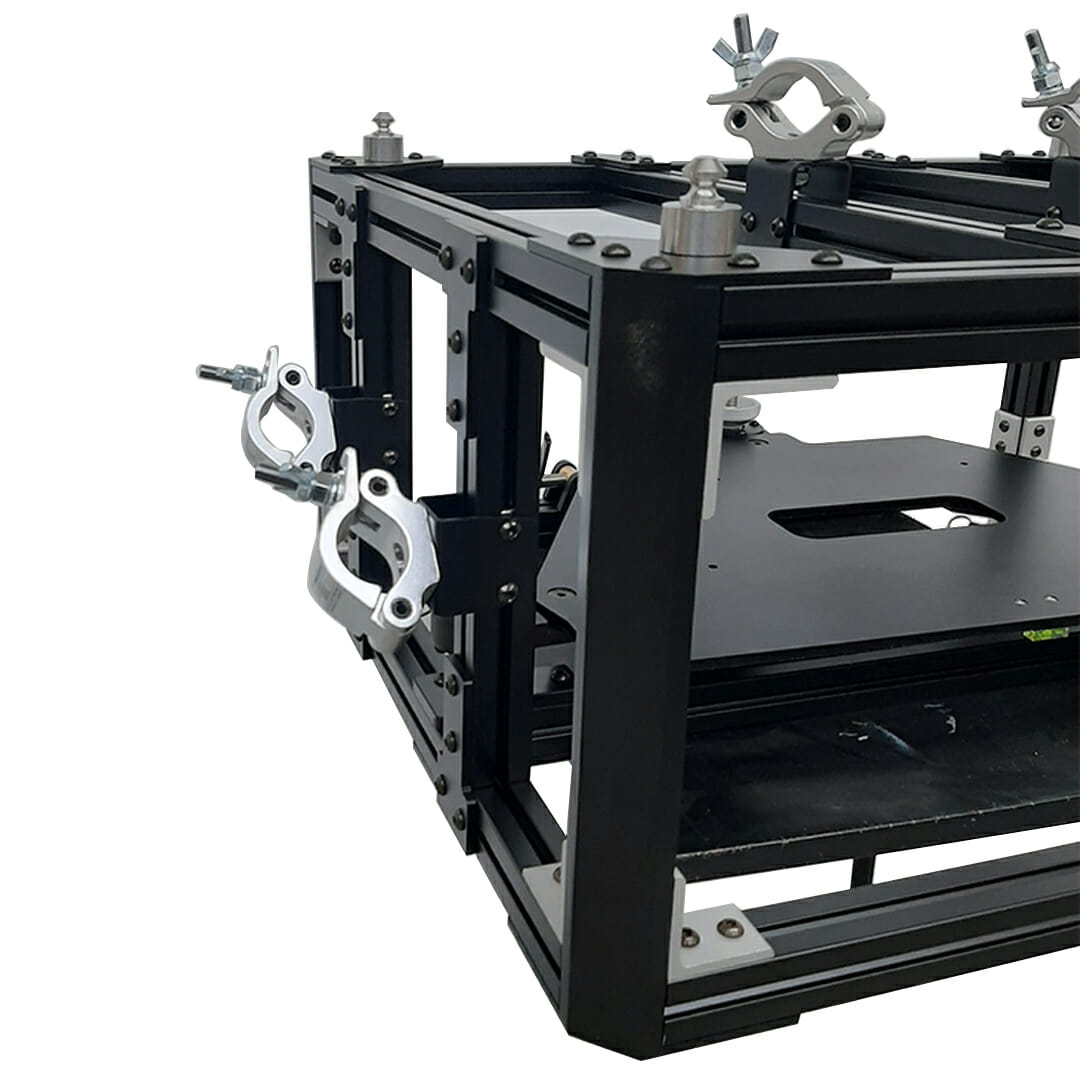

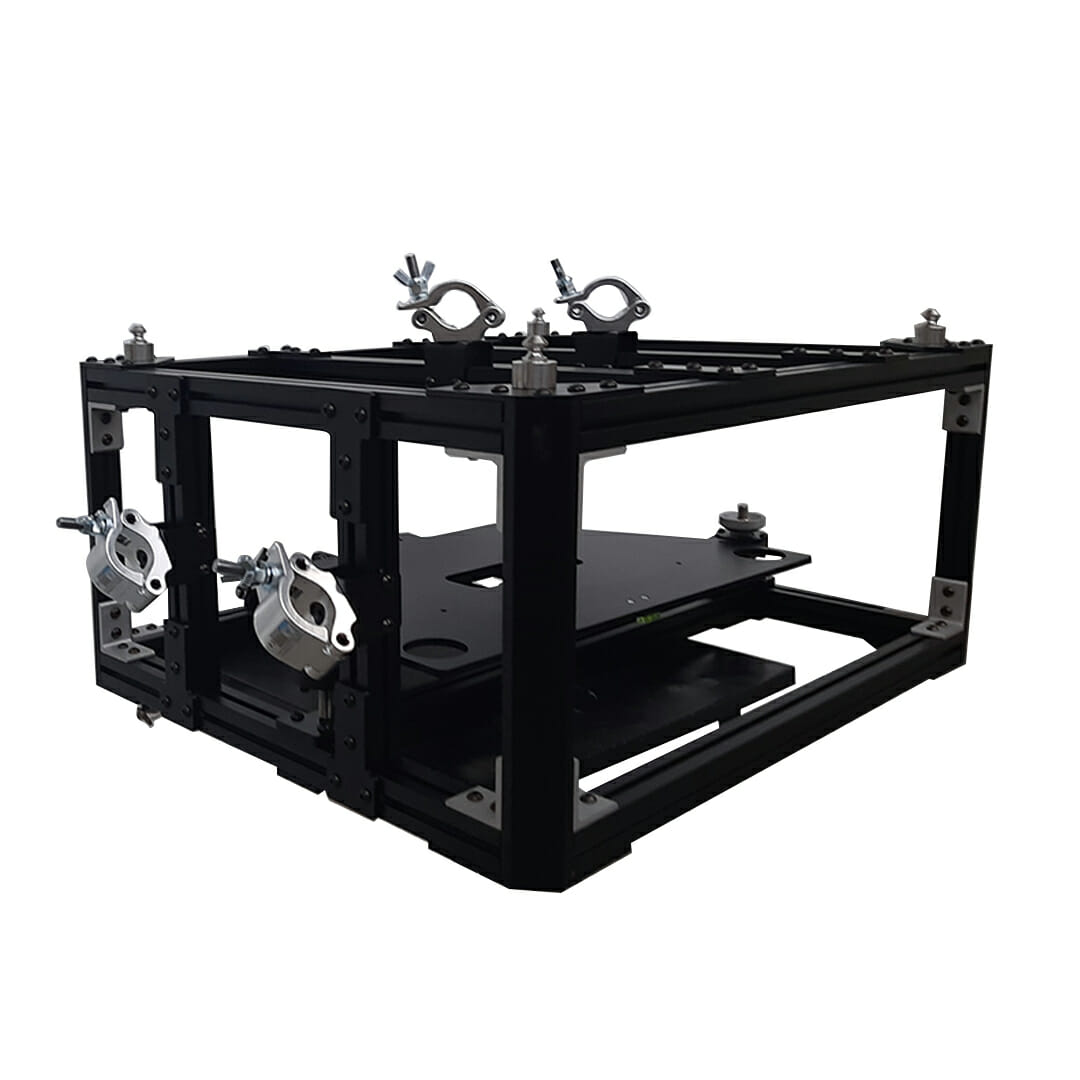

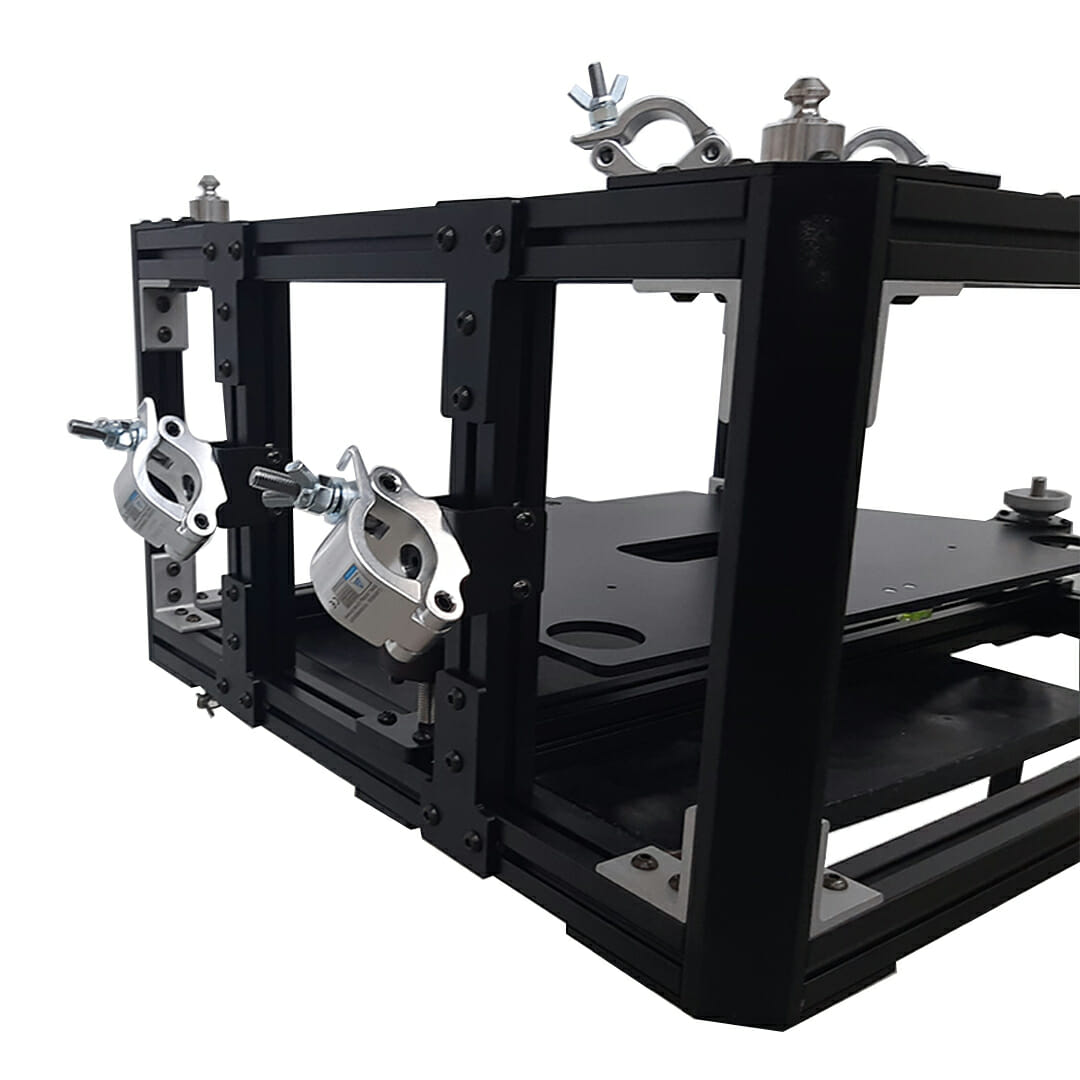

Compatible cages: all UNIKA cages
Certification IMQ: EN 62368-1:2014+A11:2017 clause 8.7
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.

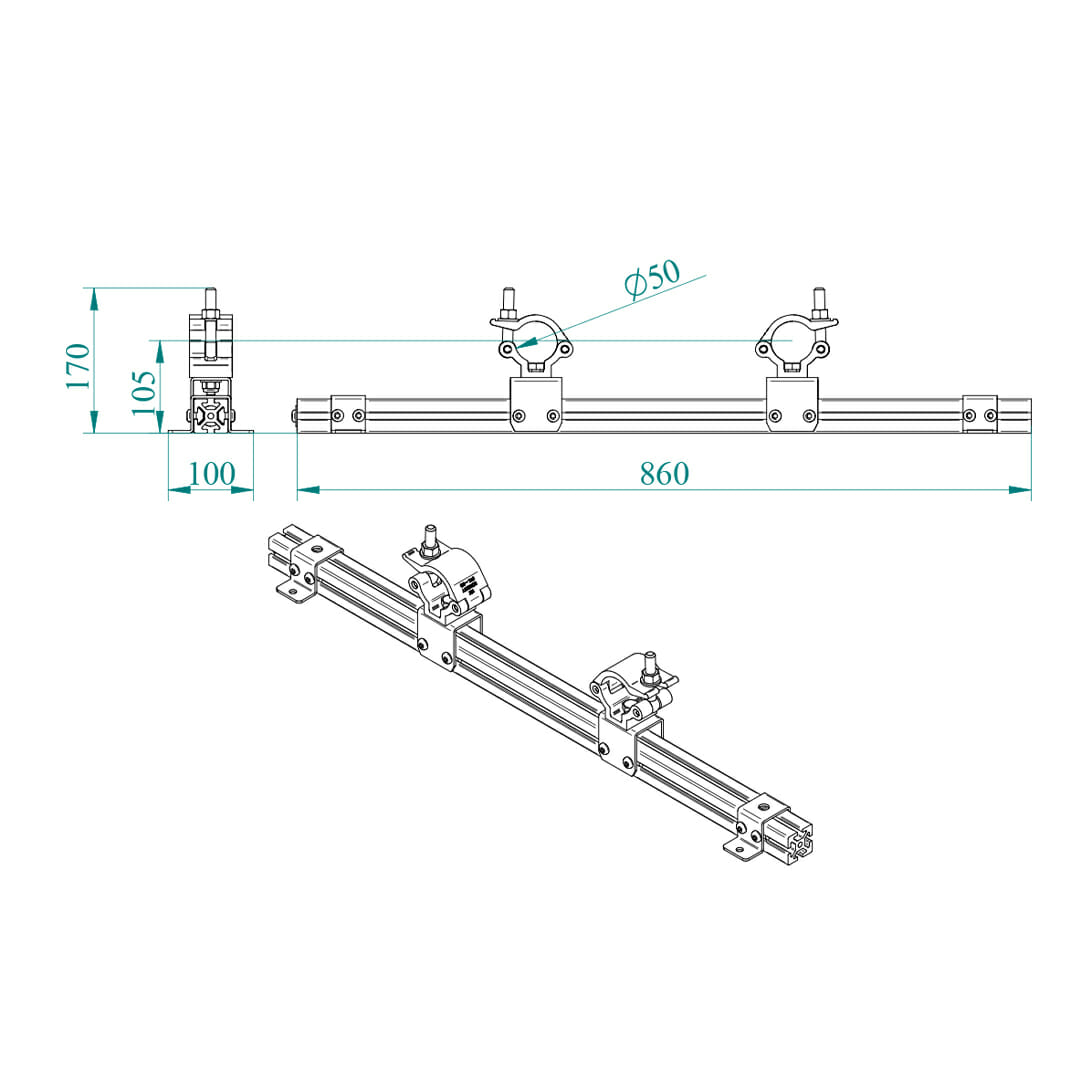

TECHNICAL SPECIFICATIONS
| Installation | Truss-mounted cage |
|---|---|
| Mode | Landscape |
| Material | Iron – Aluminum |
| Color | Silver, Black |
| Treatments | Powder coated |
| clamp fixing to truss | 48 – 51 mm |
| SWL (SAFE WORKLOAD) | 500 Kg (each Clamp) |
| clamp fixing screw | M12 |
