P/N: 19479

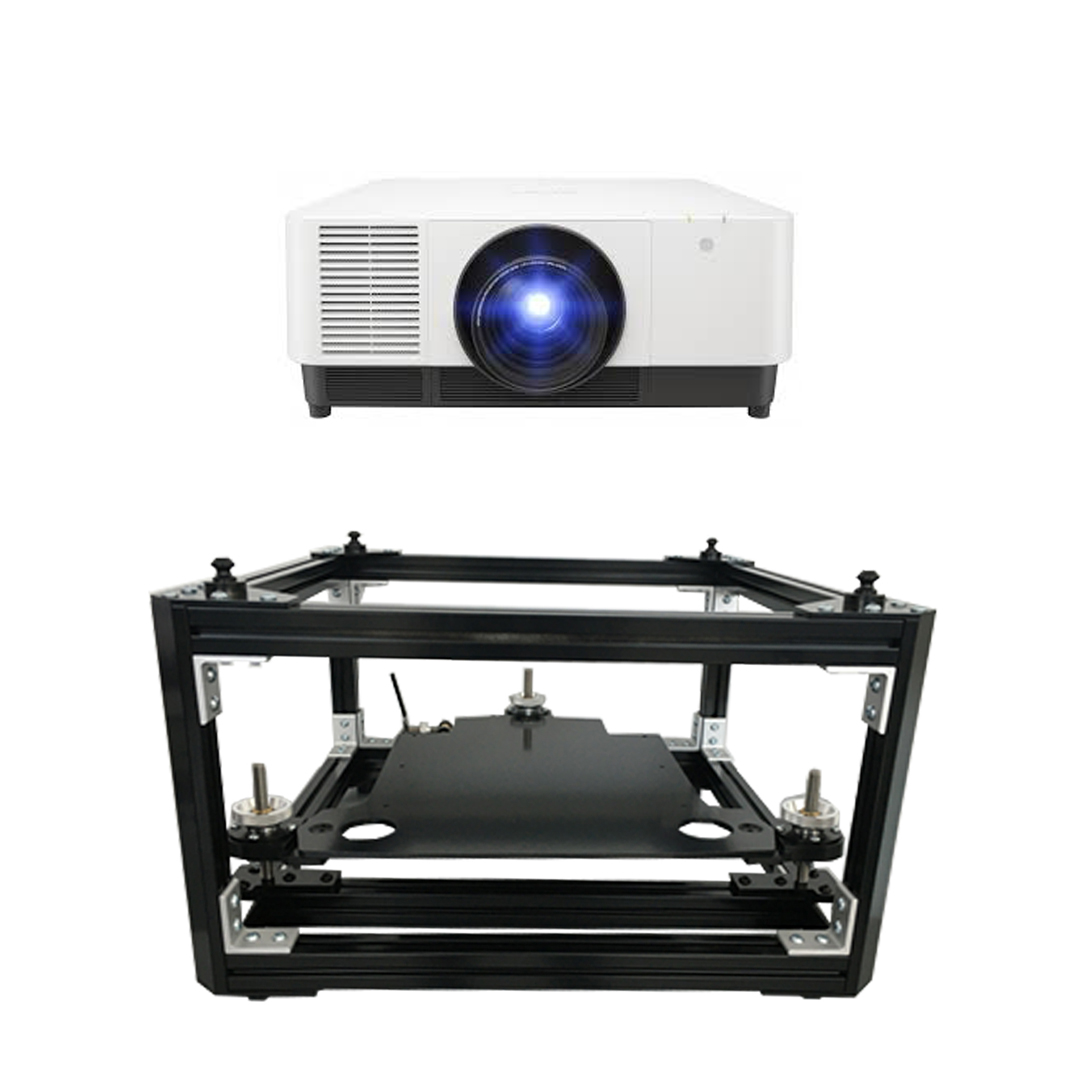

The UNIKA video-projector housing system is equipped with a robust, resilient frame, developed for stacking projectors. Thanks to its micro-regulation system on three axes with specific either ratchet handle or wheels handles it is possible to achieve optimum focusing and image centering.
Alternative version: UNIKA I – SONY VPL – FHZ120_FHZ90L – Ratchet handle can be ordered with code 19480
*Compatible with Sony VPL FHZ120/FHZ90L
Stacking
APPROVED FOR A MAXIMUM OF 3 STACKING CAGES
Maximum Ground Stack: 3 Frames
Maximum Suspended Stack: 2 Frames
Adjustment
4 points of adjustment
2 control the Roll and Pitch adjustments
1 handles position the height of the proyection
1 handle operates the Yaw adjustments
Features
3 mounting positions
2 possible mounting plates bracket to add at the Landscape projection also the Portrait or Floor-Projection orientations
Leight adjustment bar
Clump to Truss: clump system bars integrated in the UNIKA system
Clump to Chain: EYE BOLD with Sliding on truck system
Every EUROMET product is manufactured in conformity with regulatory standards CE, regarding IEC 60065 paragraph 19 and IEC 60950-1 paragraph 4.2.1, inherant to the security of suspended loads and anti-tipping for monitor supports.
