Advanced Kalibration Systems

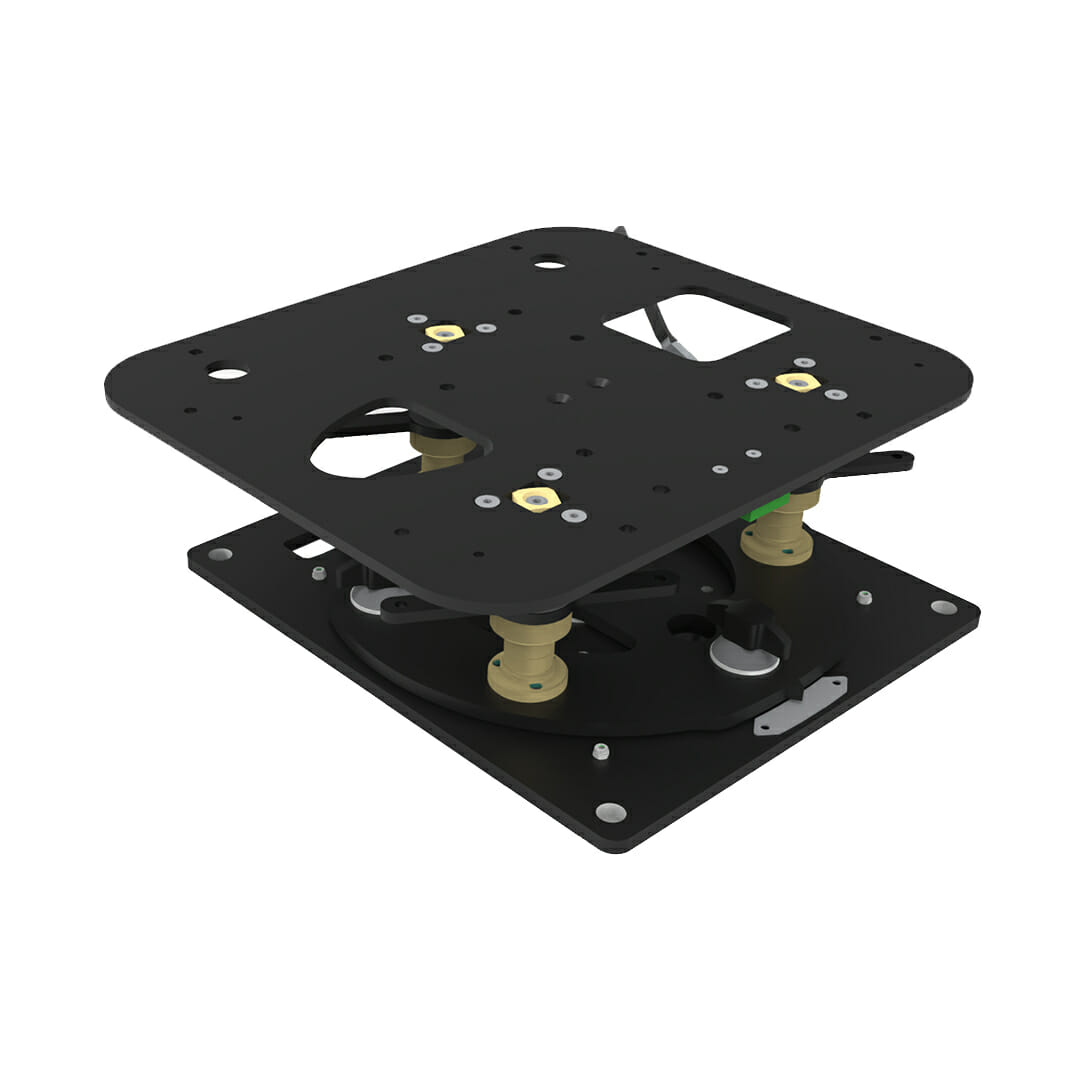

KITE compact
It is a micrometric adjustment system:
– +/- 3°: roll
– +/- 3°: pitch
– +/- 4°: yaw
Adjustment is carried out by turning 3 brass pins and a handy ratchet.
It is fitted with standard EUROMET brackets both above and below so that it can be fitted in series with other options fitted with standard brackets.

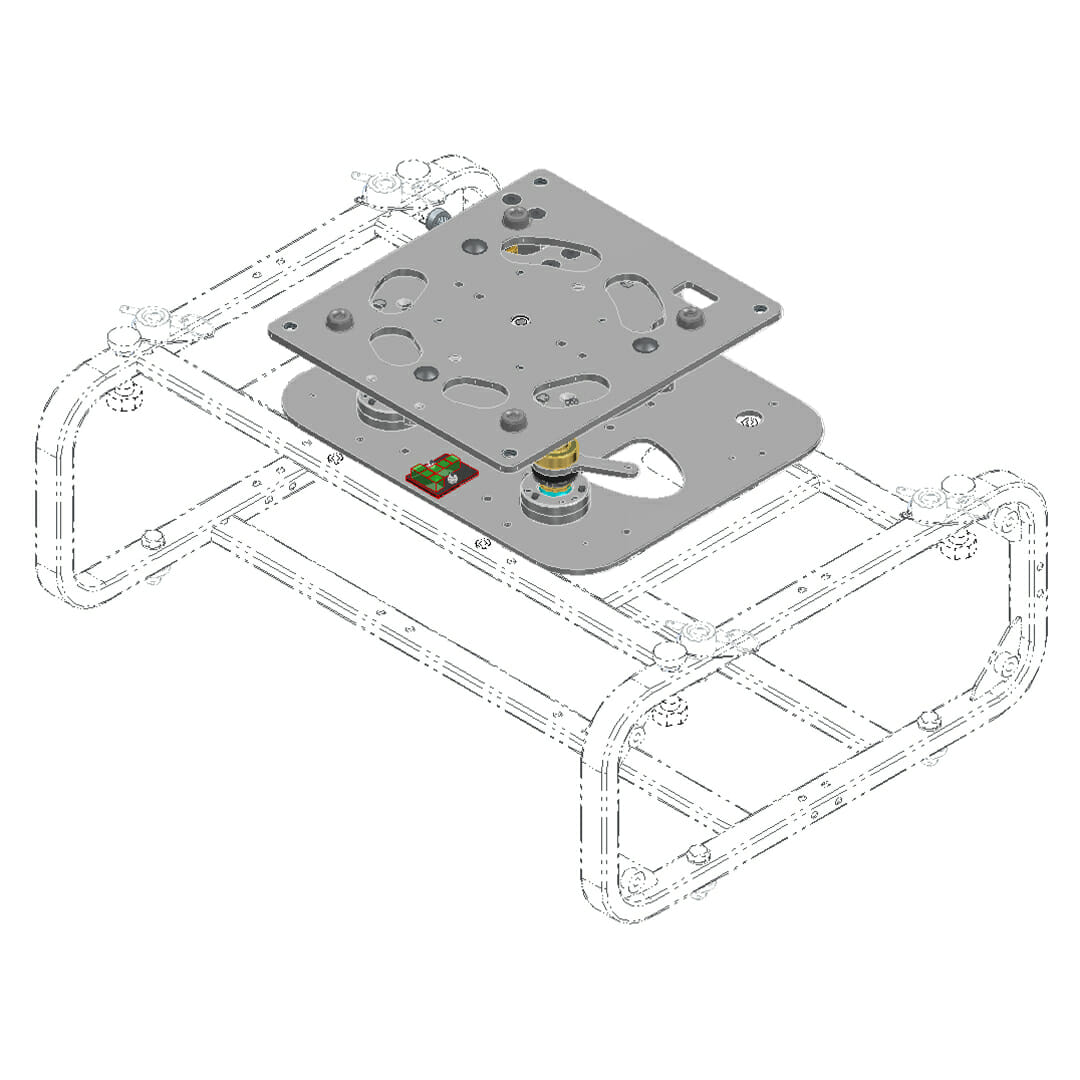

The MATRIX (both ALFA and BETA) or the entire EPSON EB and PU series of projectors (same compatibility as the 20900 cage) can be mounted on the top plate.
On the bottom plate, in addition to the standard connection, the system is ready to fasten a pair of clamps (not supplied with the case, order code 20977).
KITE is equipped with practical rubber feet for possible ground support and a system to determine the zero position and any subsequent adjustments.
Compatibility: all EUROMET products with standard connection
Certification IMQ: EN 62368-1:2014+A11:2017 clause 8.7
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| installation | Ground, Support system to the ceiling, Support system to the wall, Truss-mounted cage, Wall |
|---|---|
| Mode | Floor, Landscape, Portait |
| Material | Iron – Aluminum |
| Treatments | Powder coated |
| Color | Silver, Black |
| Pitch | +/- 3° |
| Roll | +/- 3° |
| Yaw | +/- 4° |
| clamp fixing screw | M10 |
| standard attachment | YES |
| Dimension | 200 x 180 _ 380 [mm] |
| packaging |
