UNIKA delta TITAN 47K

P/N: 25257Categories: Unika

Compatible with the videoprojector series and similar.

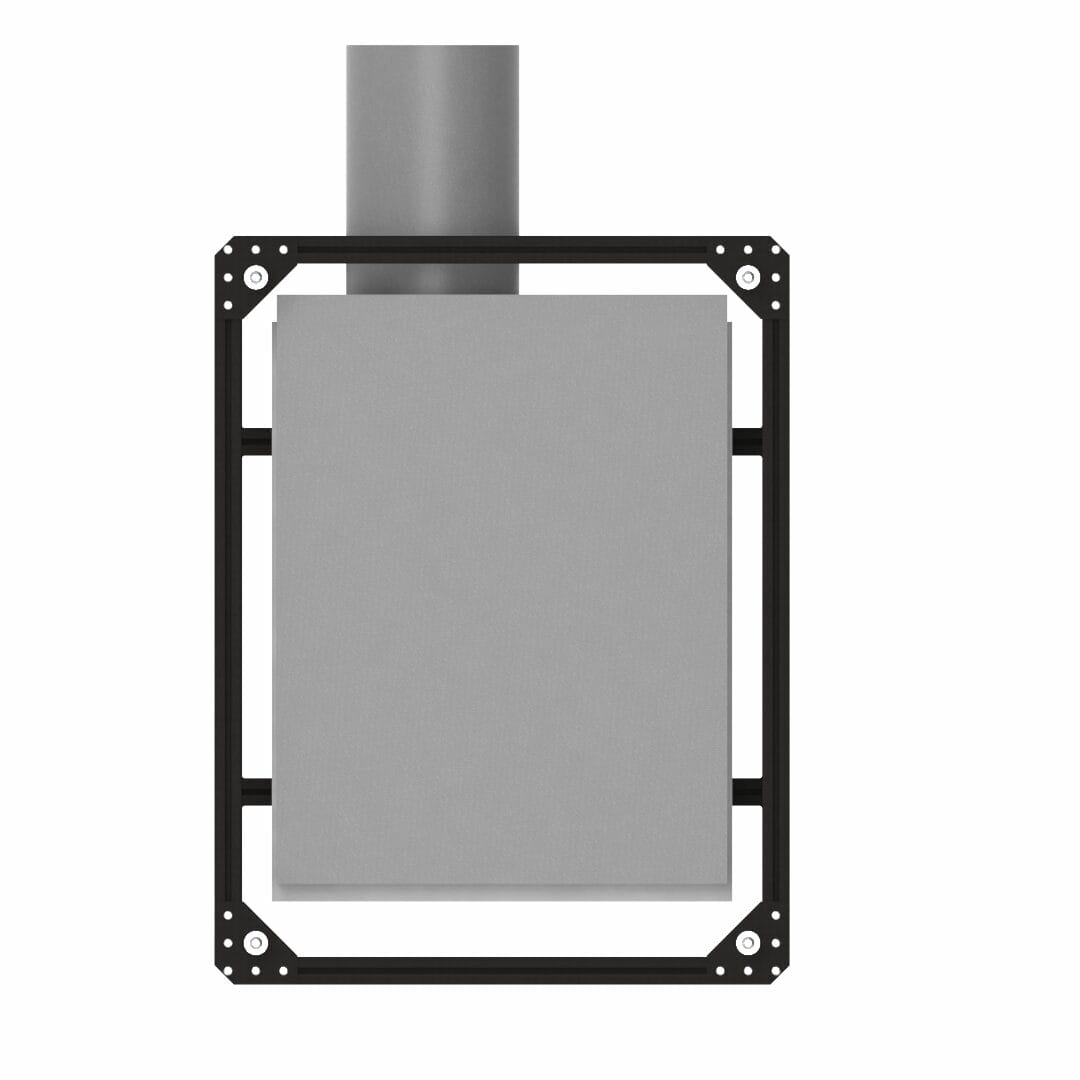

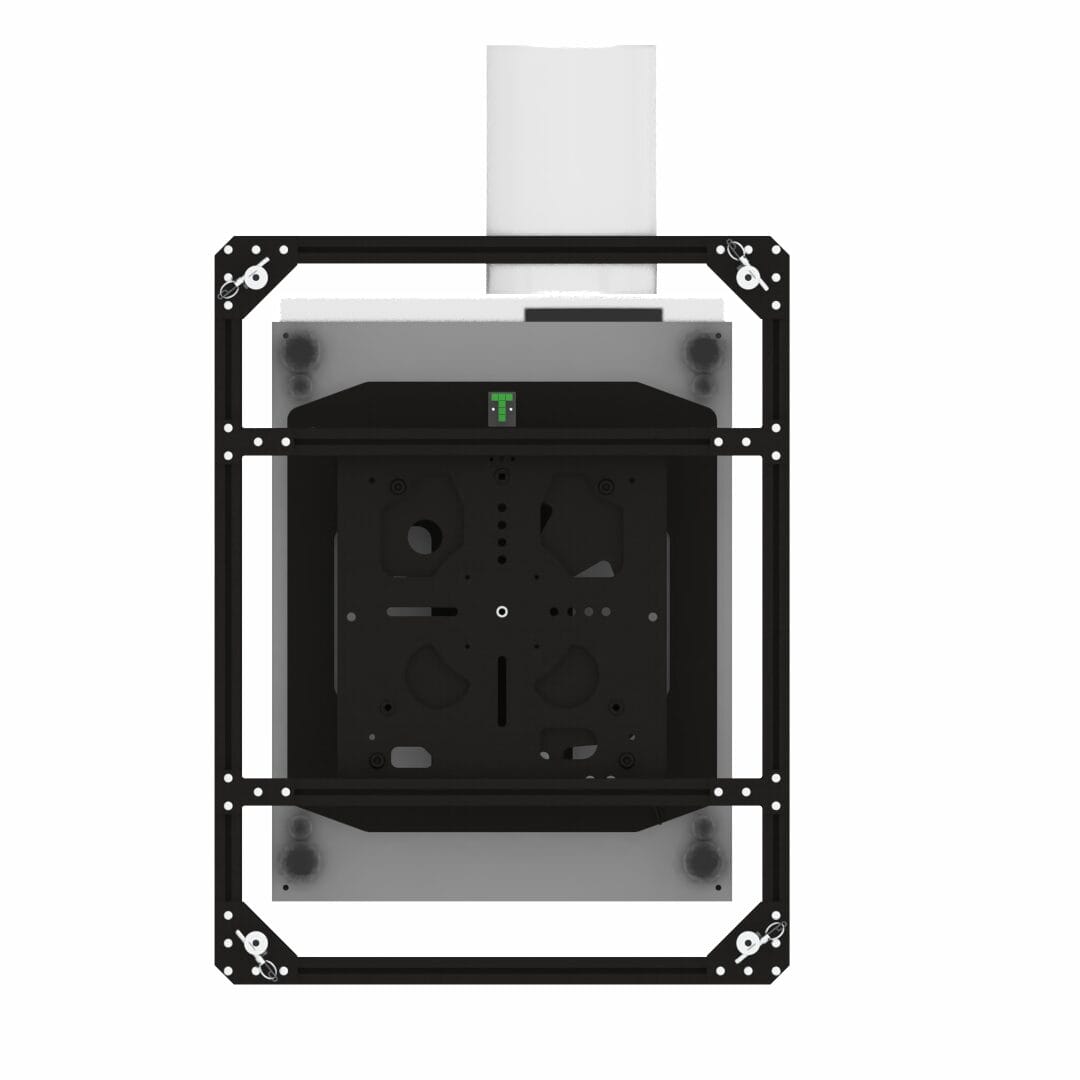

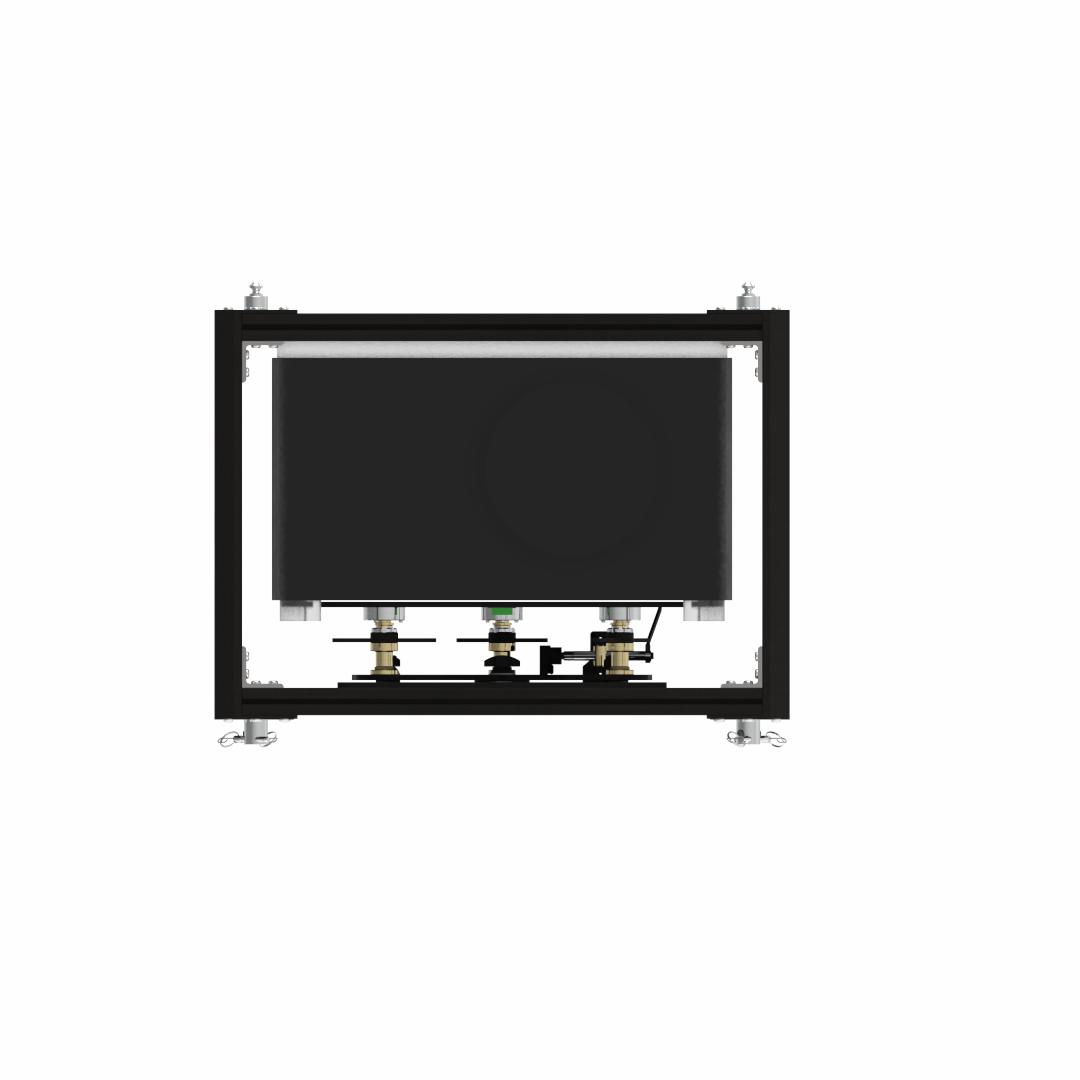

It is an aluminium tubular profile frame (cross-section 40×40) with iron reinforcement bars, thus combining sturdiness and ease of use. This is why it can be used for any PROJECTION type (Landscape, Portrait, Floor) and can adapt to any INSTALLATION method (truss, ceiling, wall and floor).

It is equipped with its own STACKING system:
A) For floor installation, it is type-tested for 3 cages;
B) For hanging installation, up to 2 cages.

The MICROMETRIC adjustment system on 3 rotation axes is based on the knob system, fastened to the structure (which can be easily removed without any tools, so that it can be used also without cage):

C) +/- 3° pitching;
D) +/- 3° roll;
E) +/- 5° yaw.

DOWNLOAD PDF

Request a quote

All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.

TECHNICAL SPECIFICATIONS

Material	Iron – Aluminum
Profile section	40 mm
Pitch	+/3°
Roll	+/3°
Yaw	+/- 5°

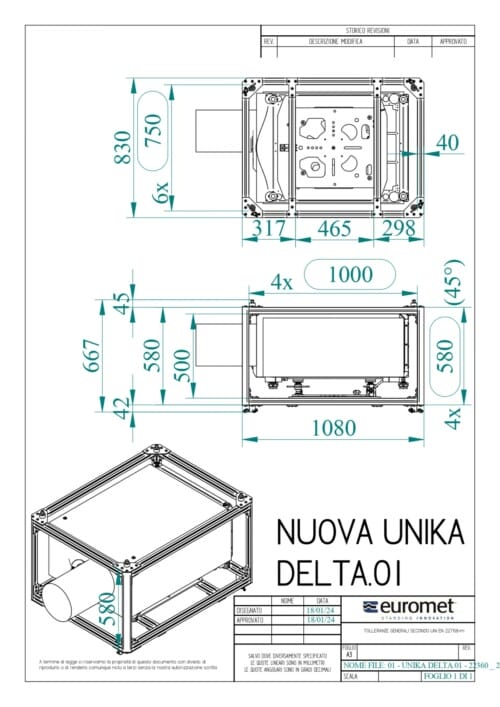

Cage dimensions Width_Lung_H (H with turned parts)	830 x 1080 _ 567 (667) [mm]
packaging	850 x 1115 _ h680 [mm]

COMPATIBLE ACCESSORIES

*subject to compatibility check

Up-Bar, bar with 2 sliding clamps and vesa 100X100
