Triangular truss, 2 ways “L”-style, steel, galvanized

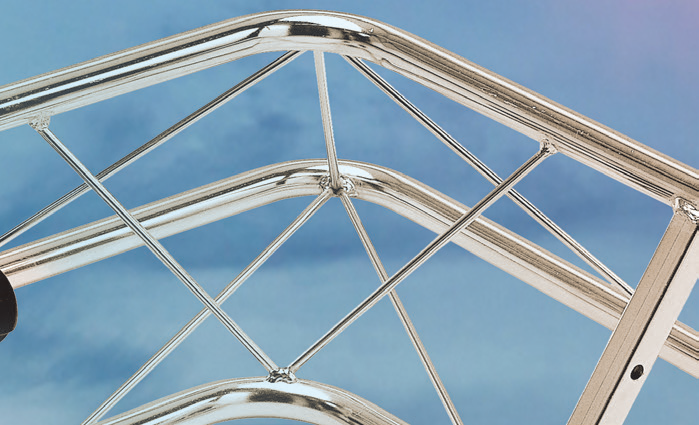

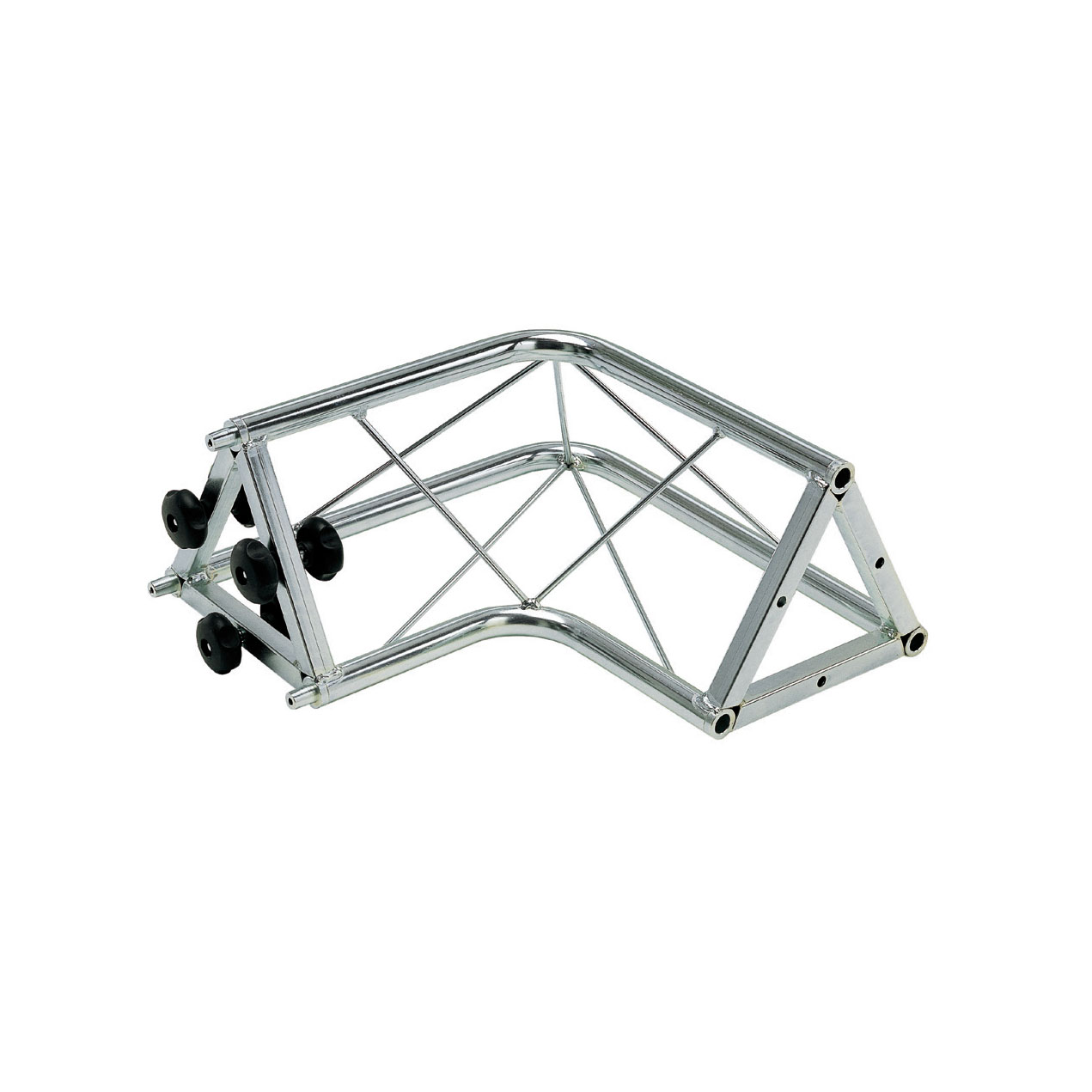

Triangular galvanized truss, 2-way “L”-style, 425x425mm with 225mm sides, made of ø 25mm steel tube, reinforced with welded ø 6mm wire. This module is comprised on one side of three ø 15mm male attachments, on the other side with three female ø 15,3mm attachments. Link with other modules by coupling of attachments and fixing with three supplied couples of M8x60mm knobs.
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Net weight | 3,50 kg |
|---|---|
| Closed Length | 450 mm |
| Link with | ø15,3 mm (F) – ø15 mm (M) |
| Dim. M. attachment | ø 15 mm |
| Dim. F. attachment | ø 15,3 mm |
| Thickness | 1,5 mm |
| Material | Fe ø25 mm |
| Treatments | Galvanization |
ACCESSORIES
*subject to compatibility check
