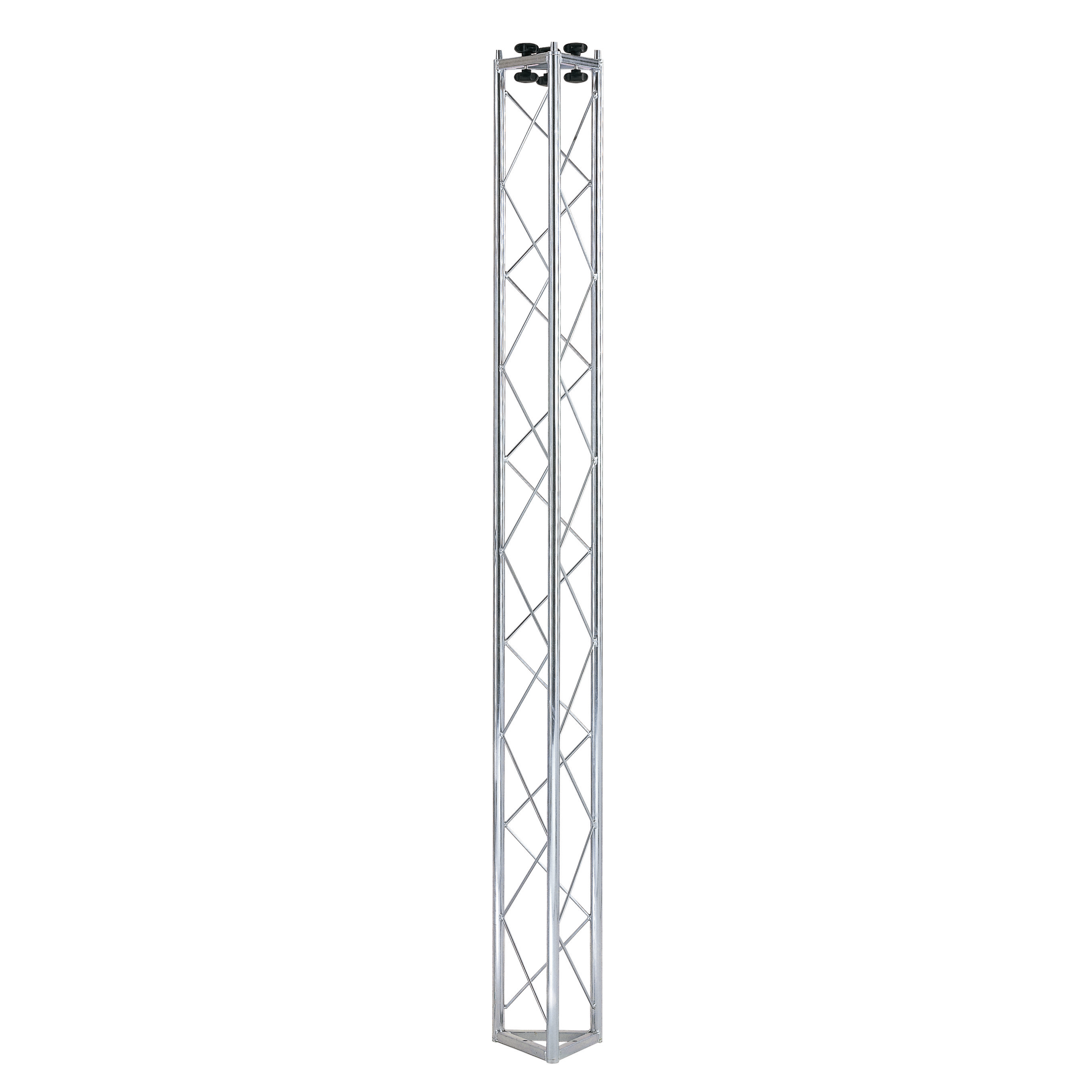

Triangular truss, steel, galvanized, L: 2000 mm
Triangular galvanized truss, L: 2000mm with 225mm sides, made of ø 25mm steel tube, reinforced with ø 6mm welded wire.
This module is comprised on one side three male ø 15mm attachments and on the other side of three female ø 15,3mm attachments.
Link with other modules by coupling of attachments and fixing with three supplied couples of M8x60mm knobs.
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Net weight | 8,60 kg |
|---|---|
| Closed Length | 2020 mm |
| Max Load | Distributed load 275 kg – Concentrated load 200 kg |
| Link with | ø15,3 mm (F) – ø15 mm (M) |
| Dim. M. attachment | ø 15 mm |
| Dim. F. attachment | ø 15,3 mm |
| Thickness | 1,5 mm |
| Material | Fe ø25 mm |
| Treatments | Galvanization |
