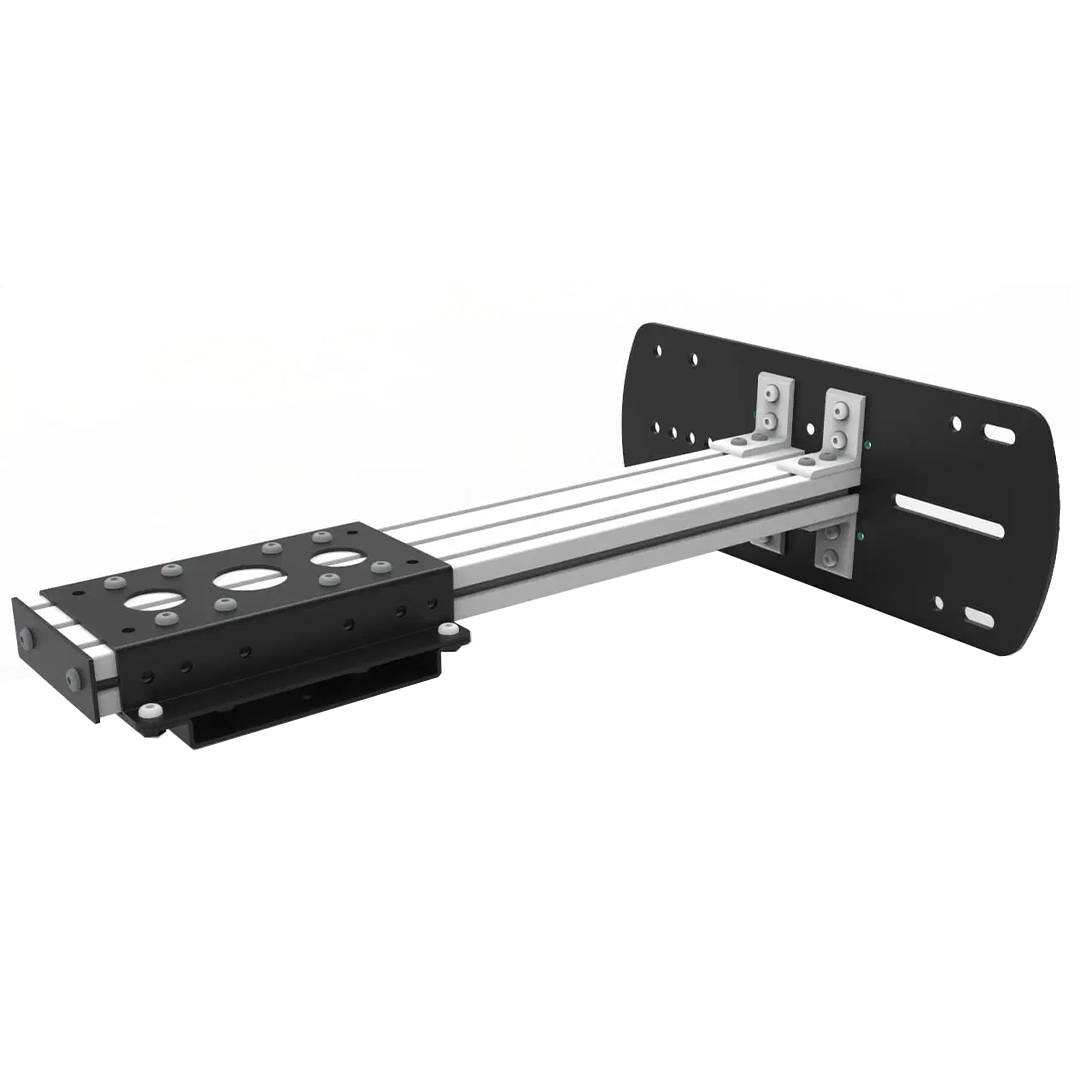

Arm, silver and black
It is an extremely versatile option, enabling projector installation in many different configurations.
1) Ceiling mount: floor or portrait projection;
2) Wall mount: landscape, floor or portrait projection;
3) Truss mount (clamps not included): landscape, floor or portrait projection.

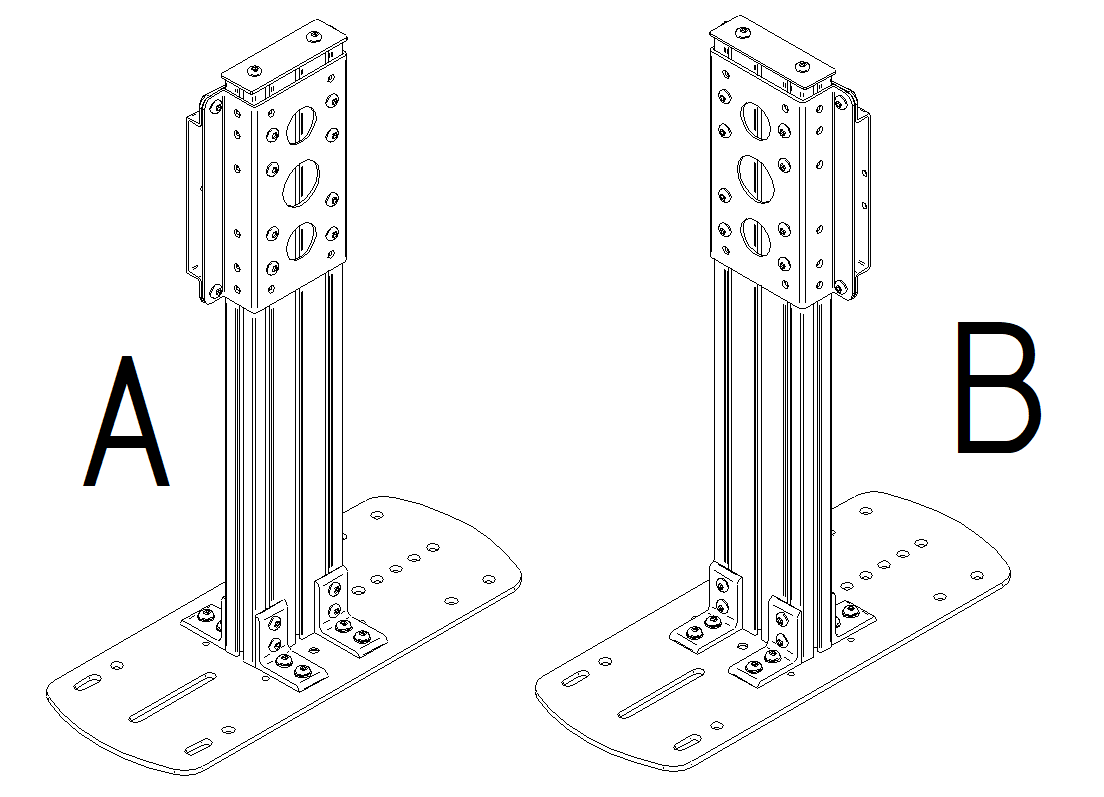

Its versatility is given by the fact that the profile can be fastened to the installation plate in two different ways:
A) Profile parallel to the plate
B) Profile perpendicular to the plate
It also allows the projector to slide along the profile itself (the standard size of which is 680mm but can be customised if specified in the order).
It has a standard EUROMET coupling, which means that all cages and options with such a standard coupling can be fitted to the ARM, making it possible to create very complex systems with multiple functions (tilt, rotations, etc…) using standard but modular products.
This code refers to the silver and black product but it’s also available in:
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| installation | A traliccio (clamp non incluse), Support system to the ceiling, Support system to the wall |
|---|---|
| Mode | Floor, Landscape, Portait |
| Material | Iron-Aluminum |
| Treatments | Powder coated |
| Color | Silver, Black |
| buttonhole adjustment range | From 200 to 400 mm |
| clamp fixing screw | M12 |
| standard attachment | YES |

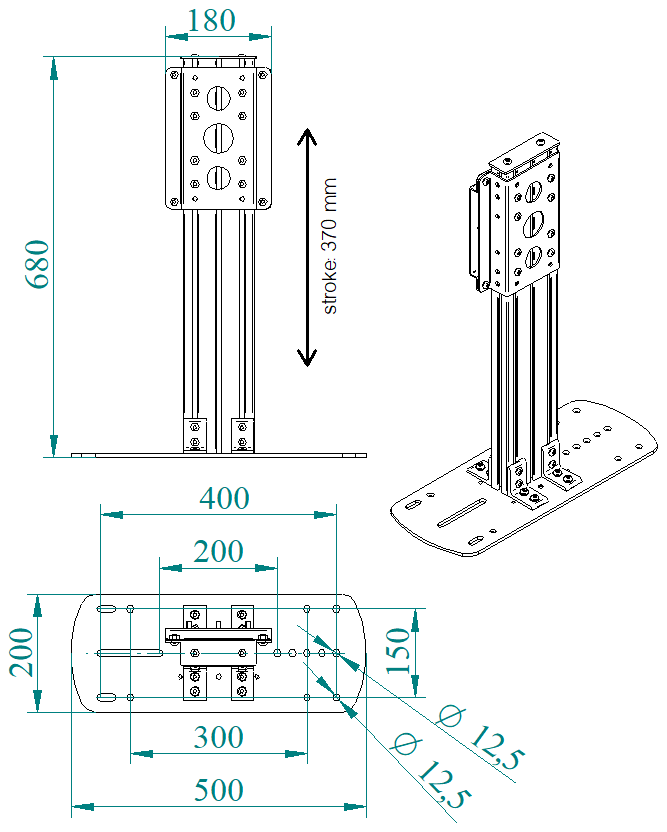

| Dimension | 200 x 500 _ 680 [mm] |
| packaging | 220 x 520 _ 700 [mm] |
