Advanced Kalibration Systems

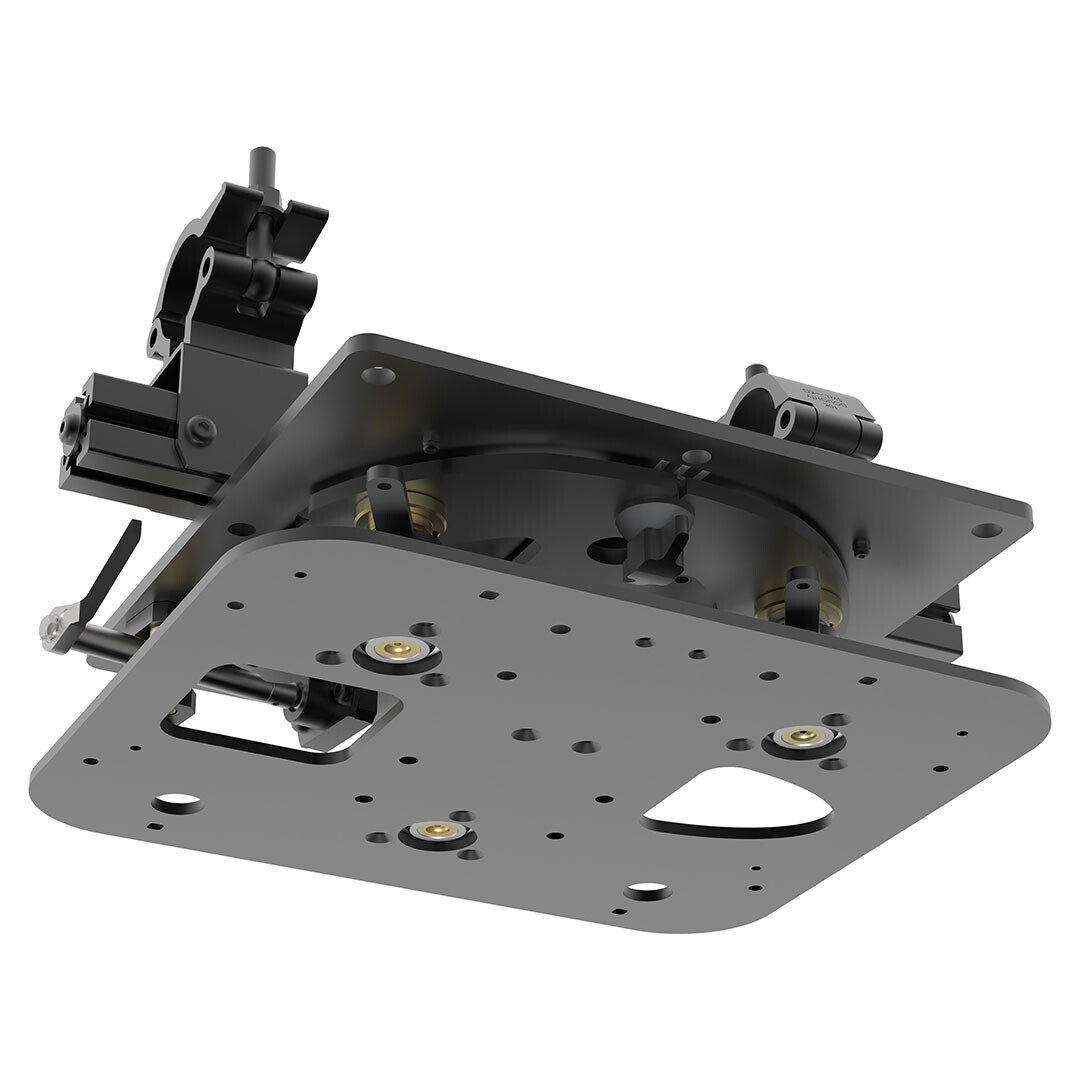

KITE Alfa
Projector support with micrometric calibration system on all three levels Axles.
*Compatibile per:
DIGITAL PROJECTION: E-VISION LASER 4-15K
DIGITAL PROJECTION: E-VISION LASER 6,5-9K
VIVITEK: DU7098Z – DU7295Z
VIVITEK: DU8090Z – DU8395Z – DU 6298Z
NEC: PX803UL – PX1004UL
HITACHI – LP – WU9100B
OPTOMA: ZU1050-860
OPTOMA: ZK1050
OPTOMA zu725t
BENQ – LU9715_9215_9915
BENQ – PU9730
SONY – FHZ 120L
It is a micrometric adjustment system:
- +/- 3°: roll
- +/- 3°: pitch
- +/- 4°: yaw
Adjustment is achieved via the micrometric adjustment of three columns.
It is equipped with a standard EUROMET mount both above and below, allowing it to be attached in series with other optional accessories equipped with a standard mount.
On the lower plate, in addition to the standard mount, there is a provision for attaching a pair of clamps (not included; if necessary, order code 20977).
The KITE is equipped with comfortable rubber feet for possible ground support and a system that allows you to determine the 0 point and any subsequent adjustments.
IMQ Certification: EN 62368-1:2014+A11:2017 clause 8.7
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| installation | Support system to the ceiling |
|---|---|
| Mode | Floor, Landscape, Portait |
| Material | Iron – Aluminum |
| Treatments | Powder coated |
| Color | Silver, Black |
| Pitch | +/- 3° |
| Roll | +/- 3° |
| Yaw | +/- 4° |
| clamp fixing screw | M10 |
| standard attachment | YES |
| Dimension | 390 x 362 x h.100 [mm] |
| packaging | 410 x 380 x h.140 [mm] |
