HT SERIES – Hi-tech rack cabinet, 40U

Home » Products » 19” Rack » HT SERIES » HT SERIES – Hi-tech rack cabinet, 40U

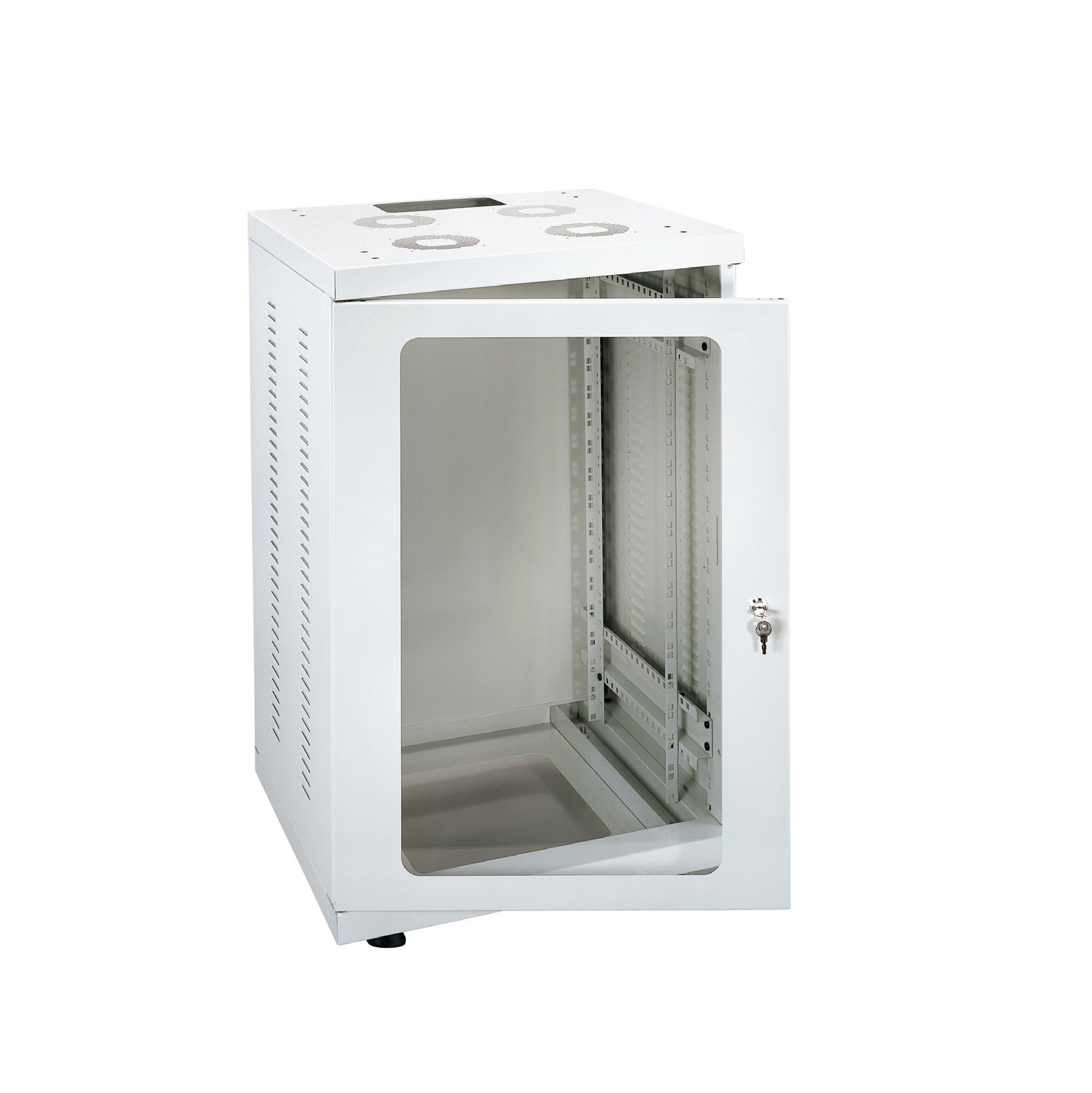

HT SERIES – Hi-tech rack cabinet, 40U

P/N: 01515

Usable height: 40U

Hi-tech rack cabinet, self-assembly kit, made of steel plate, RAL7035 finish. This rack accomodates cable systems and 19’’ rack mount equipment, adapting the position of the vertical 19’’ rack strips in depth, as necessitates each individual project. The upright elements feature M6 copper inserts for grounding. The complete integration of the entire gamma of 19’’ rack mounting accessories makes it possible to create a myriad of different solutions for networking and for laboratories. Fitted with 4 Ø 75mm wheels, two of them lockable.
To facilitate transport and to reduce costs of shipment, this item is furnished as ready for assembly. Standard assembly time: 20 minutes.


EurometEvery EUROMET product is manufactured in conformity with regulatory standards CE, regarding IEC 60065 paragraph 19 and IEC 60950-1 paragraph 4.2.1, inherant to the security of suspended loads and anti-tipping for monitor supports.

SKU: 01515 Categories: ,

Additional information

Usable Height

40U

Link with

19” Accessories

Thickness

2 mm

Material

Fe

Treatments

RAL 7035

Net weight

70,8 kg

Mounting Height

1778 mm

EXTERNAL HEIGHT DIMENSION (WITHOUT WHEELS OR FEET)

1862 mm

Internal Depth

max. 450 mm

EXTERNAL DEPTH

526 mm
