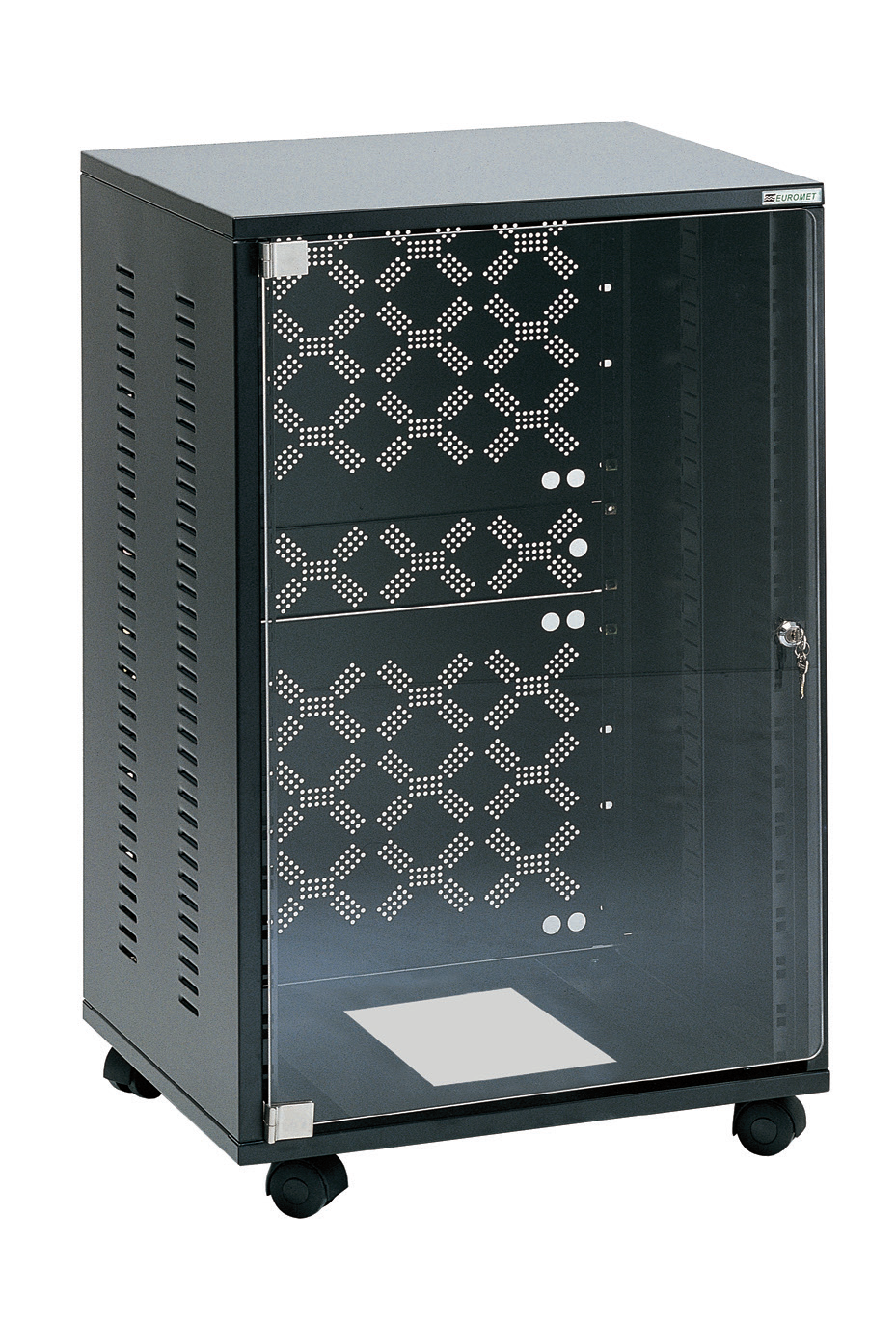

540 SERIES – Rack only, 8U

P/N: 00521

Usable height: 8U

Rack cabinet, depth 545mm, self-assemblying kit, made of steel plate, RAL9005 finish, composed of::

  • one base (L:534/D:545mm) with 4 M10 thread attachments;
  • one roof (L:534/D:545mm);
  • two sides with vertical 19’’punched holes and vent slots;
  • four adjustable levelling feet;
  • set of mounting hardware;
  • assembly instruction.

This rack accomodates cable systems and 19’’ rack mounting equipment. The complete integration of all the 19’’ rack mounting accessories offers the possibility to create many different solutions for networking and for laboratories. To facilitate transport and to reduce costs of shipment, this item is furnished ready for assembly. Standard assembly time: 15 minutes.


EurometEvery EUROMET product is manufactured in conformity with regulatory standards CE, regarding IEC 60065 paragraph 19 and IEC 60950-1 paragraph 4.2.1, inherant to the security of suspended loads and anti-tipping for monitor supports.

SKU: 00521 Categories: ,

Additional information

Usable Height

8U

Link with

19” Accessories

Material

Fe

Treatments

RAL 9005

Net weight

20 kg

Master Pack

0,036 m3, 21,5 kg

Mounting Height

360 mm

EXTERNAL HEIGHT DIMENSION (WITHOUT WHEELS OR FEET)

400 mm

Internal Depth

435 mm

EXTERNAL DEPTH

540 mm
