Universal videoprojector ceiling mount, 1150-1800mm, anthr.

Home » Products » Videoprojector Mounts » Videoprojector Ceiling Mounts » Universal videoprojector ceiling mount, 1150-1800mm, anthr.

Universal videoprojector ceiling mount, 1150-1800mm, anthr.

P/N: 06625

Colour: Silver

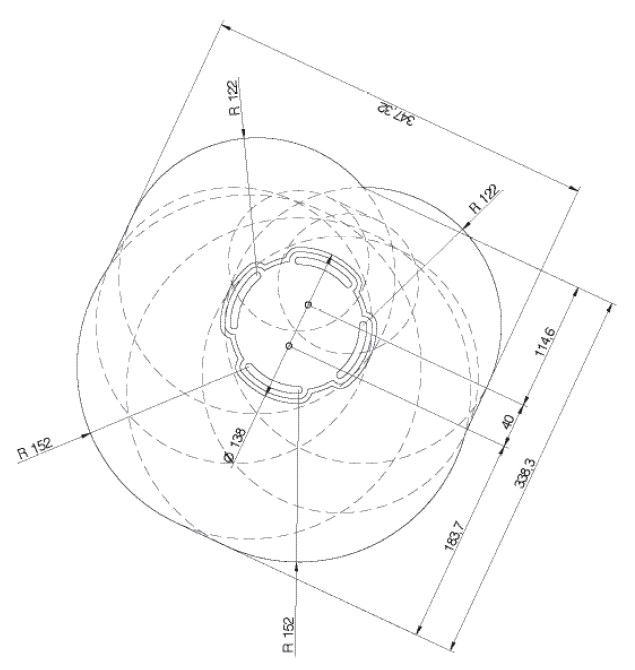

Steel-made universal ceiling mount bracket, adjustable for videoprojectors, with arm (L= 1150 -1800mm). There are two Ø65×30 holes to enable the passage of the cables, including VGA. It is vertically tiltable ì(+/-25°) as well as horizontally (360°) by adjusting the central part of the assembly swivel. It can be fixed by its spanner which is supplied with 3 buttonholes providing for very quick inspection for maintenance. To apply the Dia/video to the support, you have to use 4 arms of different dimensions (78/138/168mm). Use the feet to position the arms at the same height, and then fix them to the support. M3, M4 and M5 screws, M2,5 adaptors and istruction manual included.

Also available in:

QUOTATION REQUEST

SKU: 06625 Categories: ,

Additional information

Net weight

5 kg

Min/Max height

1150-1800mm

Closed Length

200x200x1200 mm

Max Load

[0-10]

MAX LOAD

10 kg

Mount Rotates

360°

Tilt angle

+/- 25°

Material

Fe (structure)

Treatments

Anthracite

Typology

Ceiling Mounts
