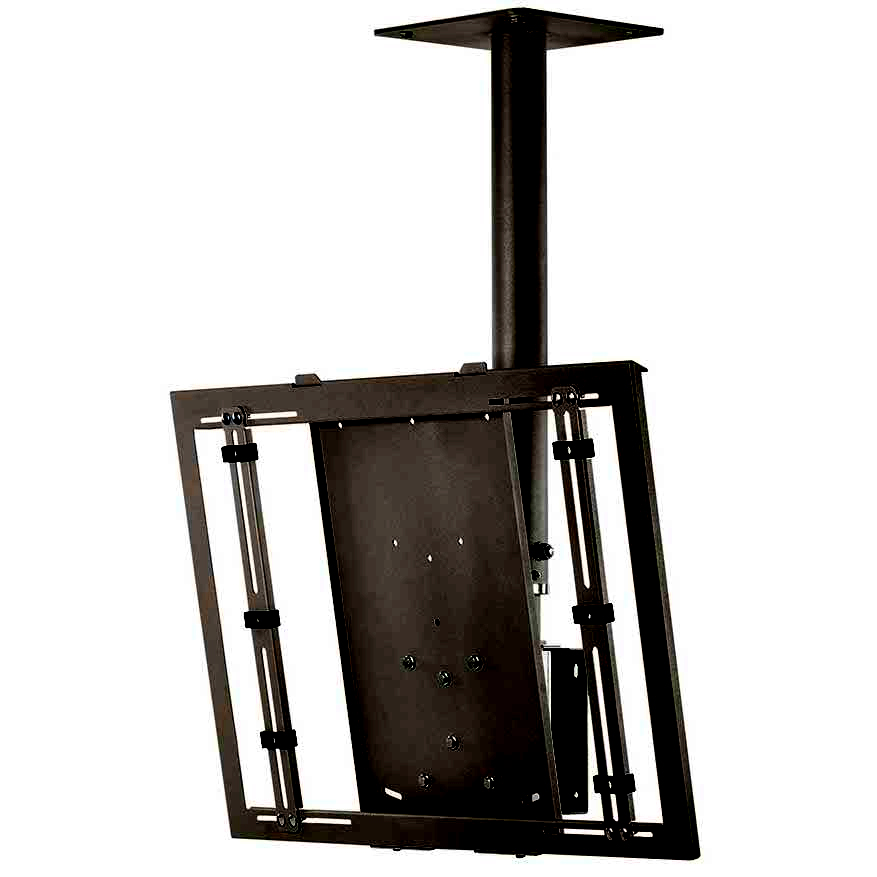

Universal ceiling mount bracket, adjustable, black

P/N: 06700

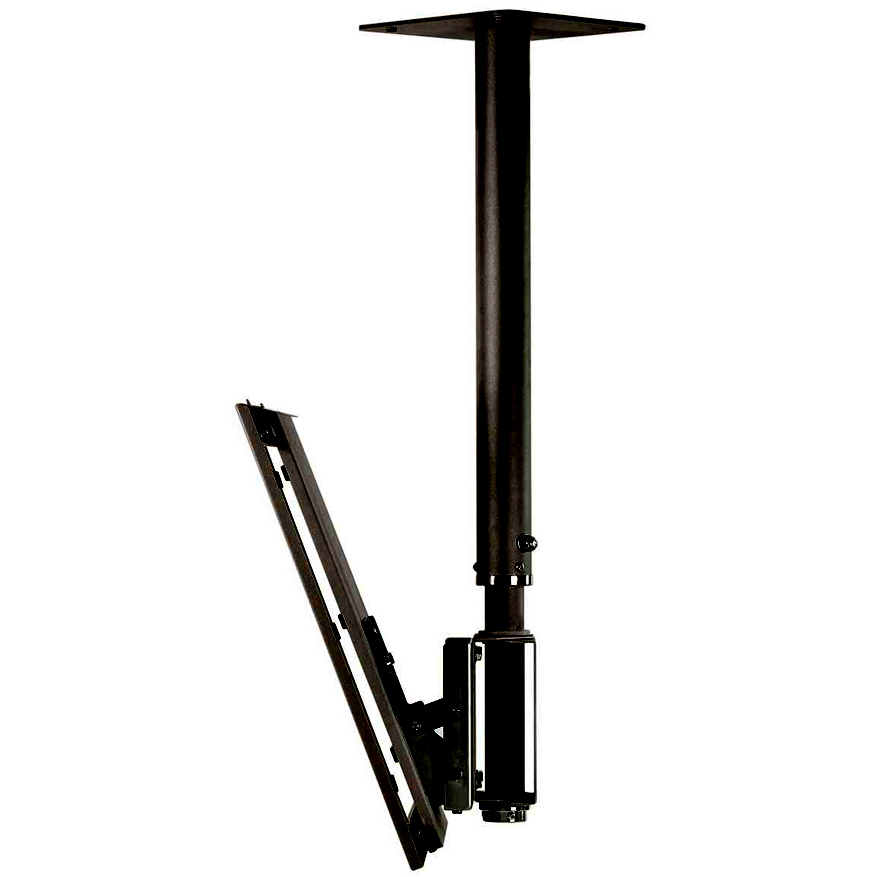

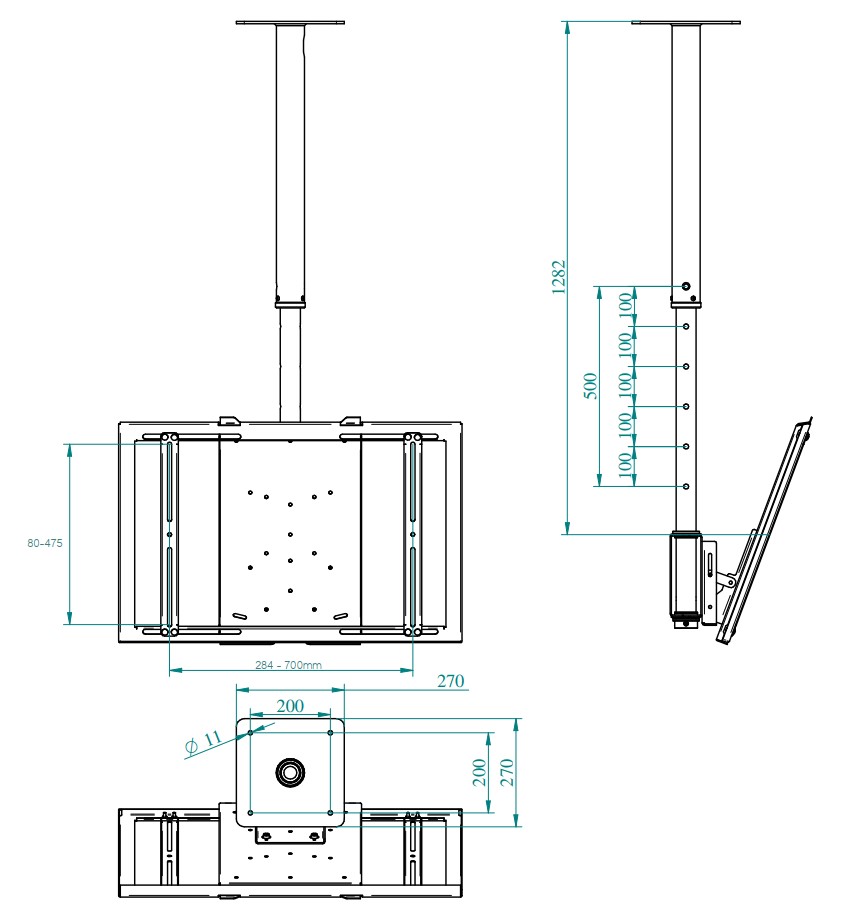

Universal ceiling mount bracket, adjustable and tiltable, steel made. The bracket consists of 3 parts: fixing system (Tilting System) and the “Universal” frame. To fix on the ceiling there are four holes Ø11mm in the flange on top of the tube. In the bottom of the tube there is the Tilting System. This kink of system allows to rotating a +20° or -10° angle of inclination, using an exagonal key in the equipment. It is also possible to rotate the system around the vertical axis for 360°. The universal frame(850x590mm) is compatible with all monitor from 46 to 75''. In fact it is compatible with holes on wheelbases from 284 to 700 in horizontal and from 80 to 475 in vertical. The telescopic arm grants to regulate the central part of the monitor at the height from 75 to 125cm. It's possible to adjust the height of the monitor with 10cm steps. It is necessary for work in safetely conditions to use two M6 screws on the base of the frame. The tubes are drilled to make the cable's passage is possible inside the bracket. Time to assemble the stand: 5 minutes.
