Video Projector Mounts

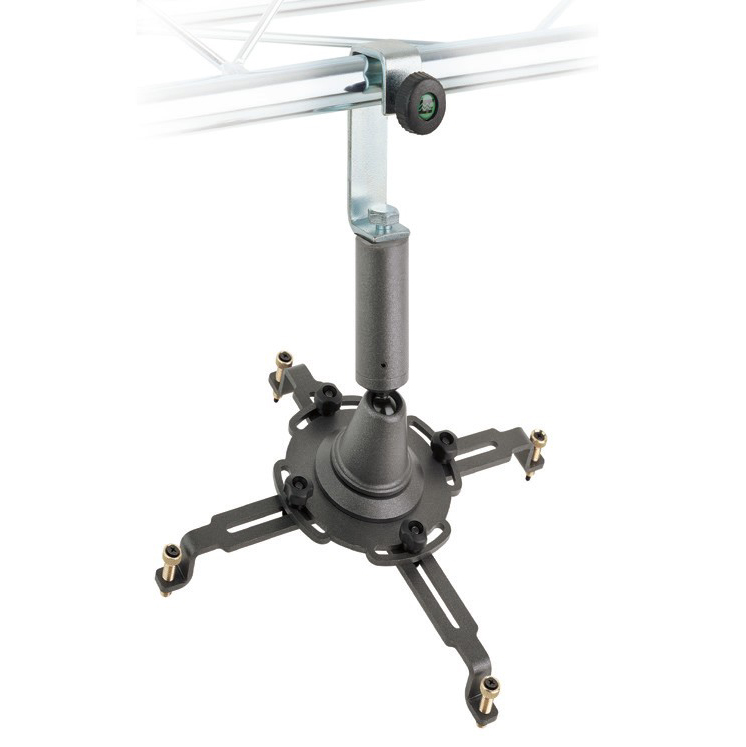

UFO – universal truss support for video-projectors, satin-finish anthracite grey
Colour: Anthracite
To apply the support to the truss, use our clamp or use any clamp with a M10 male insert. It is vertically tiltable (+-25°) as well as horizontally (360°), by adjusting the central part (h40mm) of the assembly swivel. It can be fixed by its spanner which is supplied with the bracket. To apply the videoprojector to the support, you have to use 4 arms of different dimensions (78/138/168mm). Use the feet to position the arms at the same height, and then fix to the support. M3, M4 and M5 screws and instruction manual included.
Also available in:
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Net weight | 1,92 kg |
|---|---|
| Closed Length | 280 mm |
| Footprint diameter | 1000 mm |
| Max Load | 30 kg |
| Link with | ø 36 mm |
| Dim. M. attachment | ø 35 mm |
| Dim. F. attachment | ø 36 mm |
| Tilt angle | +/- 25° |
| Thickness | 1,5/2 mm |
| Material | AL – PVC (Feet) |
| Treatments | Anthracite |
| Typology | Truss Mounts |
