19” Rack

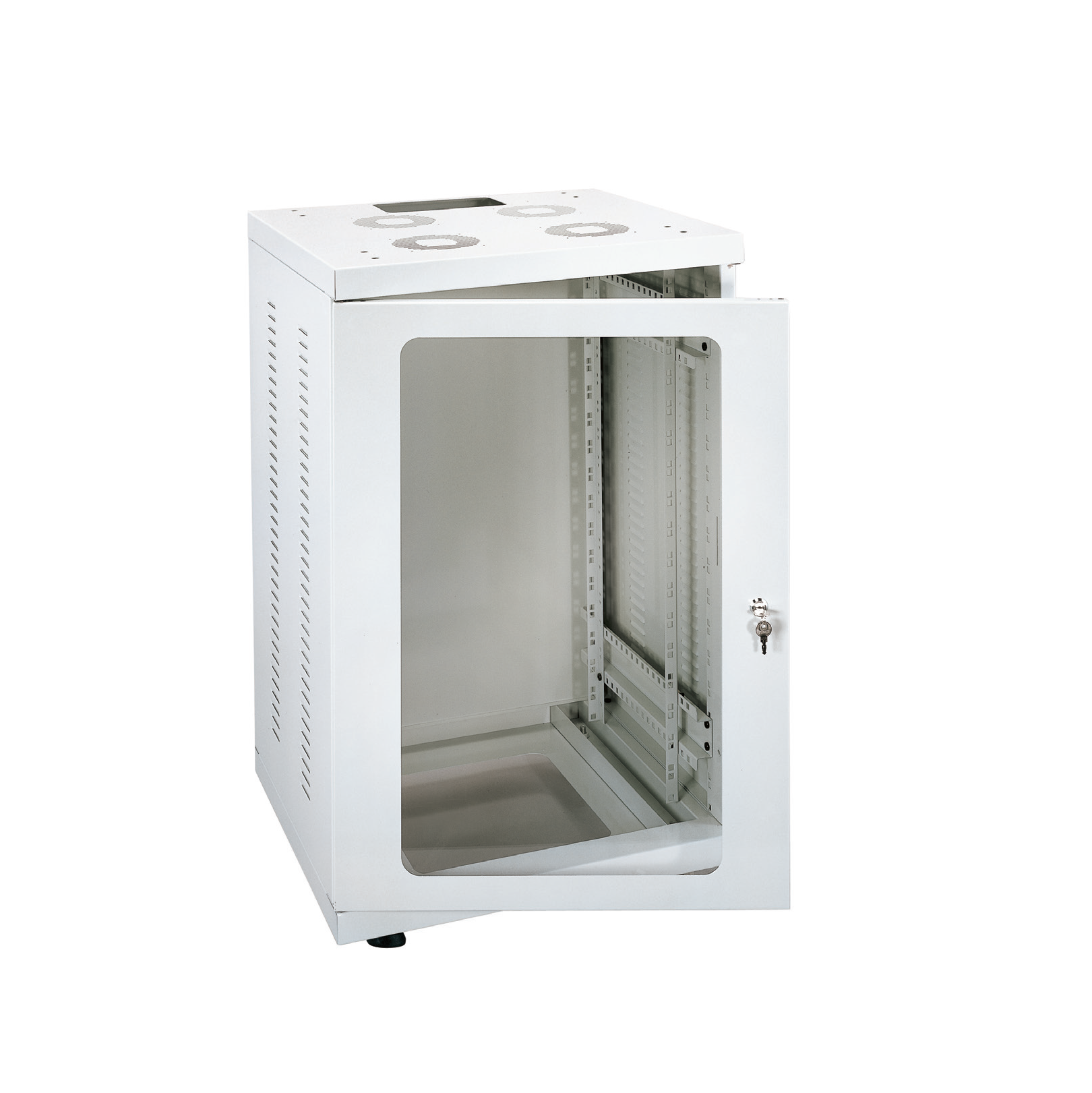

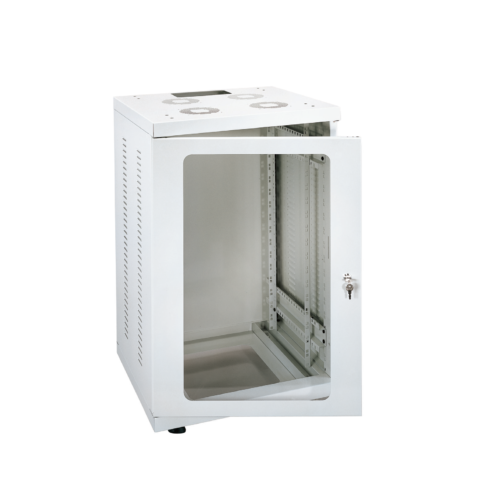

HT SERIES – Hi-tech rack cabinet, 12U
Usable Height: 12U

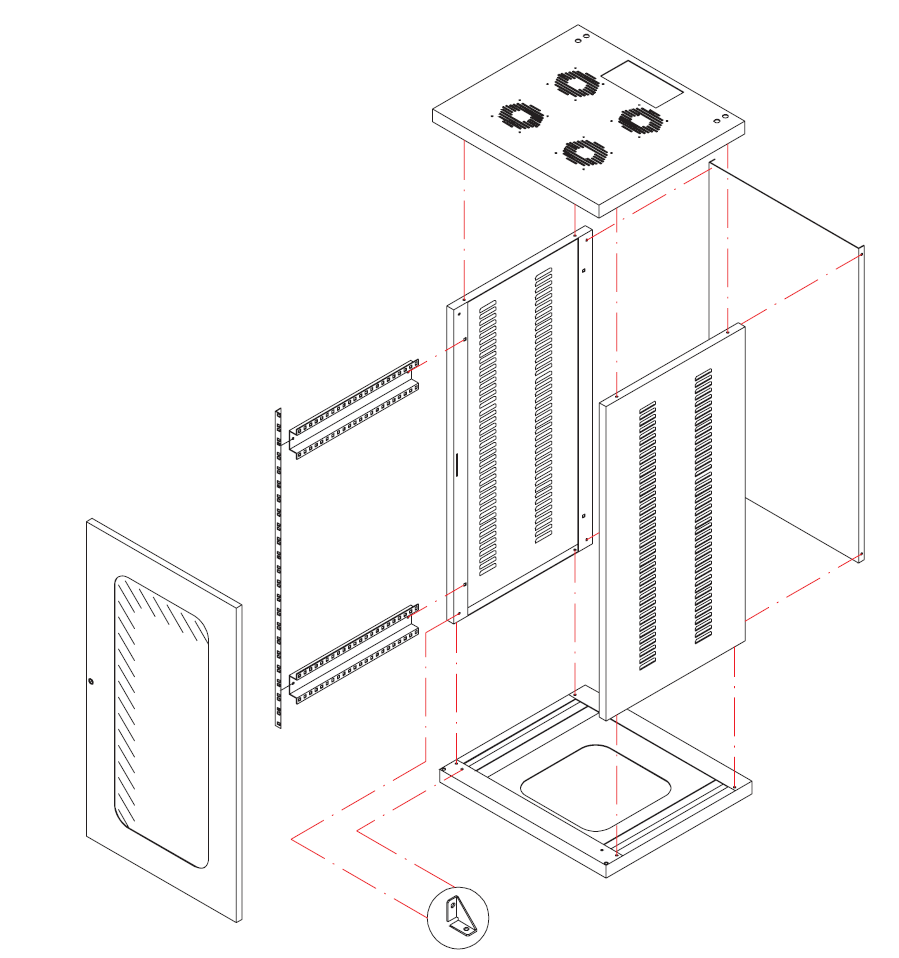

Hi-tech rack cabinet, self-assembly kit, made of steel plate, RAL7035 finish. This rack accomodates cable systems and 19’’ rack mount equipment, adapting the position of the vertical 19’’ rack strips in depth, as necessitates each individual project. The upright elements feature M6 copper inserts for grounding. The complete integration of the entire gamma of 19’’ rack mounting accessories makes it possible to create a myriad of different solutions for networking and for laboratories. Fitted with 4 Ø 75mm wheels, two of them lockable. To facilitate transport and to reduce costs of shipment, this item is furnished as ready for assembly. Standard assembly time: 20 minutes.
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Usable Height | 12U |
|---|---|
| Link with | 19” Accessories |
| Thickness | 2 mm |
| Material | Fe |
| Treatments | RAL 7035 |
| Net weight | 37,6 kg |
| Mounting Height | 532 mm |
| EXTERNAL HEIGHT DIMENSION (WITHOUT WHEELS OR FEET) | 616 mm |
| Internal Depth | max. 450 mm |
| EXTERNAL DEPTH | 526 mm |
ACCESSORIES
*subject to compatibility check
