Name: Arakno Omnia – Projector mount with micrometric adjustmen - Euromet
SKU: 29600

arakno_omnia_staffa_per_videoproiettori_euromet

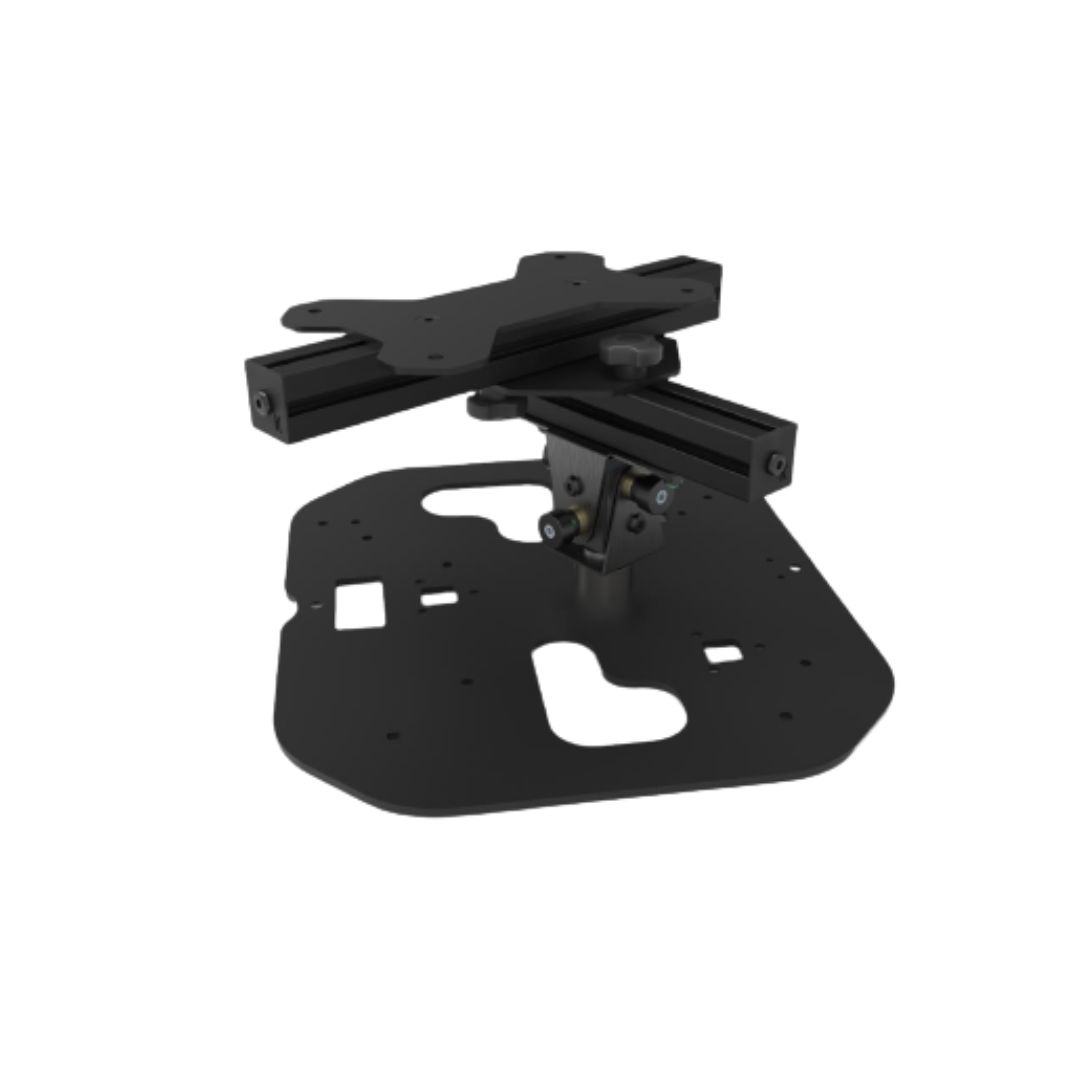

Arakno Omnia – Projector mount with micrometric adjustment

P/N: 29600Categories: Video Projector Mounts, Arakno

Projector mount with micrometric adjustment along the three Cartesian axes, 360° rotation and dual spatial adjustment (lateral and depth), ideal for immersive rooms and multi-projector setups.

Tilt system with patented mechanism
Brass screws to compensate for differences in mounting holes
Greater centring and spatial adjustment: 30 cm forwards and backwards, and 30 cm left and right
Micrometric adjustment of the 3 Cartesian axes
Dedicated plate for the projector model to ensure greater stability.
Universal projector mount designed for use with Arakno line extension arms and wall brackets
Micrometric adjustment knobs allowing for millimetre-precise movement
Hex key access for precise adjustment even under heavy loads

Colour: black

DOWNLOAD PDF

Request a quote

All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.

TECHNICAL SPECIFICATIONS

Typology	Ceiling Mounts
Max Load	45 kg
Max dimension	192x192x180 mm
Tilt angle	up to 30°
Swivel	360°
Ship weight box 1	4 kg
Fixing screws	M6 M3 M4 M5

ACCESSORIES

*subject to compatibility check

Extension Column M, white

P/N: 09262

Extension Column L, white

P/N: 09265

Extension Column XL, white

P/N: 09268

S – Arakno Calibration Device

P/N: 09660

M – Arakno Calibration Device

P/N: 09565

Additional Mounting Arm, white, 200 mm

P/N: 11048

Additional Mounting Arms, grey, 170 mm

P/N: 11646

ARAKNO Truss adapter for clamp

P/N: 09216

Clamp for 48-51mm tubes (Aliscaf)

P/N: 13353

Plastic Ceiling Mount

P/N: 12378

Plastic mask for dry-wall (dry-wall that utilizes the column system)

P/N: 12948

UFO – Videoprojector ceiling mount, RAL 9005

P/N: 02092

UFO – Universal videoprojector ceiling mount, arm 50mm, silver

P/N: 06826

Basic Joint

P/N: 14188

Universal videoprojector ceiling mount, arm 150 mm, silver

P/N: 04382

Extension Column XL, black

P/N: 09269

IRIS – Plus 400

P/N: 27129

ARAKNO WALL – Telescopic wall mount for videop. black

P/N: 15462

Extension Column L, black

P/N: 09266
