P/N: 04326

Colour: Anthracite

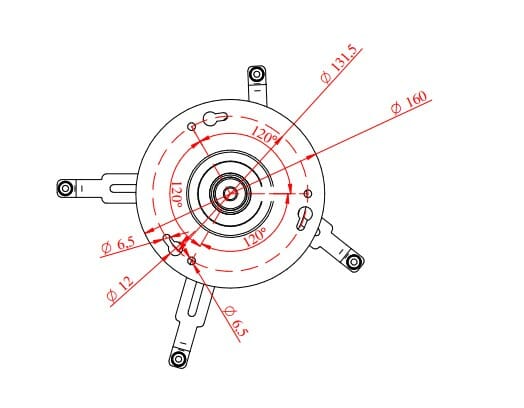

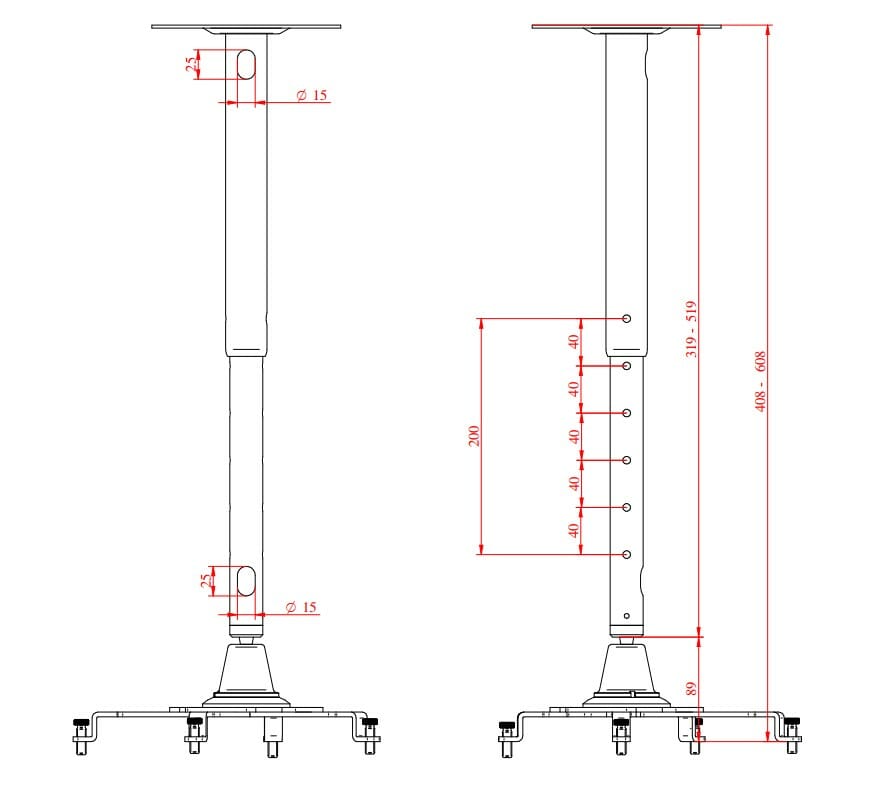

Steel-made ceiling mount bracket, adjustable for videoprojectors, with arm (L400-600mm). It is vertically tiltable (+-25°) as well as horizontally (360°), by adjusting the central part (h40mm) of the assembly swivel. It can be fixed by its spanner which is supplied with the bracket. The support is fixed to the ceiling by a Ø160mm plate with 3 8mm holes, and 3 buttonholes providing quick inspection for maintenance. To apply the Dia-Video to the support, you have to use 4 arms of different dimensions (78/138/168mm). Use the feet to position the arms at the same height, and then fix to the support. M4 and M5 screws and instruction manual included.

Also available in:


EurometEvery EUROMET product is manufactured in conformity with regulatory standards CE, regarding IEC 60065 paragraph 19 and IEC 60950-1 paragraph 4.2.1, inherant to the security of suspended loads and anti-tipping for monitor supports.
