Video Projector Mounts

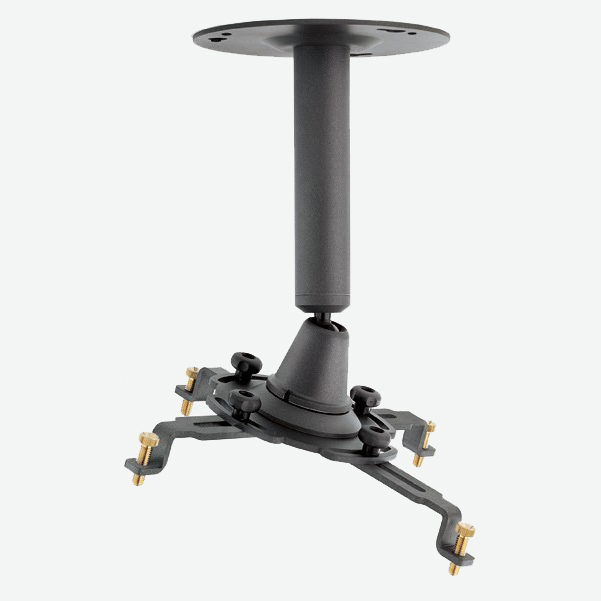

UFO – Universal videoprojector ceiling mount, arm 150 mm, anthracite
Colour: Anthracite
Steel-made universal ceiling mount bracket, adjustable for videoprojectors, with L150mm arm. It is tiltable vertically

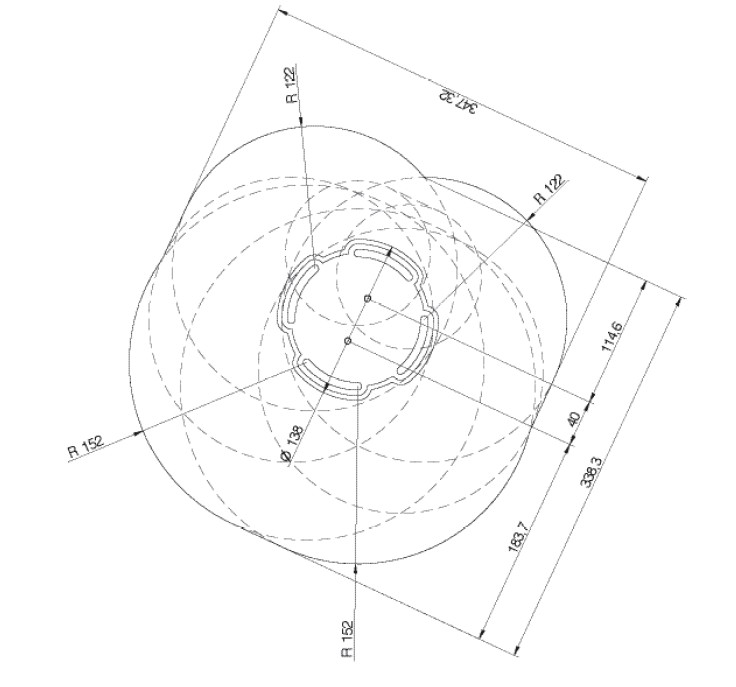

(+-25°) as well as horizontally (360°) by adjusting the central part (h40mm) of the assembly swivel. It can be fixed by its spanner which is supplied with the bracket. The support is fixed to the ceiling by a Ø160mm plate with 3 8mm holes, and 3 buttonholes providing quick inspection for maintenance. Use the feet to position the arms at the same height, and then fix to the support. M4 and M5 screws.
Disponibile anche nella variante di colore:
All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.
TECHNICAL SPECIFICATIONS
| Net weight | 2,20 kg |
|---|---|
| Closed Length | 250 mm |
| Max Load | 10 kg |
| Mount Rotates | 360° |
| Tilt angle | 50° |
| Thickness | 1,5 / 4 mm |
| Max Monitor Size | No Limits |
| Material | Fe |
| Typology | Ceiling Mounts |
