Name: Speaker bracket, steel plate, distance: 60-92 mm, white - Euromet
SKU: 03664

Speaker bracket, steel plate, distance: 60-92 mm, white - Image 2

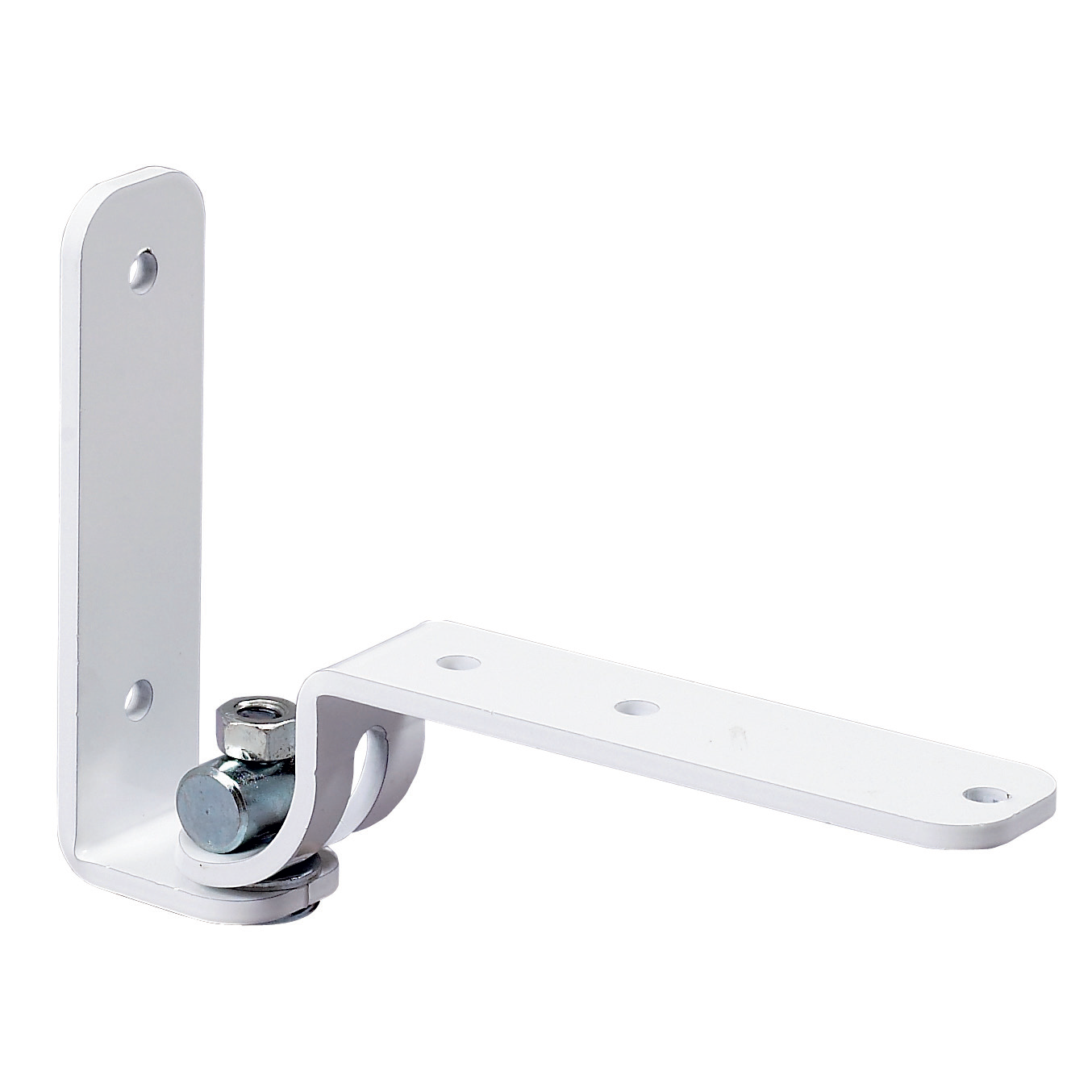

Speaker bracket, steel plate, distance: 60-92 mm, white

P/N: 03664Categories: Speaker Mounts, Speaker Supports

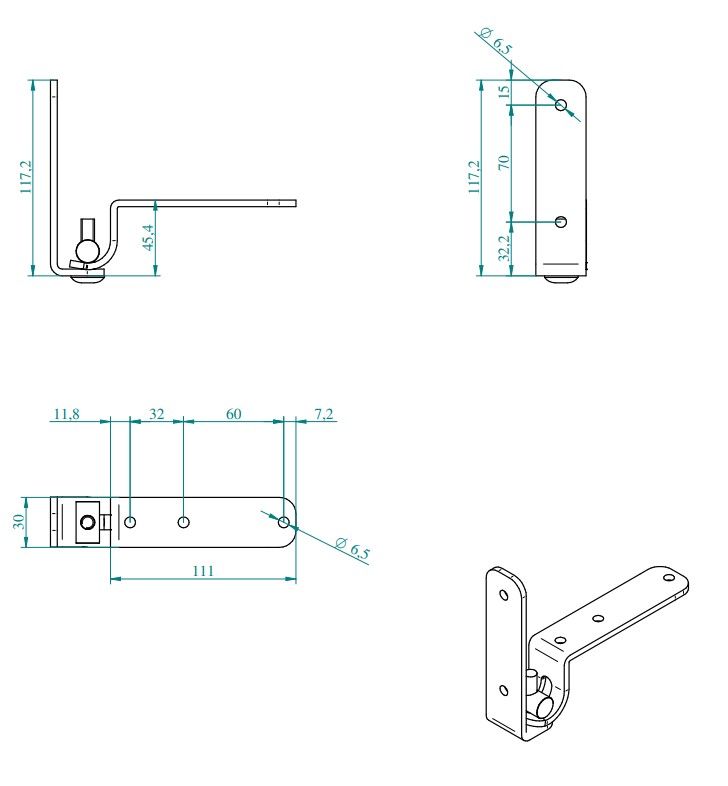

Wall-mounted speaker support consisting of a plate to be secured to the wall (centre distance of fixing holes 70 mm)
and a speaker connection plate (two centre distances: 60 and 92 mm). Same as code 01463 but compatible with speaker connections underneath the speaker (rather than at the back of the speaker as in code 01463).

DOWNLOAD PDF

Request a quote

All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.

TECHNICAL SPECIFICATIONS

Net weight	0,55 kg
Max Load	5 kg
Mount Rotates	180°
Tilt angle	90°
Material	Fe
Treatments	RAL 9010
