Flat Panel Mounts

Name: LCD/TFT Monitor Bracket “Round”, wall-mounted, nylon, VESA 100×100 standard, white - Euromet
SKU: 04754

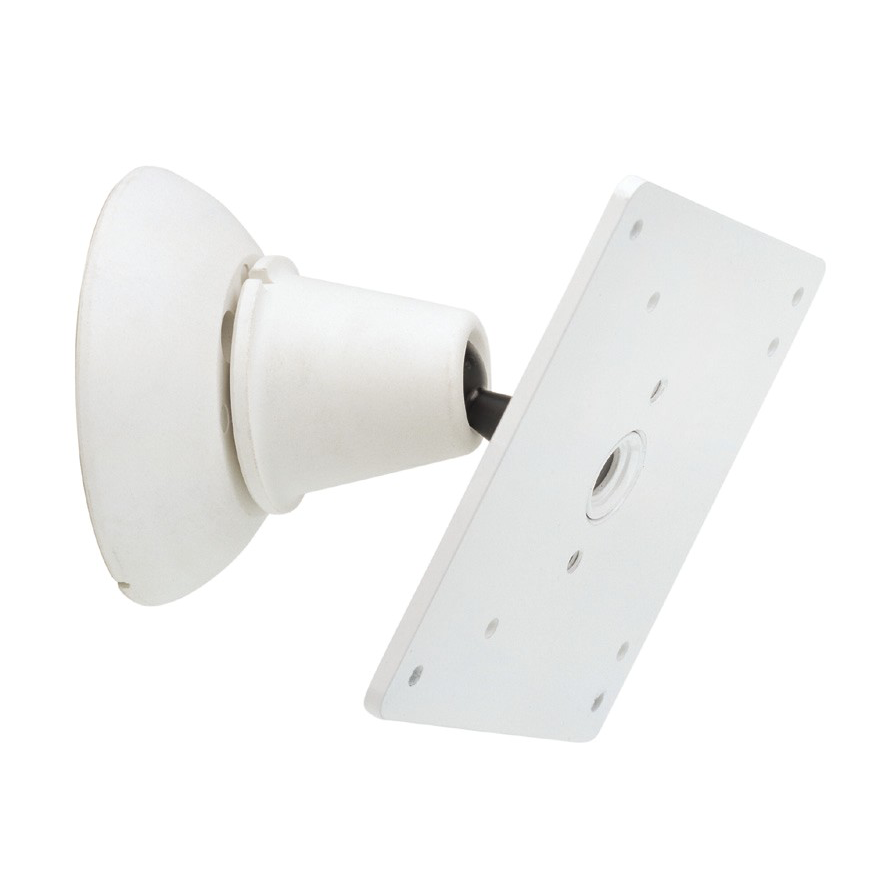

LCD/TFT Monitor Bracket “Round”, wall-mounted, nylon, VESA 100×100 standard, white - Image 2

LCD/TFT Monitor Bracket “Round”, wall-mounted, nylon, VESA 100×100 standard, white

P/N: 04754Categories: Flat Panel Mounts, Flat Panel Wall Mounts

Colore: Bianco

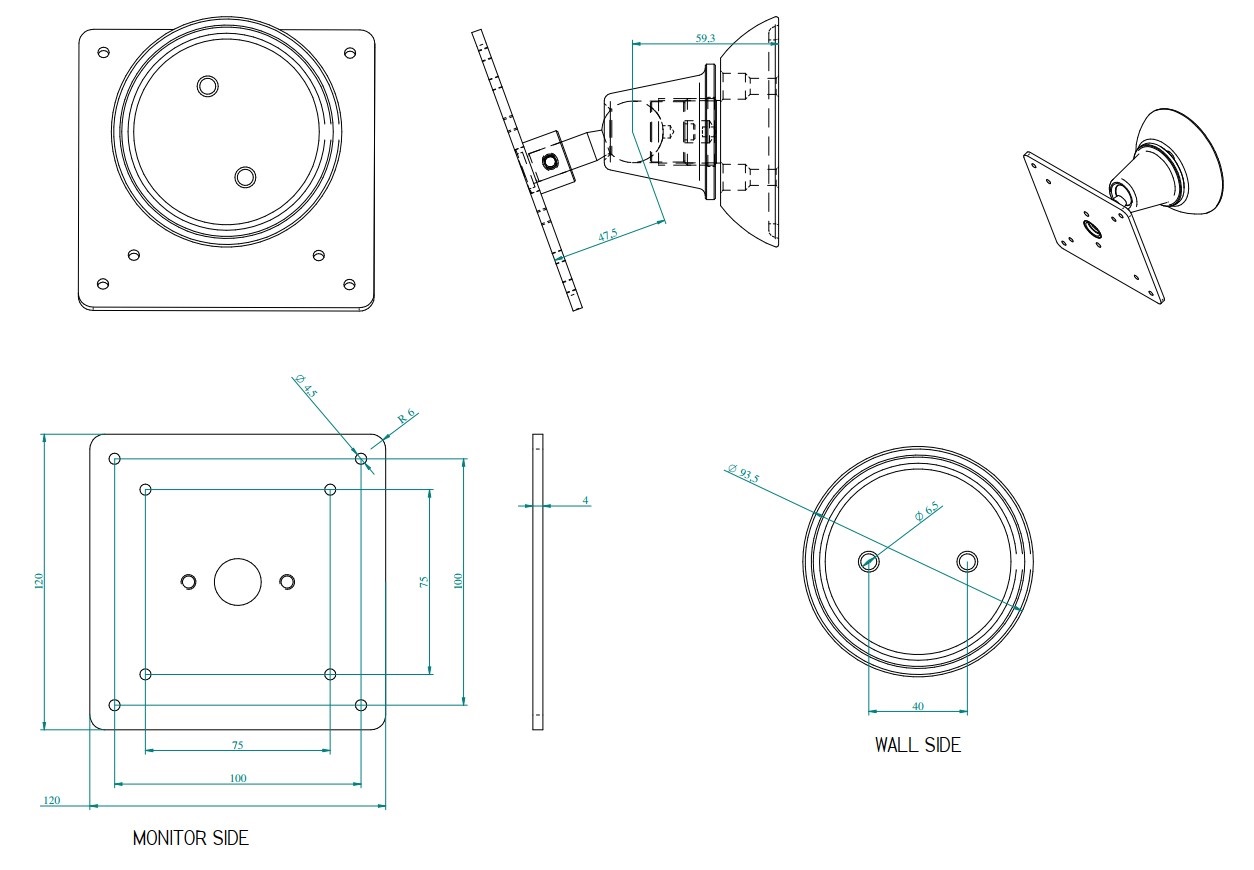

Wall-mountable monitor bracket made of nylon. Plate for monitor mounting, 120×120×4 mm, with 4 holes spaced 75 and 100 mm apart and Ø4.5 mm (VESA Standard mounting).The monitor’s orientation (±25°) is adjusted via the central body of the bracket by tightening it with the provided tool. Wall anchoring of the bracket can be done using two Ø4.5 mm holes, positioned on the rear flange with a diameter of Ø95 mm.
This bracket is compatible with all LCD/TFT monitors using VESA 75–100 mounting standards.

Also available in this color variant:

Nero (Cod: 14945)

DOWNLOAD PDF

Request a quote

All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.

TECHNICAL SPECIFICATIONS

Net weight	0,98 kg
Closed Length	105 mm
Max Load	5 kg
Tilt angle	50°
Thickness	4 mm
Material	ni (structure)
Treatments	White
VESA	up to 100-100
