Name: Controlled tilting system for speaker on stand - Euromet
SKU: 07897

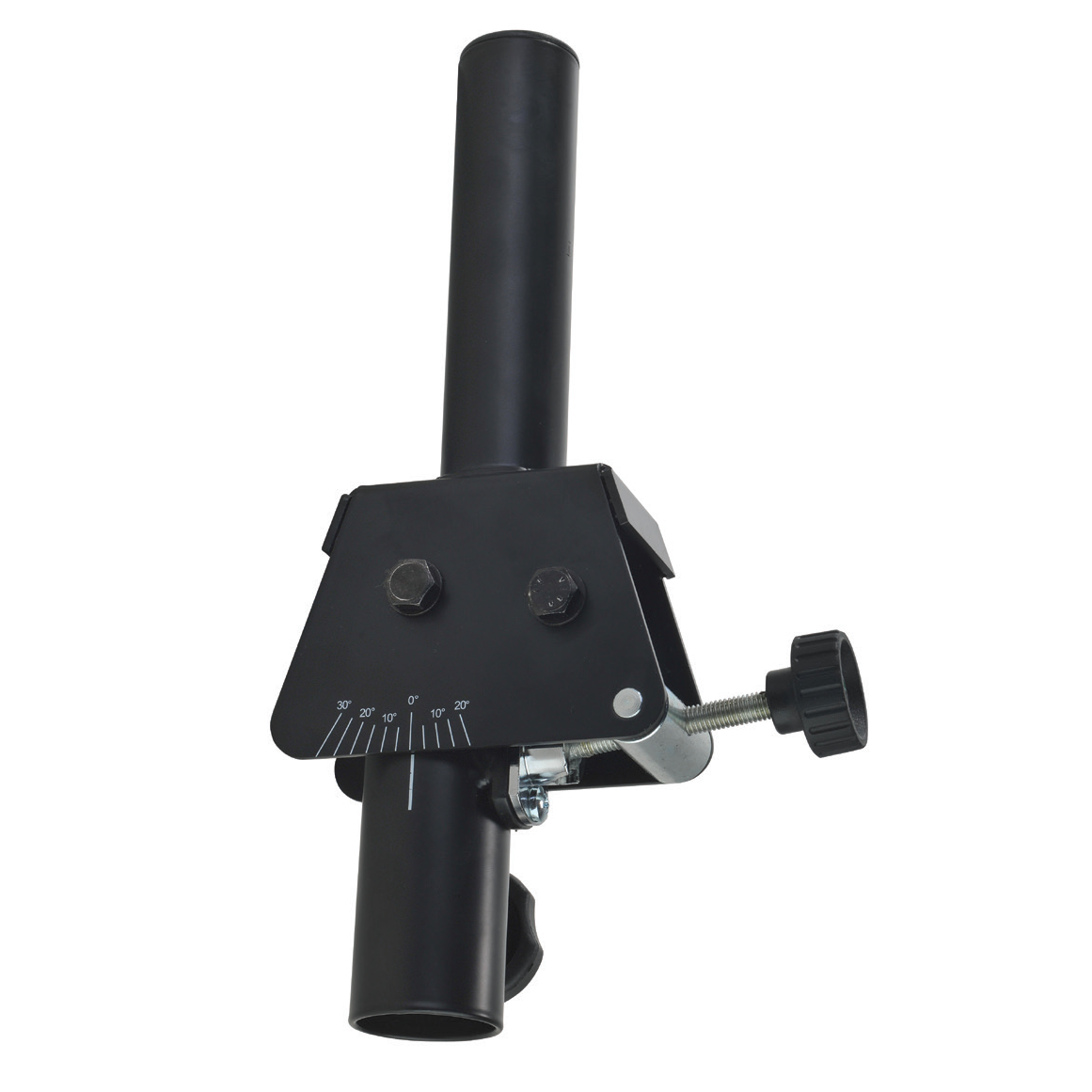

Controlled tilting system for speaker on stand

This system, designed by Euromet, allows you to mechanically control, by turning a handle, the tilt of the speaker mounted on the stand.

DOWNLOAD PDF

Request a quote

All EUROMET products comply with the CE marking, with particular reference to IEC 60065 section 19 and IEC 60950-1 section 4.2.1, concerning the safety of suspended loads and the anti-tip protection of floor stands.

TECHNICAL SPECIFICATIONS

Net weight	1,20 kg
Closed Length	300x80x16 mm
Max Load	40 kg
Link with	Speakers/Sp. stand
Dim. M. attachment	ø 35 mm
Dim. F. attachment	ø 36 mm
Mount Rotates	360°
Tilt angle	-5° +17°
Material	Fe
Treatments	RAL 9005

Speaker stand, aluminium, silver, nylon, H: 1040-1850 mm

P/N: 03532

Speaker stand, aluminium, silver, nylon, H: 1305-2250 mm

P/N: 03179

Loudspeaker stand, steel, galvanized, H: 1510-2510 mm

P/N: 01286

Tube to join two loudspeakers, steel, telescopic, M20 thread

P/N: 01280

Adapter for two loudspeakers, steel, distance 420 mm, Black

P/N: 01929

Loudspeaker stand, aluminium, silver, H: 1090-1830 mm

P/N: 00564

Tube to join two loudspeakers, steel, telescopic, Black

P/N: 03439

Tube to join two loudspeakers, steel, telescopic

P/N: 01282
