P/N: 09124

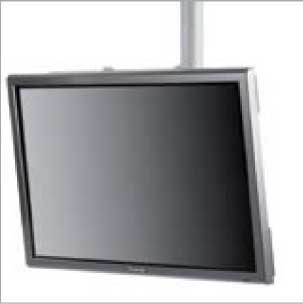

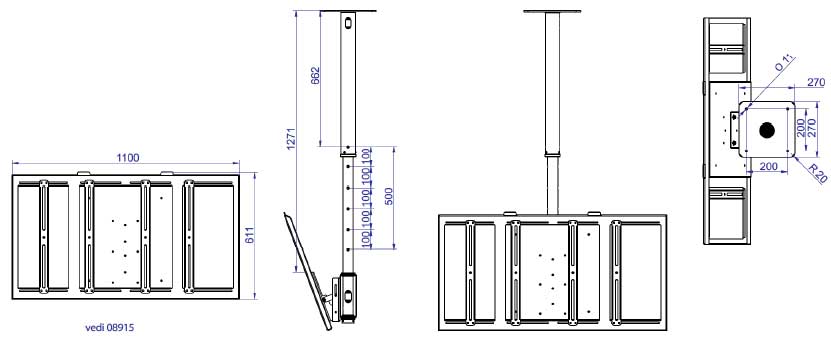

Universal ceiling mount bracket, adjustable and tiltable, steel made. The bracket consists of 3 parts: fixing system on the ceiling, controlled inclination system (Tilting System) and the Universal frame. To fix on the ceiling there are four holes Ø11mm in the flange on top of the tube. In the bottom of the tube here is the Tilting System. This kind of system allows to rotating a +20° or -10° angle of inclination, using an exagonal key in the equipment. It is also possible to rotate the system around the vertical axis for 360°. The “Maxi” frame (1100x661mm) is compatible with holes on wheelbases from 74-406mm and 594-1000mm in horizontal and from 80 to 465 in vertical. The telescopic arm grants to regulate the central part of the monitor at the height from 75 to 125cm. Its possible to adjust the height of the monitor with 10cm steps. It is necessary fo work in safetely conditions to use two M6 screws on the base of the frame. The tubes are drilled to make the cableis passage is possible inside the brqacket. Time to assemble the stand: 5 minutes.
Every EUROMET product is manufactured in conformity with regulatory standards CE, regarding IEC 60065 paragraph 19 and IEC 60950-1 paragraph 4.2.1, inherant to the security of suspended loads and anti-tipping for monitor supports.
